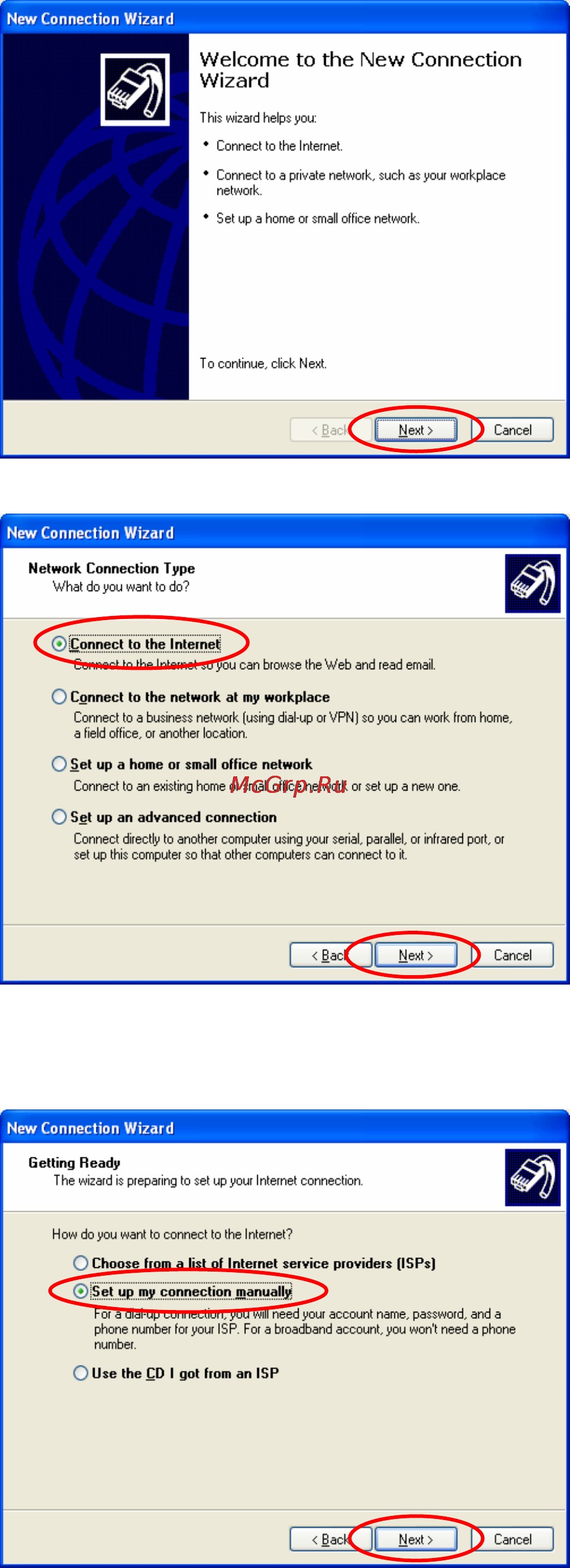

3. Click Next when Welcome to the New

Connection Wizard screen appears.

4. Choose “Connect to the Internet” and then

click Next.

5. Choose “Set up my connection manually” and

then click Next.
