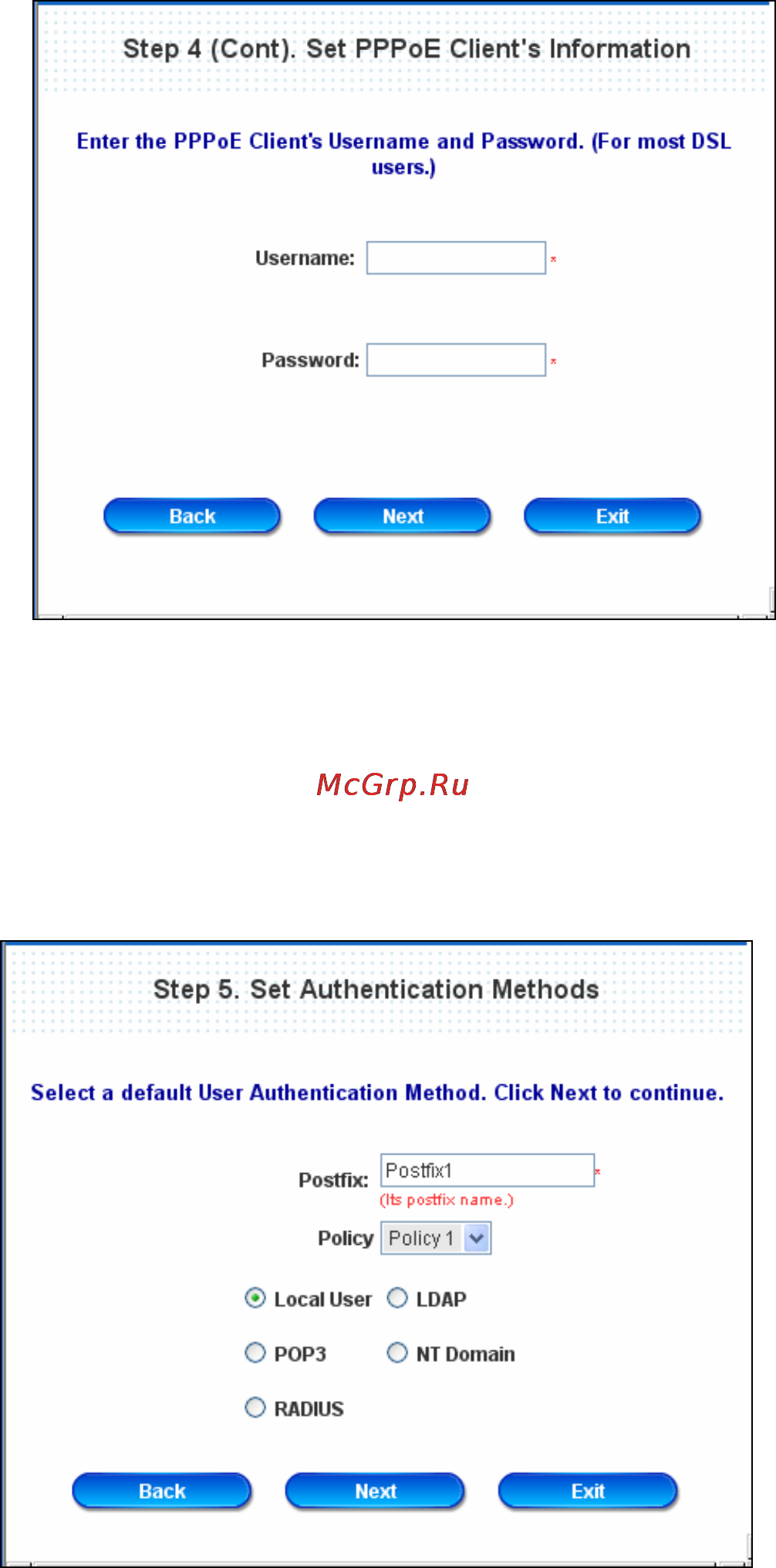

¾ PPPoE Client: Set PPPoE Client’s Information

Enter the “Username” and “Password” provided by the ISP.

Click Next to continue.

y Step 5. Set Authentication Methods

Set the user’s information in advance. Enter an easily identified name as the postfix name in the Postfix

field (e.g. Local), select a policy to assign to, and choose an authentication method.

Click Next to continue. Different information has to be provided for each kind of authentication method:
