20

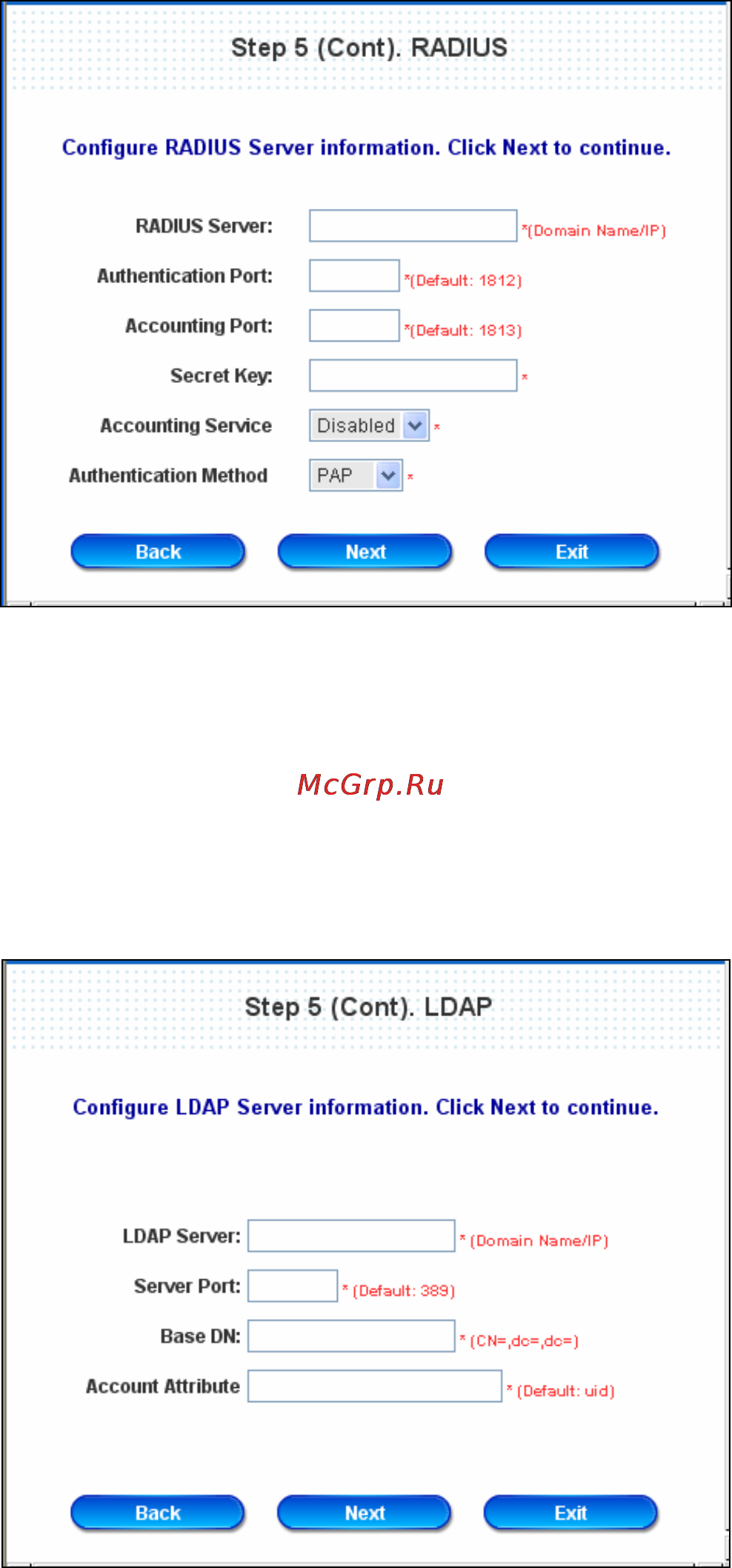

¾ RADIUS User: RADIUS
Enter RADIUS server IP/Domain Name, authentication port, accounting port and secret key. Then
choose to enable accounting service or not, and choose the desired authentication method.
Click Next to continue.
¾ LDAP User: LDAP
Configure external LDAP user data base here. Enter the “LDAP Server”, “Server Port”, “Base DN”
and “Account Attribute”.
Click Next to continue.
