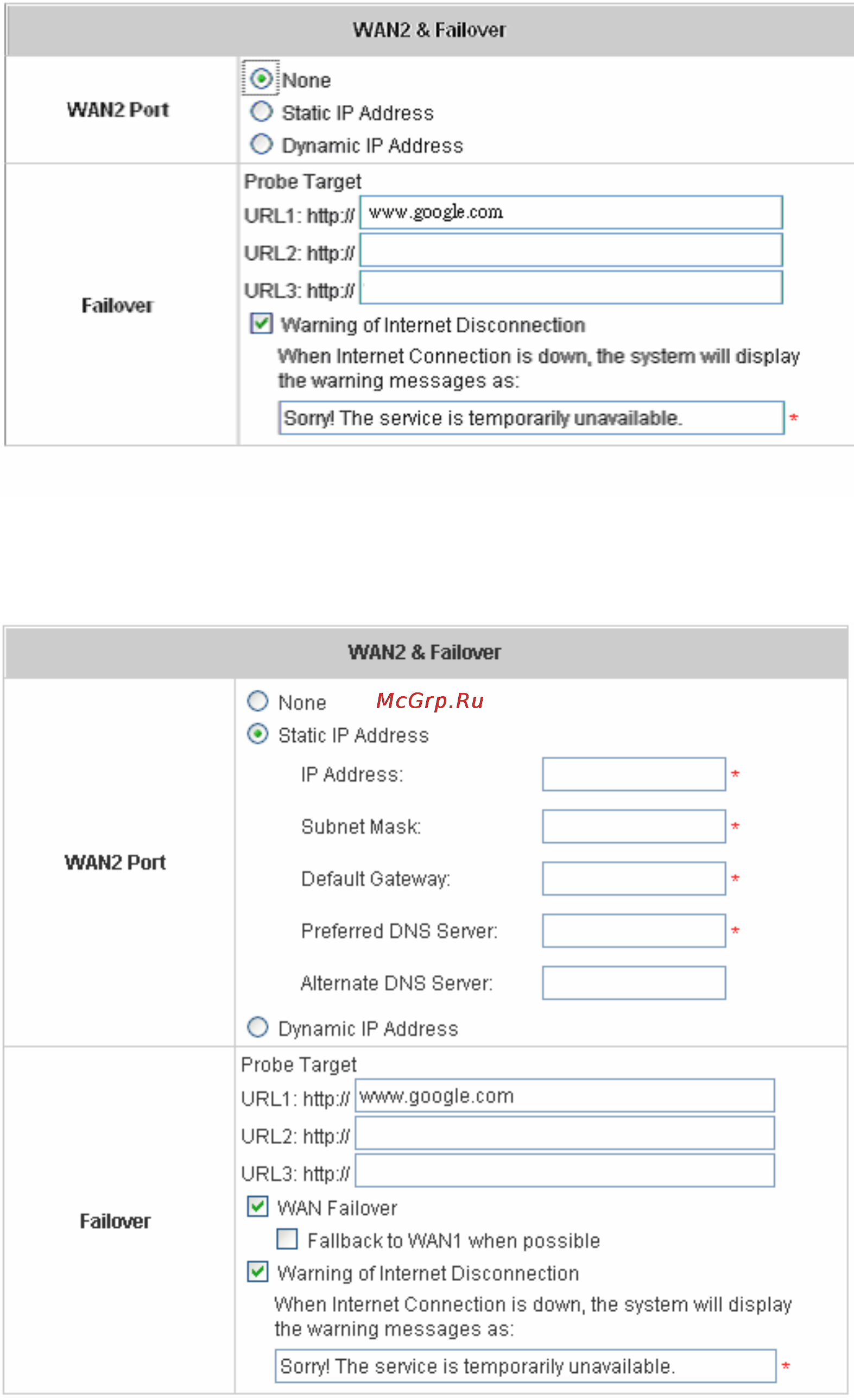

y None: The WAN2 Port is disabled. Up to three URLs can still be entered. Check “Warning of Internet

Disconnection” to detect the WAN1 port connection status.

y Static IP Address: Specify the IP Address, Subnet Mask and Default Gateway of WAN2 Port, which should be

applicable for the network environment. Up to three URLs can be entered. Check “Warning of Internet

Disconnection” to work with the WAN Failover function.

If WAN Failover function is enabled, when WAN1 connection fails, the traffic will be routed to WAN2
