56
y Class Attribute: Class attribute sent from the RADIUS server.
y Policy: Select the mapping policy of this class attribute.
y Remark: Add some description if needed.
4.2.1.4 Authentication Method – LDAP

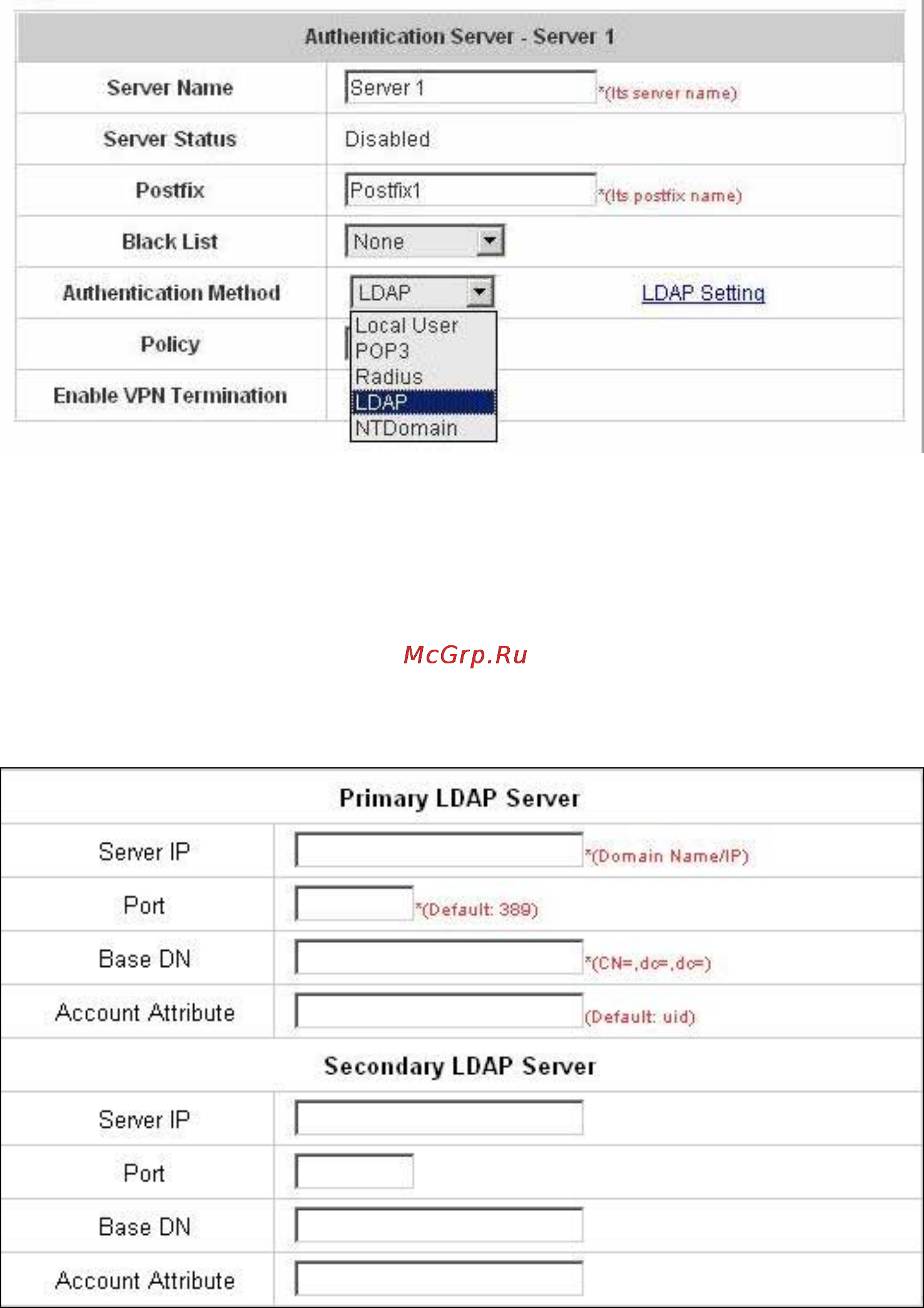

Choose “LDAP” in the Authentication Method field, the hyperlink beside the pull-down menu will become “LDAP
Setting”.
When POP3, Radius, LDAP or NTDomain is selected from the drop-down memu, “Enable VPN Termination” will
show up. Check “Enable VPN Termination” to enable this function or not. Click the hyperlink for further
configuration. Enter the related information for the primary server and/or the secondary server (the secondary server
is not required). The blanks with red star are necessary information. These settings will become effective
immediately after clicking the Apply button.
