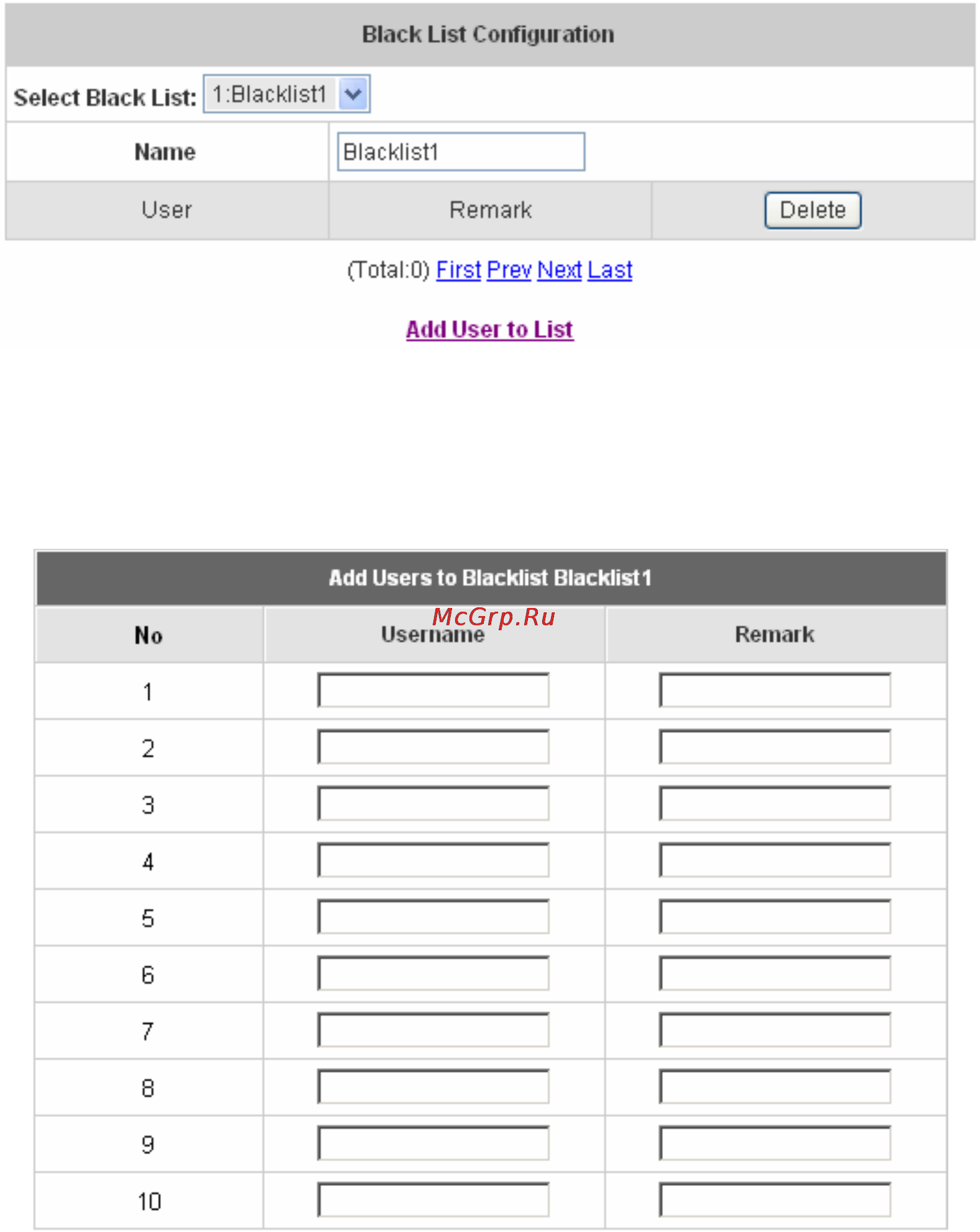

can use the pull-down menu to select the desired black list.

y Select Black List: There are 5 lists to select from for the desired black list.

y Name: Set the black list name and it will show on the pull-down menu above.

y Add User to List: Click the hyperlink to add users to the selected black list.

After entering the usernames in the “Username” blanks and the related information in the “Remark” blank (not

required).
