75

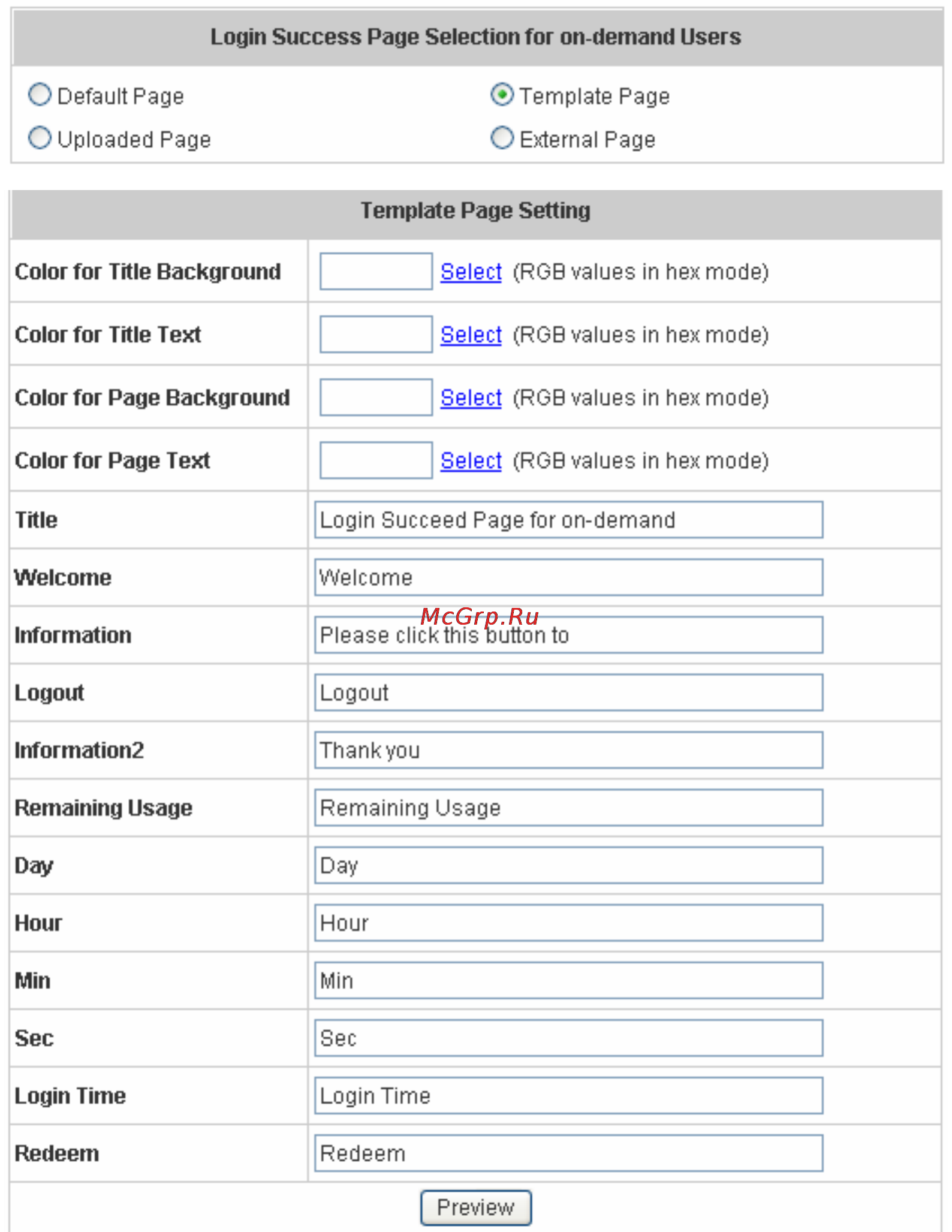

b. Choose Template Page to make a customized login success page for On-Demand here. Click Select to
pick up a color and then fill in all of the blanks. You can click Preview to see the result first.
c. Choose Uploaded Page and you can get the Login Success Page Section for On-Demand Users.
Click the Browse button to select the file for the login success page for On-Demand. Then click Submit
to complete the upload process.
