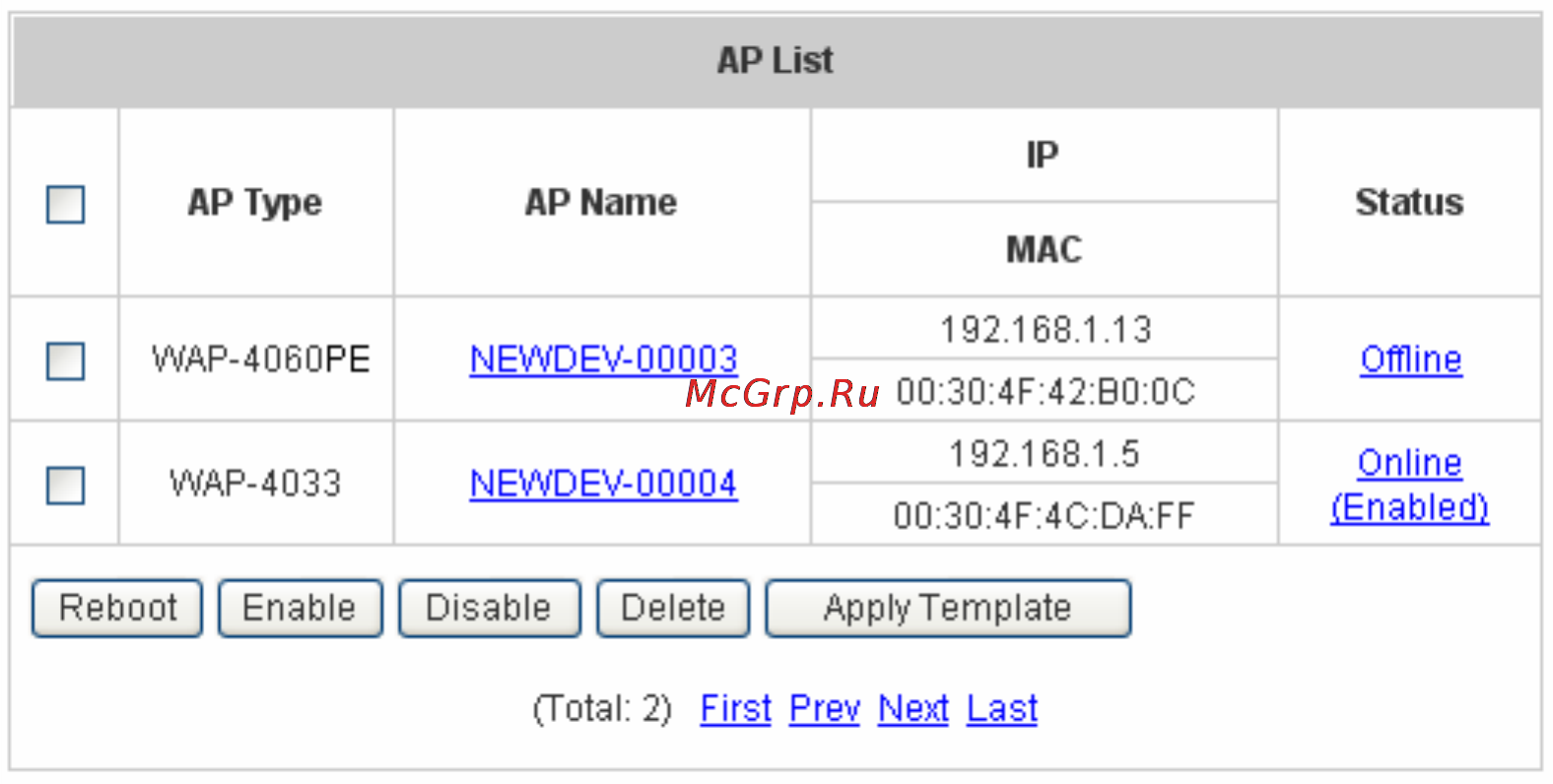

After adding 2 APs:

y Status

After clicking the hyperlink of Status, the basic information of the AP including AP Name, AP Type, LAN MAC,

Wireless LAN MAC, Up Time, Report Time, SSID, Number of Associated Clients and Remark. In the

bottom of this page, there are other hyperlinks for further related information: System Status, LAN Status,

Wireless LAN Status, Access Control Status, and Associated Client Status.
