Daikin REMQ16PY1 [433/491] Power supply
![Daikin REMQ8PY1 [433/491] Power supply](/views2/1713582/page433/bg1b1.png)
:LULQJ'LDJUDPVIRU5HIHUHQFH 6L(1%(
$SSHQGL[
);.40$0$0$0$9(
3D039564C

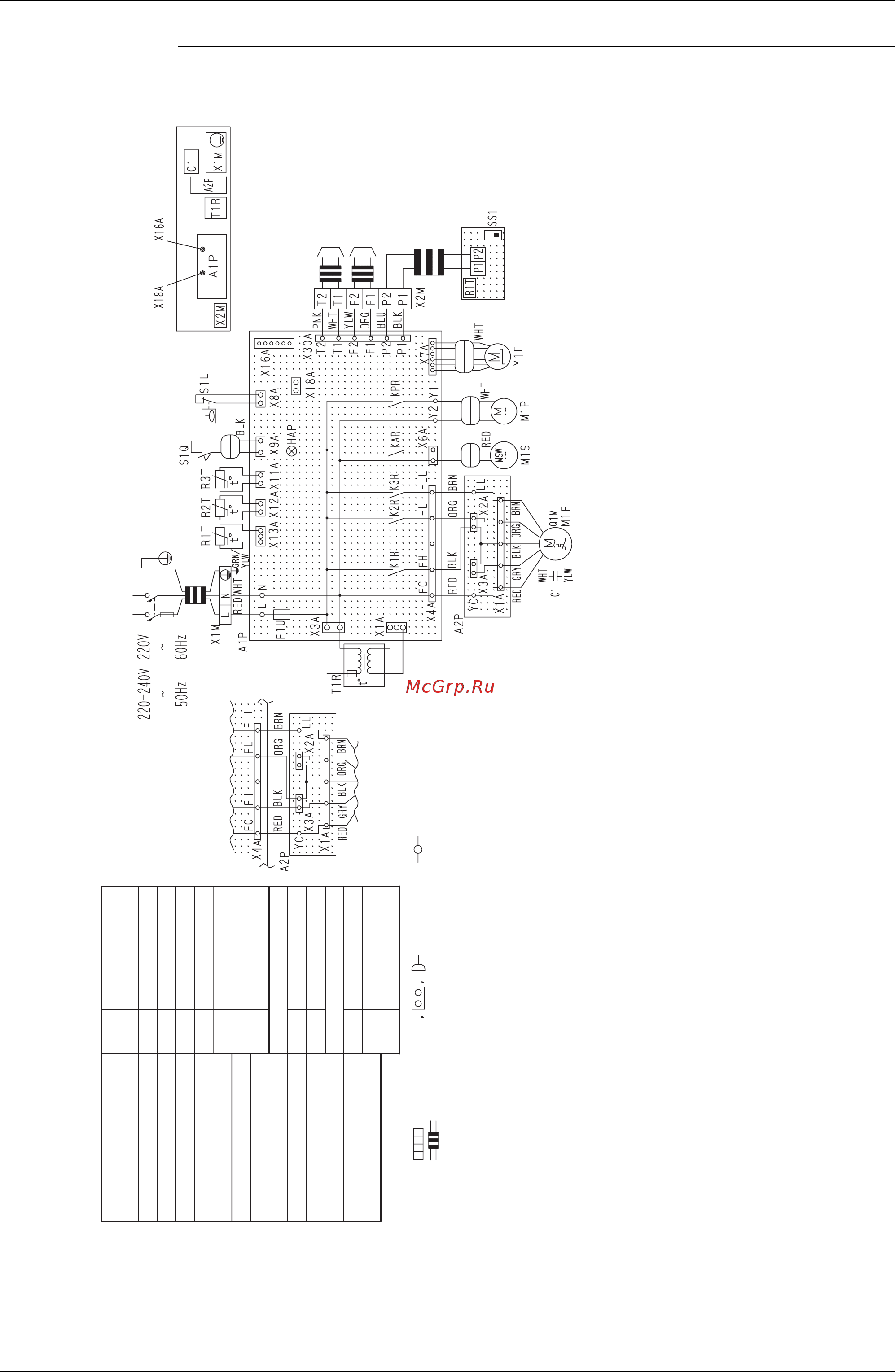

INDOOR UNIT
A1P Printed circuit board
A2P Terminal board
C1 Capacitor (M1F)
F1U Fuse (훾, 5A, 250V)
HAP Light emitting diode
(service monitor-green)
K1R-K3R Magnetic relay (M1F)
KAR Magnetic relay (M1S)
KPR Magnetic relay (M1P)
M1F Motor (Indoor fan)
M1P Motor (Drain pump)
M1S Motor (Swing flap)
Q1M Thermo switch
M1F) embedded)
1. :Terminal block : Connector : Terminal
2. : Field wiring
3. In case using central remote control, connect it to the unit in
accordance with the attached instruction manual.
4. When connecting the input wires from outside, forced off or on/off
control operation can be selected by remote control.
In details, refer to the installation manual attached the unit.
5. In case high E.S.P. operation, change over the wiring connection from
X2A to X3A.
6. Symbols shows as follows:
PNK:PINK WHT:WHITE YLW:YELLOW ORG:ORANGE BLU:BLUE BLK:BLACK
RED:RED BRN:BROWN GRY:GRAY
7. Use copper conductors only
NOTES
Note 4
Input from outside
Note 3
Transmission wiring
central remote control
Wired remote control
(Optional accessory)
Electric parts box
Power supply
Note-5
R1T Thermistor (Air)
R2T-R3T Thermistor (Coil)
S1L Float switch
S1Q Limit switch (Swing flap)
T1R Transformer (220-240V/22V)
X1M Terminal block (Power)
X2M Terminal block (Control)
Y1E Electonic expansion
valve
WIRED REMOTE CONTROL
R1T Thermistor (Air)
SS1 Selector switch (Main/Sub)
CONNECTOR FOR OPTIONAL PARTS
X16A Connector (Adapter for wiring)
X18A Connector (Wiring adapter
for electorical appendices)
