2.3.3 ICA-H651 Installation

Wall Mount

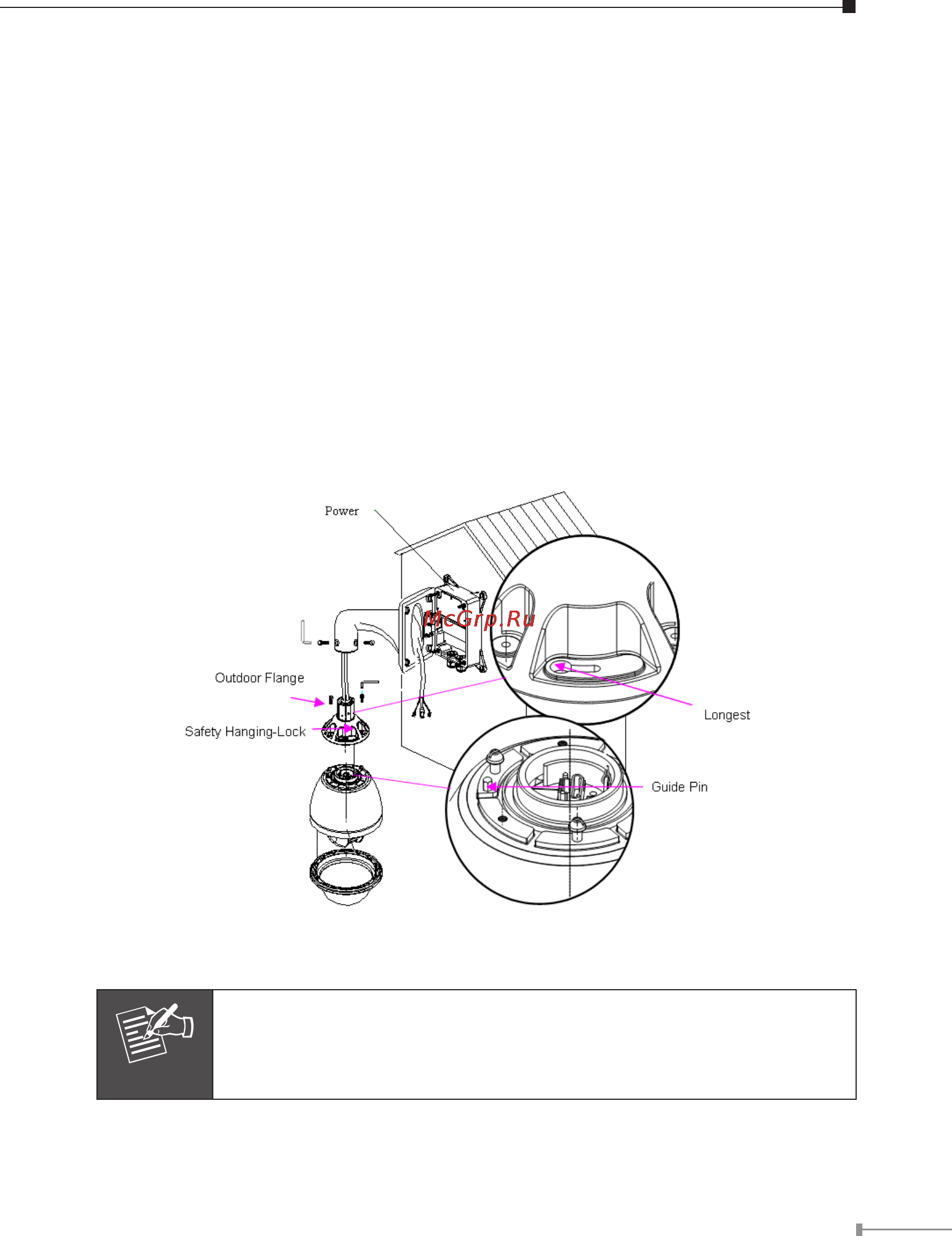

1. Disassemble the Outdoor Flange and dome housing with wrench. Mount the

dome housing as gure.

2. Mount the power box on a solid wall. Mount the wall bracket on the power box.

3. Fix the wall bracket to the outdoor ange with screws and wrench. Tighten the

screws as gure.

4. Connect all the cables as required.

5. Mount the Safety Hanging-Lock of the outdoor ange on the outdoor speed

dome. Aim the guide pin of mounting base at the longest curved chute of

outdoor ange. Fix the speed dome on the outdoor ange. Tighten the screw as

gure.

Note

Due to the IP camera is heavy, while installing, be ware of object

falling that could injure workers below or damage the IP camera

permanently.
