2.2.2 ICA-H312 Physical Details

1. RJ-45 LAN socket: Connect to PC or Hub/Switch.

For connect to 10Base-T Ethernet or 100Base-TX Fast Ethernet cabling. This

Ethernet port built N-Way protocol can detect or negotiate the transmission

speed of the network automatically. Please use CAT-5 cable to connect the

Network Camera to a 100Mbps Fast Ethernet network switch or hub.

In the LAN socket, there are two LEDs embedded:

LAN LED (green color)

This LED will be ashing while network accessing via Ethernet.

Power LED (orange color)

This LED is used to indicate whether DC power is on or not. In addition, this LED

will be ashing while the wireless accessing of the Camera.

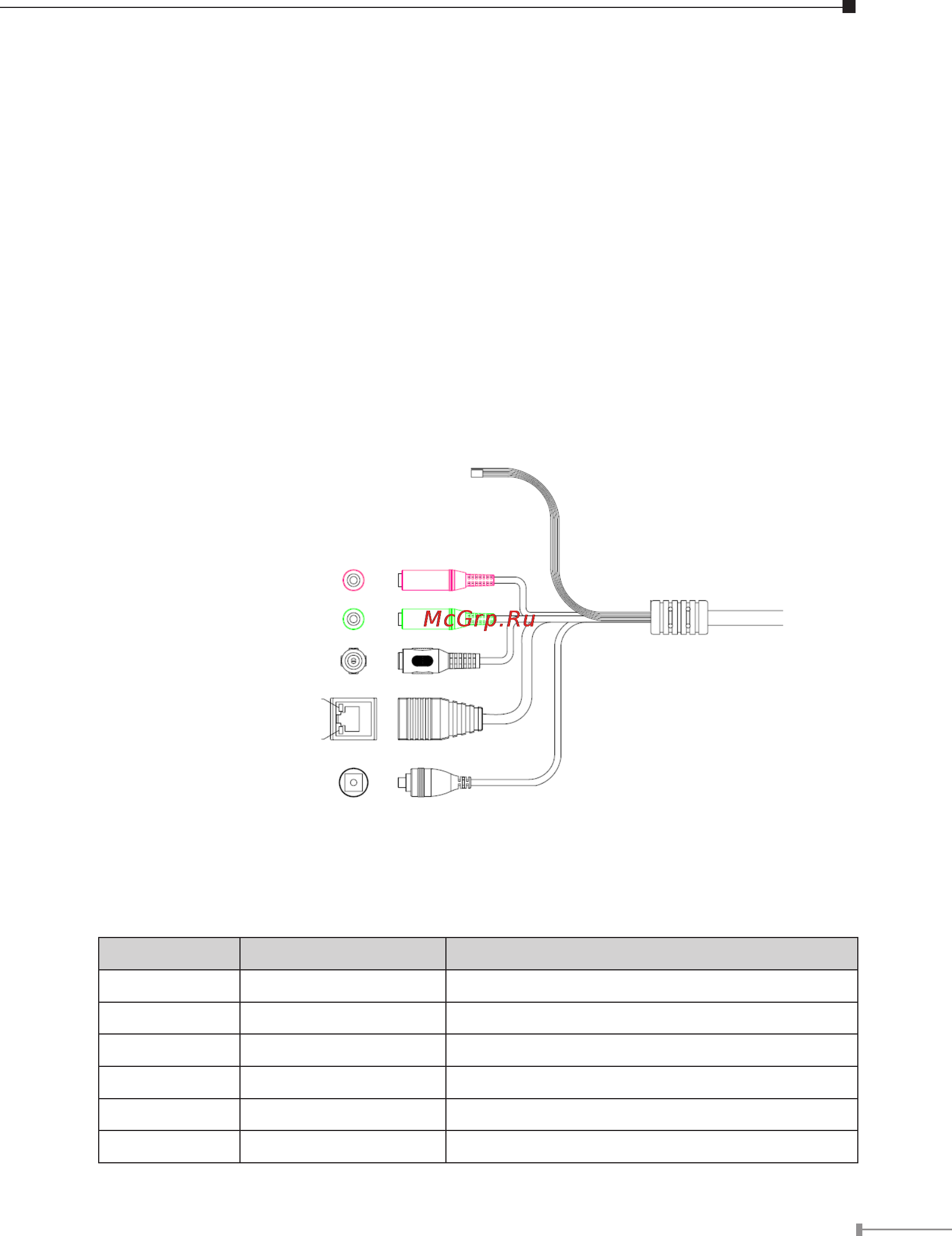

RS485 &

DI/DO

MIC in

Line out

Power Jack

Reset Button

RJ45

2. RS-485: Connect to a local keyboard controller.

DI/DO: Connect to sensor in and alarm out devices.

Cable for I/O connectors:

Name Cable Color Function

DC 12V Brown/White DC 12V (50mA maximum)

GND Blue/White GND

D+ Purple/White RS485 data +

D- Gray RS485 data -

DI Green/White Digital signal input

DO Orange/White Digital signal output
