Planet ICA-H312 [5/16] Ica hm230 installation

Note

ONLY use package power adapter supplied with the internet.

Otherwise, the product may be damaged.

3. RJ-45 LAN Sock

The LAN socket is a RJ-45 connector for connections to 10/100Base-TX Fast

Ethernet cabling. This Ethernet port built N-Way protocol can detect or negotiate

the transmission speed of the network automatically. Please use CAT-5 cable to

connect the Network Camera to a 100Mbps Fast Ethernet network switch or hub.

4. Factory Default Reset

This button is hidden in the pinhole. Please refer to the user’s manual for more

information.

2.1.3 ICA-HM230 Installation

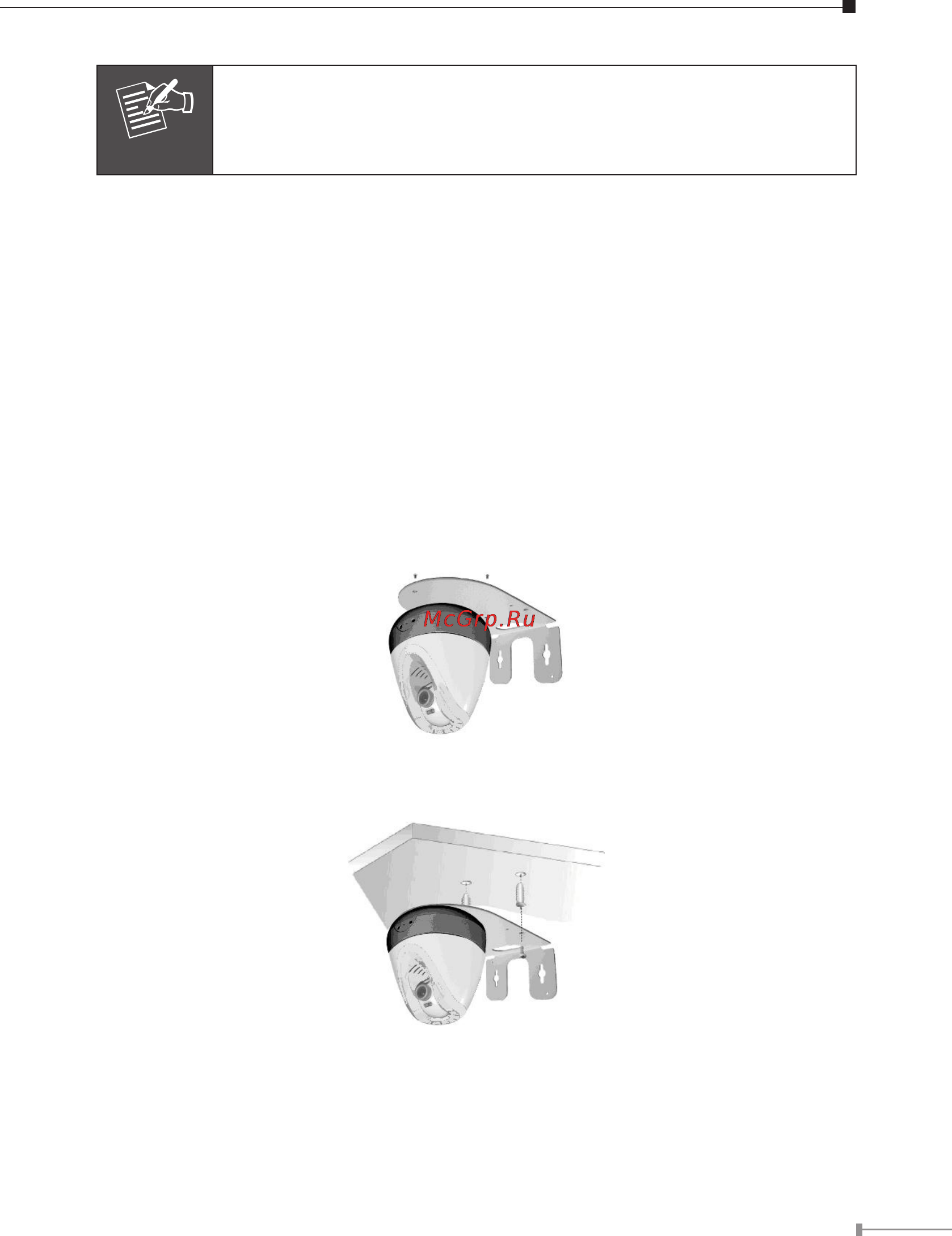

Ceiling Mount

1. Fix the camera to L-type bracket with the two supplied screws.

2. Fix the bracket and camera to the ceiling using two holly wall anchors and

screws.

3. Connect the LAN cable to a switch or hub. When this switch/hub is a PoE device,

you can ignore the next step.

4. Connect DC-Jack to the with the bundle power adapter power source.

5. Done.
