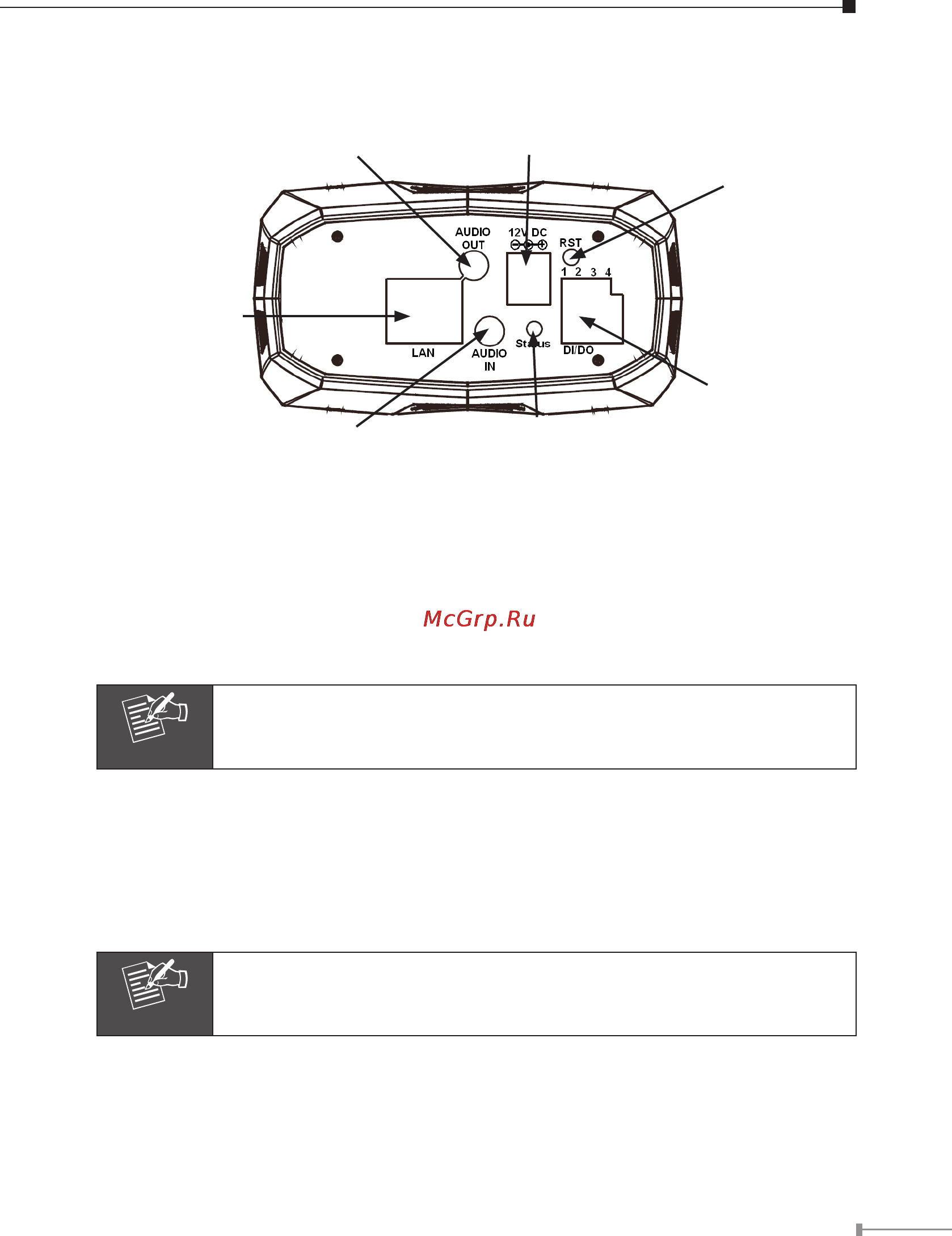

2.2.2 Rear View

DI/DO

Connector

Factory

Default Reset

DC Power Jack

Audio Output Jack

LAN Socket

External MIC Jack

Power & LAN LED

Audio Output Jack

Audio-out Jack allows this device to output audio for two-way communication or

alerting sound.

DC Power Jack

The input power is 12VDC.

Note

Only use the power adapter supplied with ICA-120. Otherwise, the

product may be damaged.

LAN Socket

The LAN socket is a RJ-45 connector for connections to 10Base-T Ethernet or

100Base-TX Fast Ethernet cabling. This Ethernet port built N-Way protocol can

detect or negotiate the transmission speed of the network automatically. Please use

Category 5 “straight through” cable to connect the Network Camera to a 100Mbps

Fast Ethernet network switch or hub.

Note

In case you need to connect the device to PC or notebook directly,

you should use “cross-over” cable instead.

Factory Default Reset

This button is hidden in the pinhole. Please refer to the Appendix A in this manual

for more information.
