Planet VIP-1680 [12/91] Front panel led indicators rear panels
![Planet VIP-1680 [12/91] Front panel led indicators rear panels](/views2/1071516/page12/bgc.png)

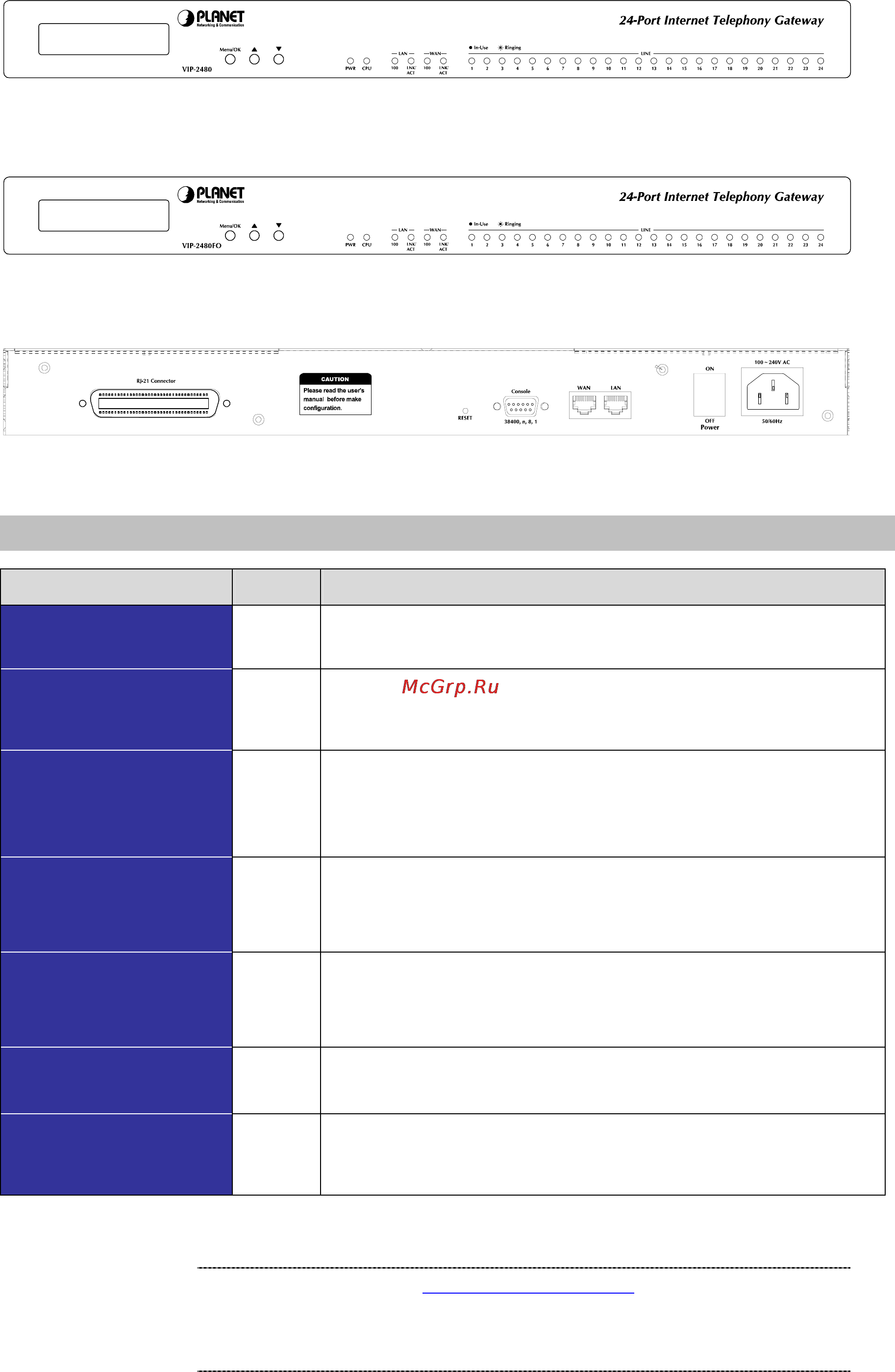

12
Front Panel of VIP-2480
Front Panel of VIP-2480FO
Rear Panel of VIP-1680/VIP-1680FO/VIP-2480/VIP-2480FO
Front Panel LED Indicators & Rear Panels
NOTE: System initialization will turn some LEDs ON for a few seconds.
Front Panel LED State Descriptions
PWR
On
Off
GW is powered ON
GW is powered Off
CPU
(VIP-880 / VIP-1680 /
VIP-2480 series)
Flashing
The system is running
WAN Port
ON
Flashing
Off
GW network connection established
Data traffic on cable network
Waiting for network connection
LAN Port
ON
Flashing
Off
LAN is connected successfully
Data is transmitting
Ethernet not connected to PC
FXS
ON
Flashing
Off
Telephone Set is Off-Hook
Ring Indication
Telephone Set is On-Hook
FXO
On
Off
Line is busy
Line is not enabled
LCD Panel
(VIP-1680/
VIP-2840 series)
On
Off
System is operation
System is Shutdown
ÍNote
The Default LAN IP is http://192.168.0.1. Press RESET button
on rear panel over 5 seconds will reset the VoIP Gateway
to this default LAN/WAN IP address and Username/Password
function.
