Planet VIP-1680 [72/91] Faq 2 busy tone learning

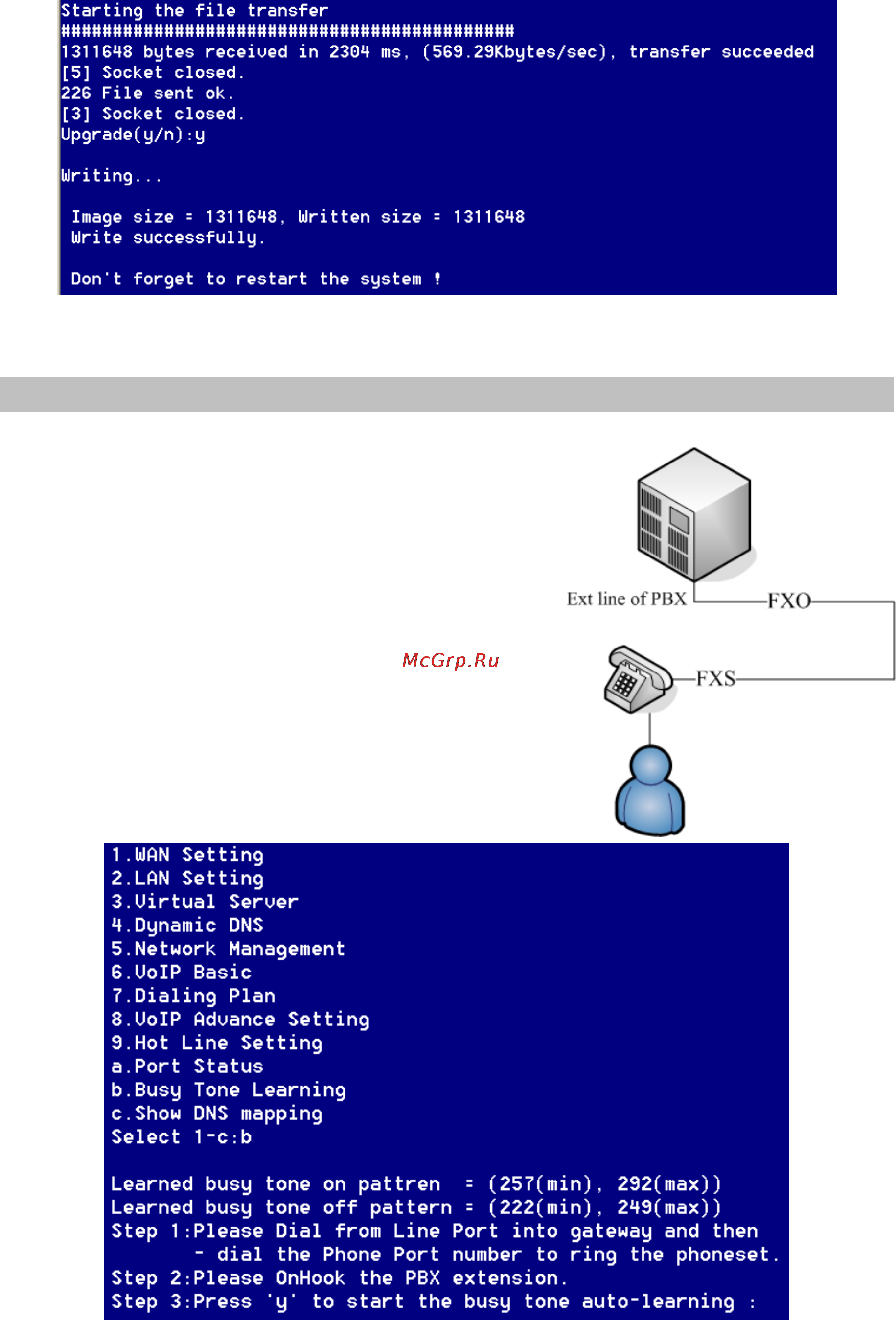

FAQ 2: Busy Tone Learning

STEP 1: Let the FXO port connect to PBX ext.

STEP 2: To dial to the FXO port from PBX another ext.

STEP 3: Hear dial tone, please dial FXS port number. When

FXS port ring, please hang up the phone.

STEP 4: At this moment, hear busy tone and also press “y” to

learning.
