Appendix SiEN34-705
176 General Information

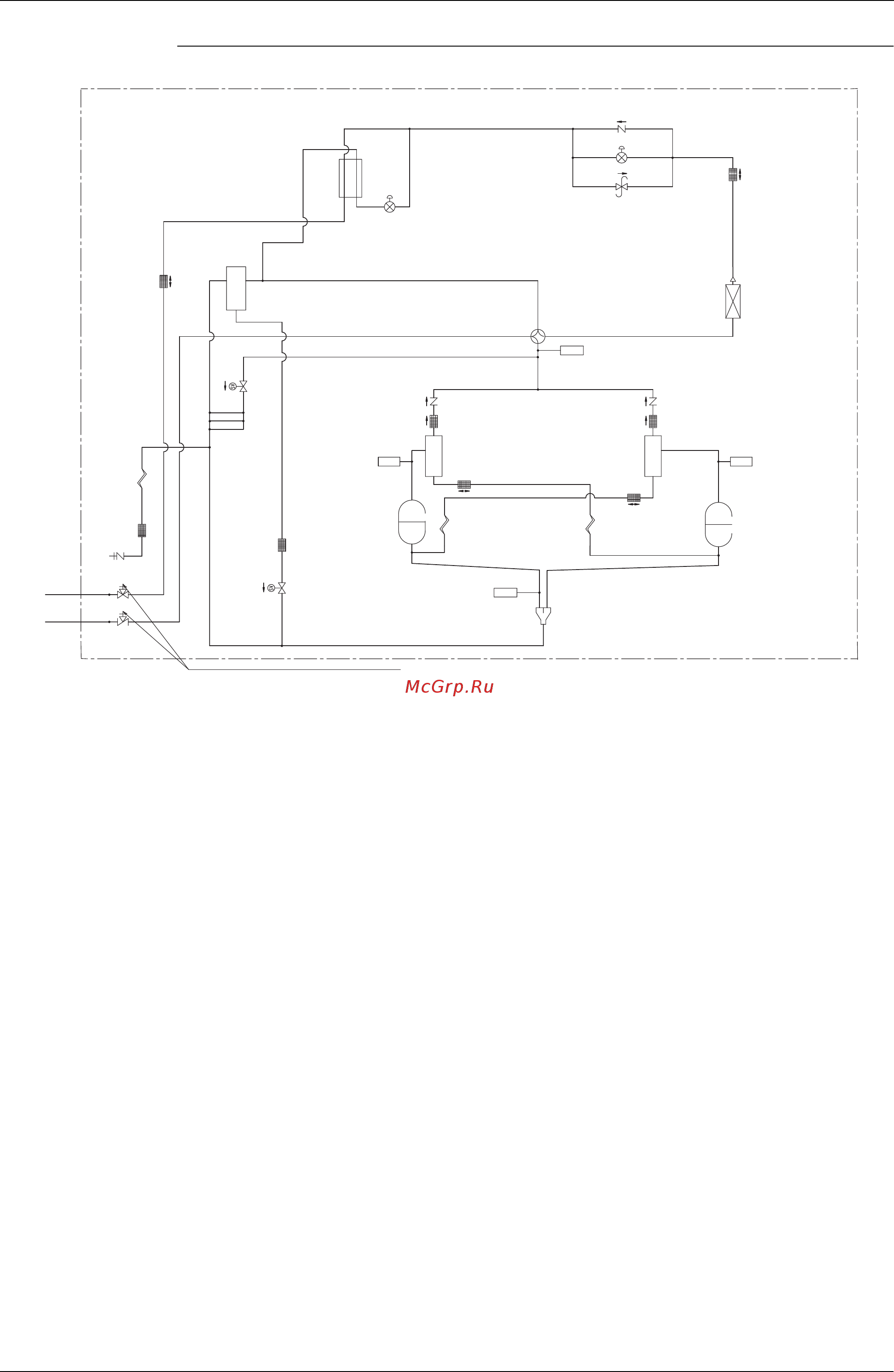

RXYQ10PYL, RXYQ12PYL
3D055766B
Filter
Filter
Filter
Filter
Filter
Filter
Stop valve (with service port ø7.9mm flare connection)
Capillary tube
Solenoid
valve
Check valve
Check valve
Accumulator
Electronic expansion valve
Four way valve
Pressure regulating valve
HPS
COMPRESSOR
STD1
SENPH
OIL
SEPARATOR
High pressure sensor
Solenoid valve
High pressure
sensor
Low pressure sensor
Capillary tube
Heat
exchanger
Filter
Filter
COMPRESSOR
INV
OIL
SEPARATOR
Check valve
Capillary tube
HPS
SENPL
High pressure
switch
Electronic expansion
valve
