Physical Details

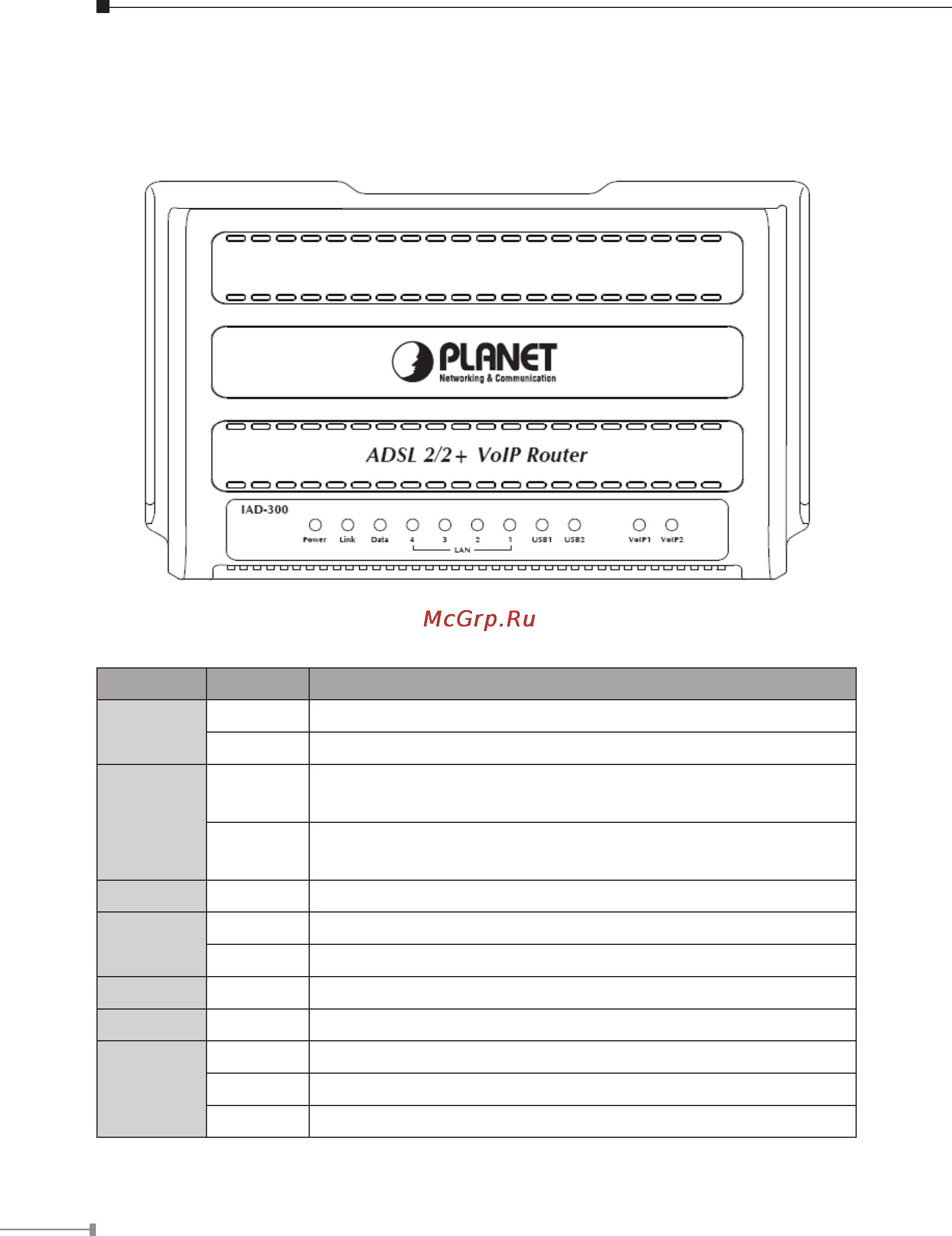

Front-mounted LEDs

Front Panel LED denition

LED State Description

ON When the router is powered on and in ready state

OFF When the router is powered off

Successful connection between ADSL modem and

telecom’s network

Modem is trying to establish a connection to telecom’s

Data Flashing Data is transferred between Router and Internet.

Flashing TX or RX activity

USB1 ON The USB Storage device connects to USB1

USB2 ON The USB Printer connects to USB2

ON VoIP Phone is registered

Flashing Phone call is off-hook

OFF VoIP Phone is not registered
