Planet IAD-300 [5/12] Rear panel port and button definition

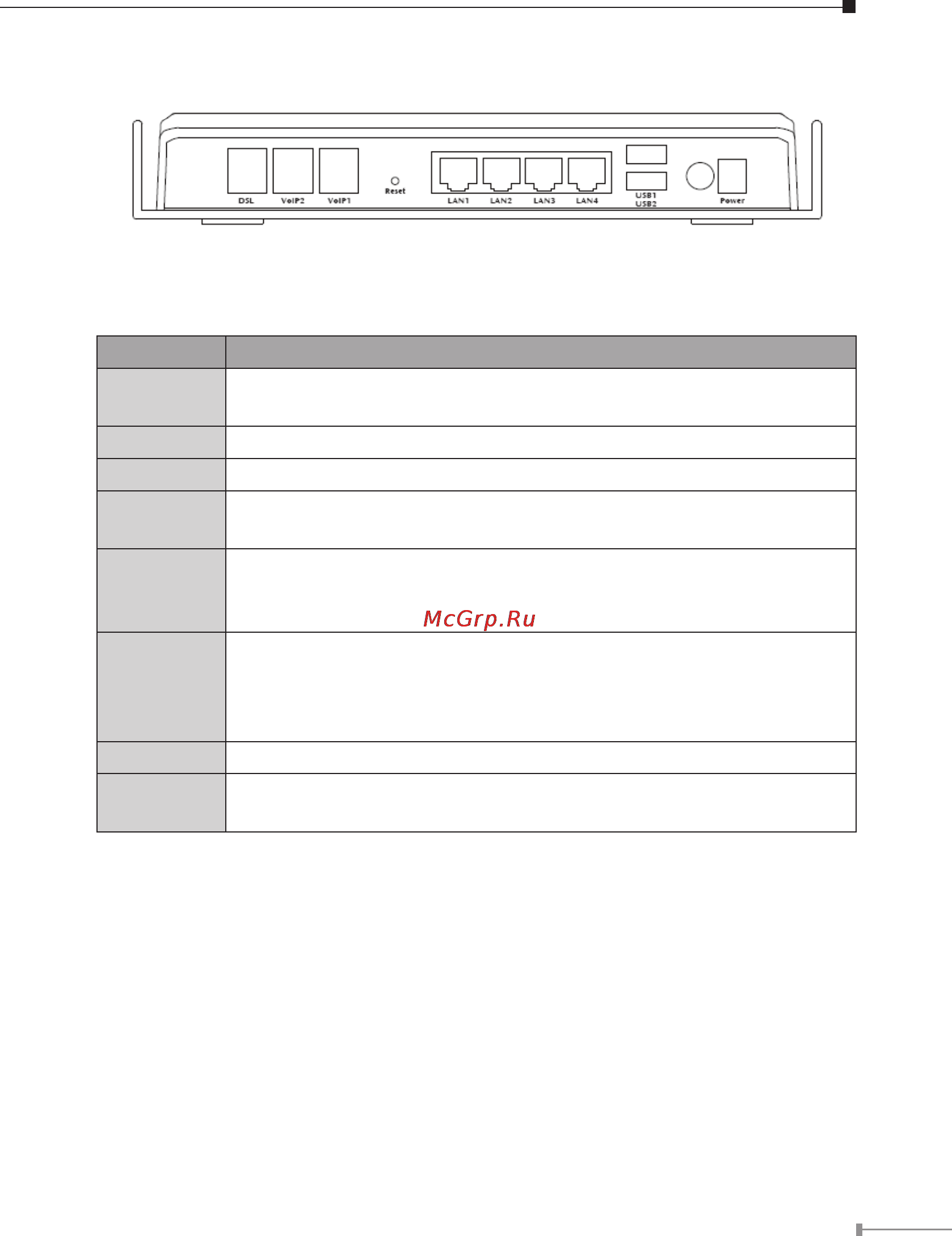

Rear Panel

Rear Panel Port and Button Denition

Connector Description

POWER

Button

The Power Button is for turn on or turn off the router.

Power Power connector with 12V DC 2A

USB1 Connect to USB Storage device to USB1 for FTP application.

USB2

Connect your Printer to USB2, the IAD-300 supports the built-in

Printer Server.

LAN 1-4

Router is successfully connected to a device through the

corresponding port (1, 2, 3, or 4). If the LED is ashing, the

Router is actively sending or receiving data over that port.

Reset

The reset button can restore the default settings of device. To

restore factory defaults, keep the device powered on and push a

paper clip into the hole. Press down the button over 5 seconds

and then release.

VoIP 1/2 Connect to any analog telephone for VoIP application.

DSL Line

The RJ-11 connector allows data communication between the

modem and the ADSL network through a twisted-pair phone wire.
