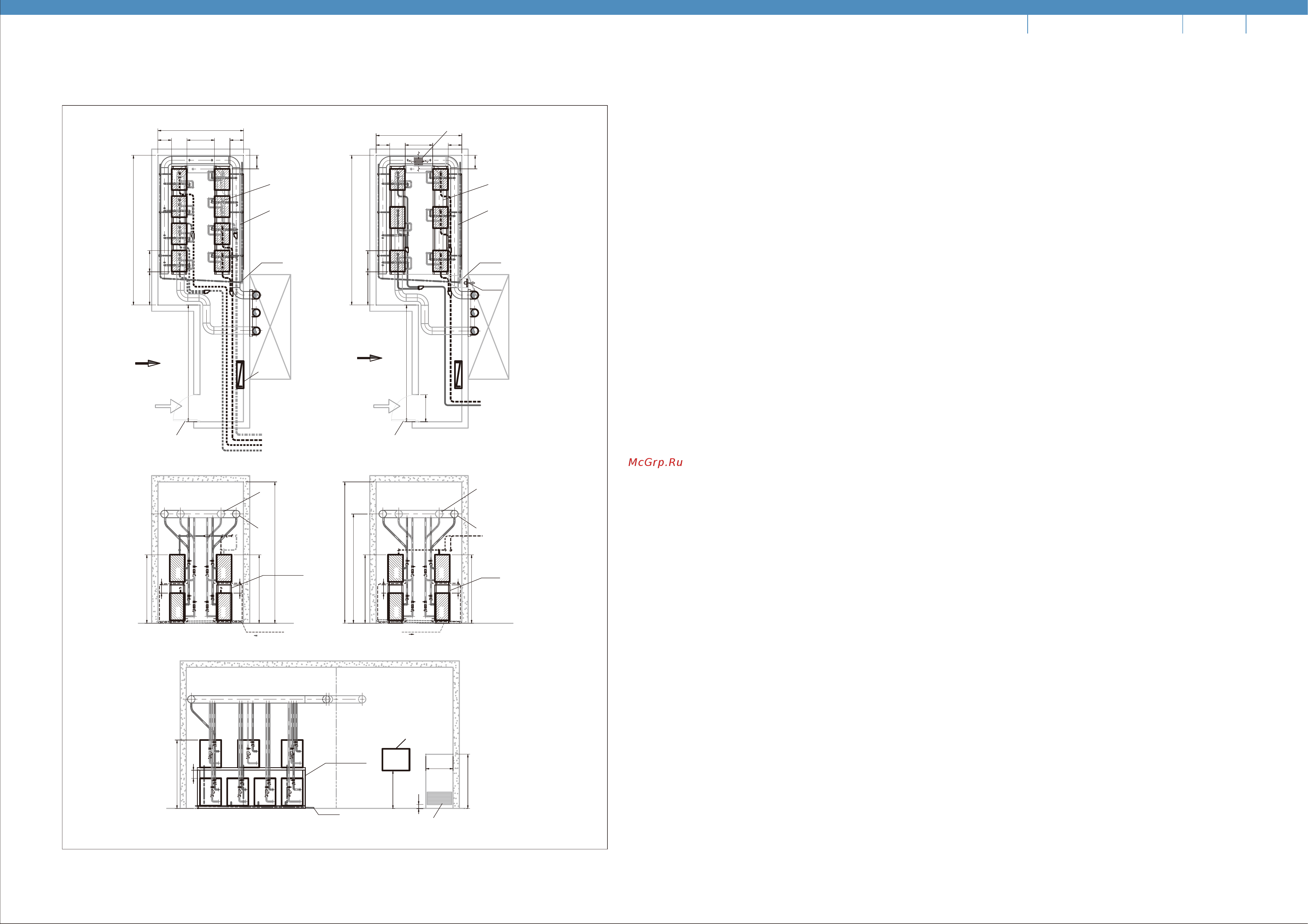

Fig-3 Outside Unit Location
PROJECT COMMENTARY
Suzlon Energy is a global wind power company based in India. Suzlon Market Share worldwide (Combined with Repower) is 8% thereby
making Suzlon the 5th largest wind turbine manufacturing group in the world.
Water Cooled-VRV system was selected due to its important feature - high COP and other key unique features like wide variety of indoor
units, low noise level, smaller external footprint of the units.
Also this Office building is separated in blocks, and it was difficult by using Central air-conditioning system (Chiller) to accomodate bulky
units & running chilled water piping in space available for installation.
This office building is also being planned as a Green Building project installed with WC-VRV system and this project is being prepared for
"LEED RATING" certification.
Consultant have opted for WC-VRV system because of its energy saving feature, high reliability and high efficiency.
ODU
ODU
30HP-FIRST FLOOR
20HP-1st FLOOR
CONTROL
PANEL
IN DIRECTION
SLOPE 1:50
UNIT DRAIN
TO NHANI TRAP
IN DIRECTION
SLOPE 1:50
UNIT DRAIN
TO NHANI TRAP
UNIT DRAIN
TO NHANI TRAP
900 MM (W) X 450 MM (H)
LOUVERS ON DOOR
900 MM (W) X 450 MM (H)
LOUVERS ON DOOR
900 MM (W) X 450 MM (H)
LOUVERS ON DOOR
COND. WATER RETURN
LINE-Ø250NB
COND. WATER RETURN
LINE-Ø250NB
COND. WATER RETURN
LINE-Ø250NB
COND. WATER RETURN
LINE-Ø250NB
20HP-1st FLOOR
20HP-GR. FLOOR
30HP
30HP-GR. FLOOR
20HP-1st FLOOR
30HP
ODU ODU
ODU ODU
ODU ODU
ODU ODU
COND. WATER SUPPLY
LINE-Ø250NB
COND. WATER SUPPLY
LINE-Ø250NB
COND. WATER SUPPLY
LINE-Ø250NB
WRITE FLOOR
COND. WATER SUPPLY
LINE-Ø250NB
EXHAUST FAN
GRILL 300x300
DUCT 350x250
SYSTEM `B' - 20 HP
SYSTEM `C' - 20 HP
UNIT LOCATION - LOWER UNIT AREA UNIT LOCATION - UPPER UNIT AREA
STRUCTURE OF
CHANNEL-100x50
STRUCTURE OF
CHANNEL-100x50
STRUCTURE OF
CHANNEL-100x50
2000
1000
1400
150
2520
300
4300
3150
5510
500
500500 1010
1220 780
TYP.
1000
4300
3150
5510
500
500500 1010
1220 780
TYP.
5200
2520
4020
2520
300
300
5200
2520
2520
300
300
BV
PG
T
S
BV
PG
T
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
T
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
T
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
T
S
BV
PG
T
S
BV
PG
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
BV
PG
S
BV
PG
T
S
ELEC. PANEL
250x1000x800HT
@1.4M LVL.
ELEC. PANEL
250x1000x800HT
@1.4M LVL.
`A'
`A'
SECTIONAL VIEW `A'
FRESH AIR
INTAKE
FRESH AIR
INTAKE
OFFICE
SUZLON Energy Ltd.
4
20 21
DESIGN DRAWING
