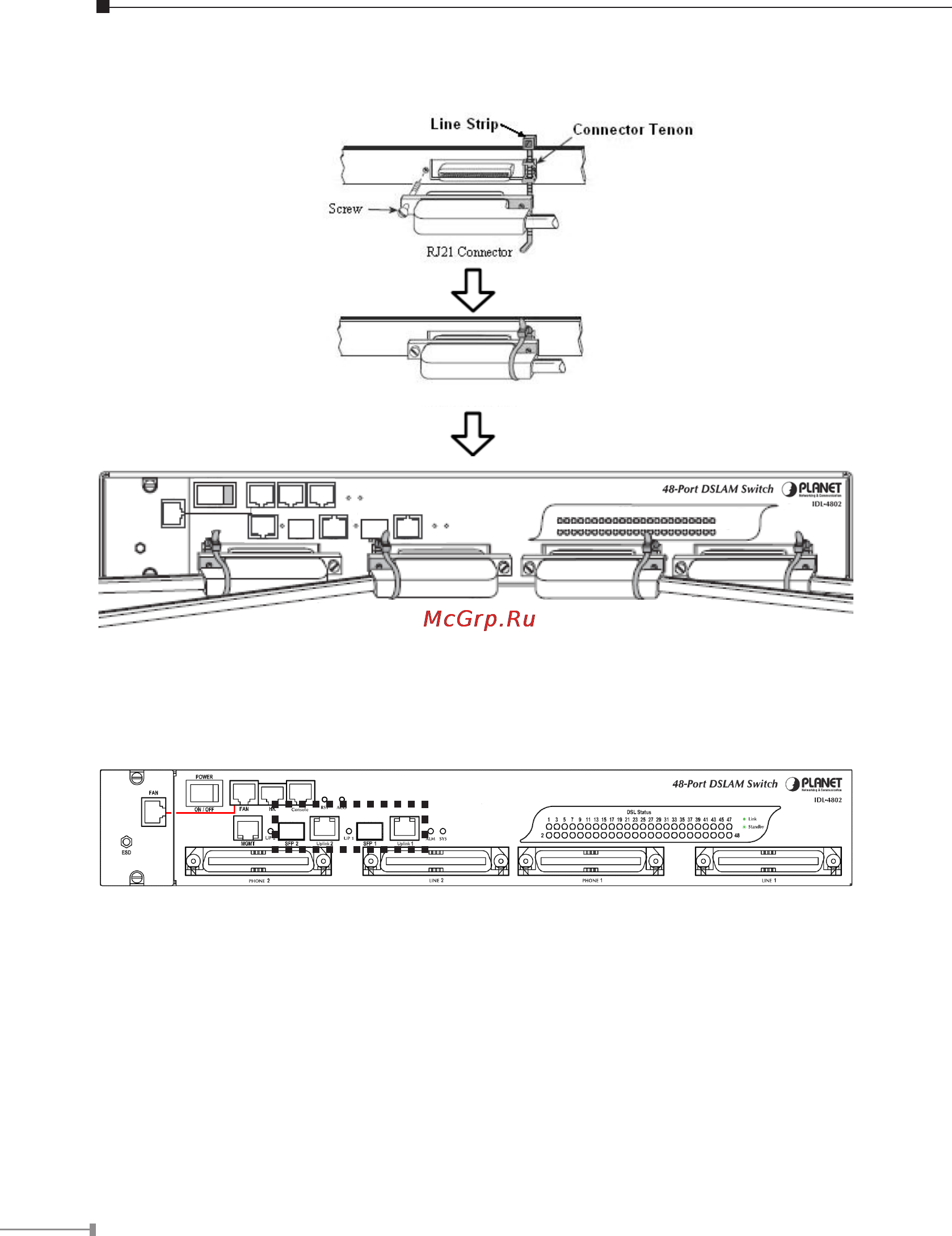

Please plug-in the RJ-21 cable with connector tenon as below gures.

4. Uplink Interfaces Connections

The system provides two types of trunk interfaces (two ports for each type). There

are electrical (RJ-45) and optical (SFP) interfaces. When both electrical and optical

ports are connected, system will automatically select the interface according to the

priority setting (Fiber rst or Copper rst).

SFP(Mini-GBIC):

Prepare a proper SFP module and install it into the optical trunk port. Then you can

connect ber optics cabling that uses LC connectors or SC connectors (with the use

of an optional SC-to-LC adapter) to the ber optics connector on the trunk port.
