Fig-1

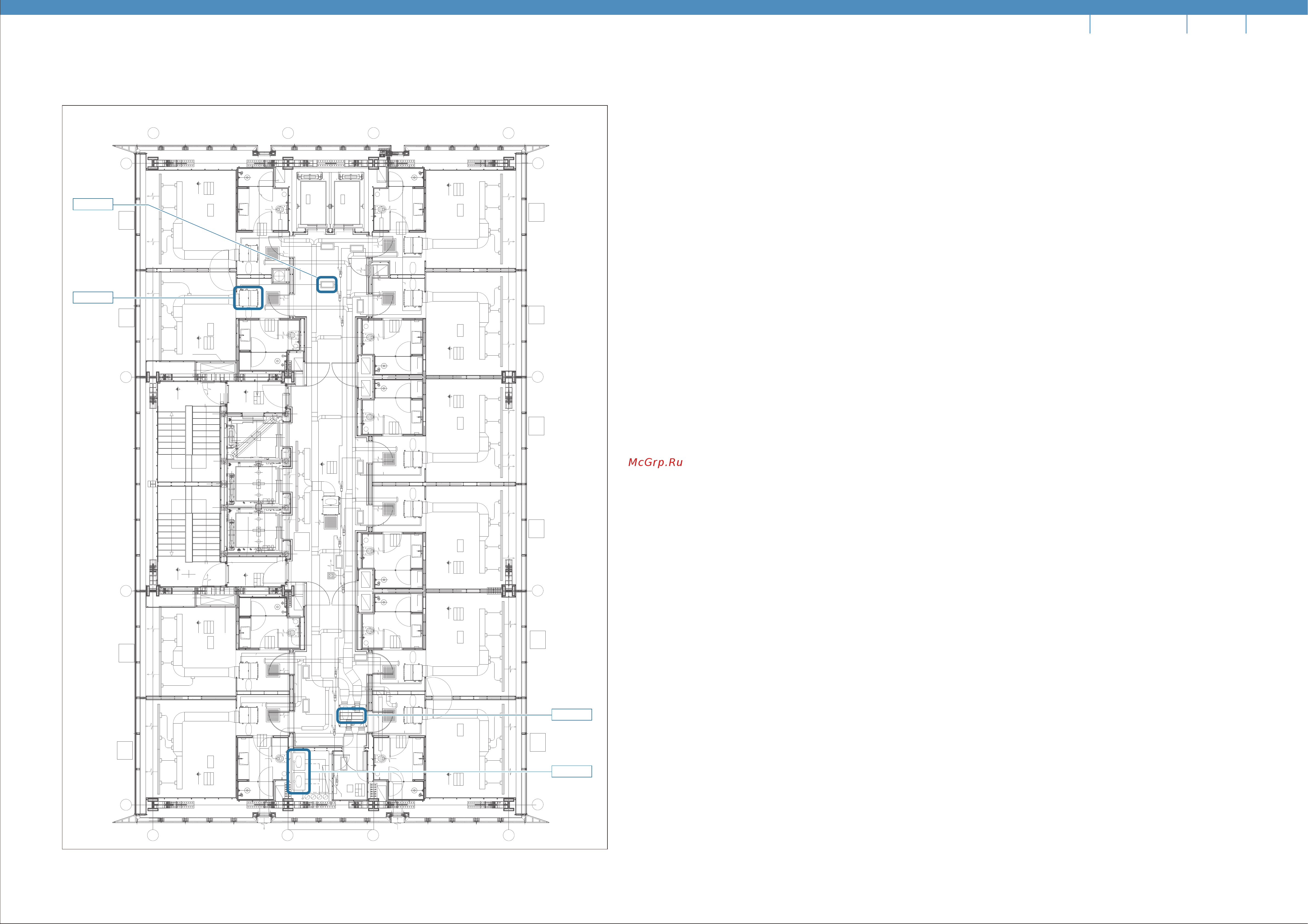

Floor Plan(7-12F)
DESIGN DRAWING
HOTEL
44 45
Hilton Hotel
12
Daikin heat recovery water-cooled VRV system was installed instead of water-cooled chiller system. Outside units and heat reclaim
ventilation indoor units are installed in each floor’s mechanical room. There are following advantages of VRV system against water-cooled
chiller system.
1. Total VRV outside units installation area for each floor is less than water-cooled chiller system installation area up to 50%.
2. VRV outside unit noise level (54 dBA) is lower than water-cooled chiller system (96 dBA).
3. VRV system power supply capacity is lower than 30% against water-cooled chiller system.
4. VRV system do not have start up current.
5. Energy saving with high COP value up to 50%.
6. VRV system needs less service people.
7. VRV system uses 20% lower boiler capacity for building’s heating capacity.
8. There is no corrosion in piping when liquid flows because of non using water with fan coils.
PROJECT COMMENTARY
AS-01 AS-02 AS-03
AS-05
!"#$%&"%'$()*(+$,(
-.-)
/0123"
!"#$%&"%'$((*4-$,(
-.-(
/0123"
!"#$%&"%'$((*5.$,(
-.-4
/0123"
!"#$%&"%'$((*5.$,(
-.-6
/0123"
!"#$%&"%'$((*64$,(
-.-7
#89!
!"#$%&"%'$()*.($,(
-.-.
/0123"
!"#$%&"%'$()*74$,(
-.)-
/0123"
!"#$%&"%'$)5*..$$,(
-.-5
#89!
!"#$%&"%'$)5*5+$,(
-.-:
/0123"
!"#$%&"%'$()*.($,(
-.-+
/0123"
!"#$%&"%'$7*:($,(
-.-7
2%!;0
!"#$%&"%'$7*:($,(
-.-6
2%!;0
!"#$%&"%'$7*:($,(
-.-4
2%!;0
!"#$%&"%'$7*:($,(
-.-(
2%!;0
!"#$%&"%'$7*46$,(
-.-5
2%!;0
!"#$%&"%'$7*67$,(
-.-)
2%!;0
!"#$%&"%'$7*67,(
-.)-
2%!;0
!"#$%&"%'$7*46$,(
-.-:
2%!;0
!"#$%&"%'$7*67$,(
-.-+
2%!;0
!"#$%&"%'$7*67$,(
-.-.
2%!;0
!"#$%&"%'$((*4-$,(
-4--
<03
! " #$%&#’( $) *
(44=).+*7
$,(
-4
;%!>9!$?"&/*<03@
$,(
-(
A%#$0/%B9
%B%!BC&
%B%!BC&
;%!>9!$%B%!BC&@
$,(
-4
;%!>9!$?"&/*<03@
7
6
4
(
9
)
>
<
7
6
4
(
9
)
>
<
7.+:5
)-
))
)( )4 )6 )7 ). )+ ): )5
4 6 7 . + : 5
)-
))
)7
()
).)+):)5
! " #$%&#’( $) *
+" , - &+
%B%!BC&@
(44=).+*7
%B%!BC&
%B%!BC&
;%!>9!$%B%!BC&@
+" , - &+
%B%!BC&@
4
2
K.K. K.K.
3
K.K.
2
AS-01 AS-02 AS-03
AS-04
AS-05
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
D(:*-.
D(+*54
DÖŞEMEDEDELİK
1740x500mm
DÖŞEMEDEDELİK
1600x500mm
700x500
ŞAFT
DÖŞEMEDEDELİK
2200x250mm
M
ELK.SAFTI
2000m3/h
VM:600x300
1000m3/h.
P:400x400
400x200
1000m3/h.
1000m3/h.
150x100
150x100
150x100
150x100
150x100
150x150
Ø127
600x300
600x300
1500x400
150x150
150x100
150x100-90m3/h.
Ø127
150x100 150x100
150x150
100m3/h
GA120
200x150
180m3/h.
300x200
540m3/h.
250x200
450m3/h.
250x150
360m3/h.
250x200
400m3/h.
300x200
500m3/h.
350x200
600m3/h.
150x100
400x200
150x100
150x100
150x100
150x100
250x150
270m3/h.
400x200
400x200
100m3/h.
KA:15x15
400x200
1000m3/h
400x200
1000m3/h
960m3/h
400x200
960m3/h
400x200
960m3/h
400x200
960m3/h
400x200
960m3/h
400x200
960m3/h
250x200
Ø150
400x200
960m3/h
400x200
960m3/h
400x200
960m3/h
400x200
1000m3/h
400x200
900m3/h
180m3/h.
350x200
640m3/h
650x450
8400m3/h.
960m3/h.
KPM:600x600
400x200
960m3/h
960m3/h.
KPM:600x600
960m3/h.
KPM:600x600
960m3/h.
KPM:600x600
960m3/h.
KPM:600x600
960m3/h.
KPM:600x600
910m3/h
90m3/h.
90m3/h.
90m3/h.
90m3/h.
150x150
90m3/h.
90m3/h.
90m3/h.
100m3/h.
100m3/h.
100m3/h.
100m3/h.
100m3/h.
100m3/h.
100m3/h.
100m3/h.
90m3/h.
Ø450
5000m3/h.
Ø150
250x200
Ø150
Ø150
Ø150
250x200
400x200 250x200400x200
Ø127
100m3/h
GA120
250x200 400x200
100m3/h
GA120
Ø127
Ø127
100m3/h
GA120
Ø127
100m3/h
GA120
Ø127
250x200400x200 250x200 400x200
Ø150Ø150 Ø150
Ø150Ø150 Ø150
Ø150 Ø150
Ø150 Ø150 Ø150 Ø150Ø150 Ø150
Ø150
200x150
200m3/h.
100m3/h
GA120
Ø127
100m3/h
GA120
Ø127
100m3/h
GA120
Ø127
960m3/h.
KPM:600x600
960m3/h.
KPM:600x600
250x200400x200
Ø150
Ø150 Ø150 Ø150
250x200 400x200
Ø150Ø150 Ø150
Ø150
250x200400x200
Ø150
Ø150 Ø150 Ø150
Ø150 Ø150 Ø150 Ø150 Ø150 Ø150 Ø150 Ø150
Ø150
Ø150
Ø150 Ø150
Ø127
100m3/h
GA120
2000m3/h
VM:600x300
1000m3/h.
P:400x400
100m3/h
GA120
960m3/h.
KPM:600x600
250x200400x200250x200 400x200
960m3/h.
KPM:600x600
90m3/h.
150x150
960m3/h.
KPM:600x600
EM:450x300
400x200
800m3/h.
450x300
Ø127
SLOTDIFUZORLER
L=2000mm.
n=2Slot
2Adet
1500x400
480m3/h 480m3/h 480m3/h 480m3/h 480m3/h 480m3/h
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
SlotDifüzör
L=2000mm.
n=2Slot
2Adet
480m3/h 480m3/h
ST-02
ST-01
ST-04
ST-03
ST-05 ST-06 ST-07 ST-08
ST-09ST-10
02
8"
8"
8"
8"
3"
02
BS-7
BS-1
BS-2
BS-4
BS-3
BS-11
BS-5 BS-6
BS-10 BS-9
BS-8
2" 2"
21/2"
SQ-50
SQ-50 SQ-50
SQ-40 SQ-40 SQ-40 SQ-40 SQ-40SQ-40
SQ-50SQ-50
DU-14/20 DU-14/20
IGH-14/20
500x500
ŞAFT
1"
1"
1" 1"
1"
1"
1"1"
1"1"
1"1"
1" 1"
1"
11/4"1"
1"1"
1"
3/8"-5/8"-1/2"
1/4"-1/2"
3/8"-5/8"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
1/4"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"-1/2"
5/8"-11/8"-7/8"
5/8"-11/8"-7/8"
3/8"-3/4"-5/8"
3/8"-5/8"-1/2"
3/8"-7/8"-3/4"
3/8"-7/8"-3/4"
3/8"-5/8"-1/2"
1/2"-11/8"-3/4"
1/2"-11/8"-3/4"
5/8"-11/8"-7/8"
1/4"-1/2"
3/8"-5/8"-1/2"
3/8"-5/8"
