PROJECT OUTLINE
Location
Application
Number of floors
Project year
Total floor area
OFFICE / COMMERCIAL COMPLEX
Shangyu, China
Office / Commercial complex
50F + B2F
2011
120,000 m
2

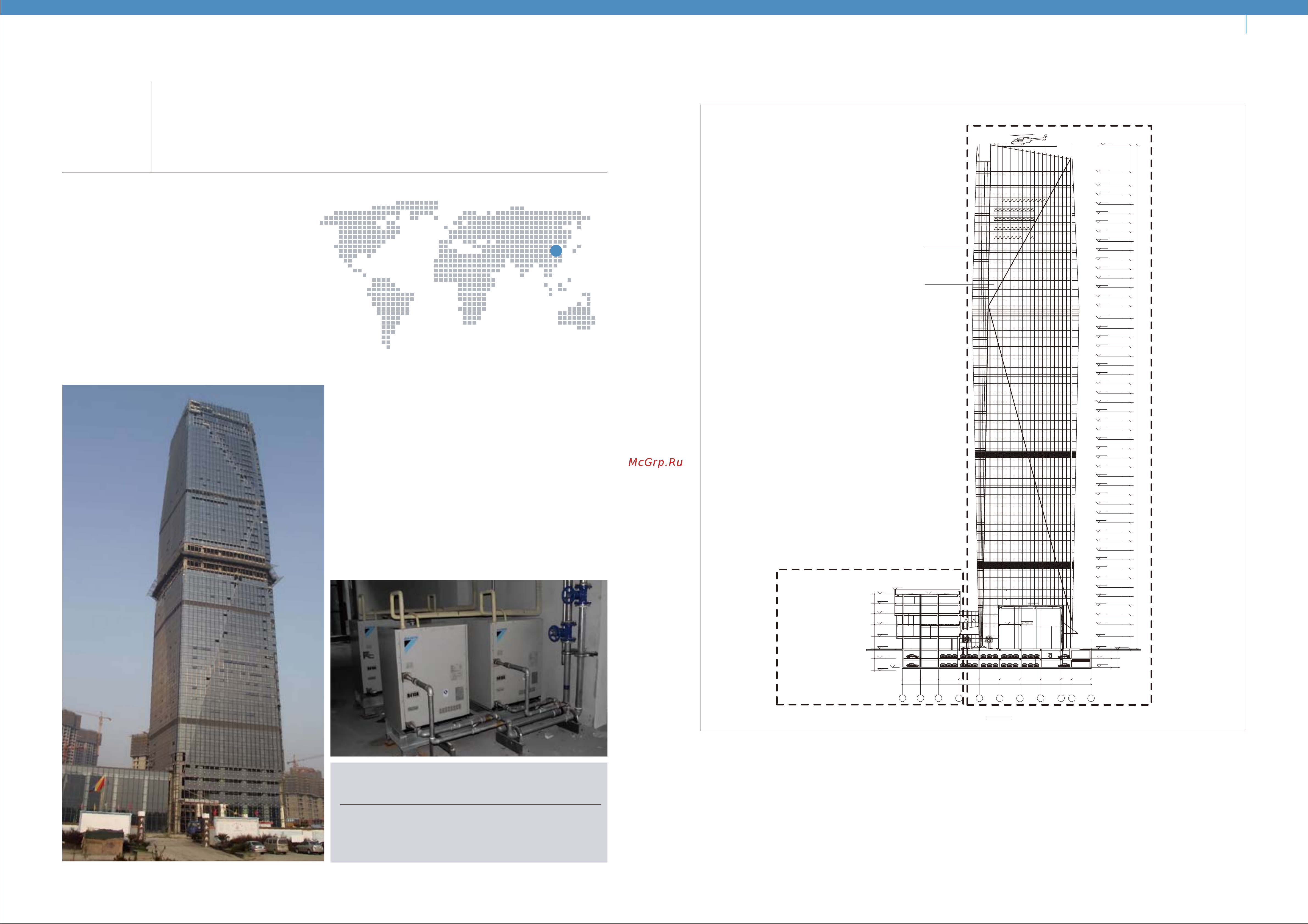

This builiding is air conditioned by air cooled VRV and water cooled VRV.
Office tower is air-conditioned by air cooled VRV and commercial zone (hall, training gym, restaurant) is air-conditioned by water cooled
VRV. VRV is suitable for high raised building like this project because of long refrigerant piping. Other advantages of VRV system are
energy saving and small installation space.
PROJECT COMMENTARY
Fig-1 Overall Building Plan
DESIGN DRAWING
Shangyu Baiguan Building
Shangyu, China
Air cooled VRV × 5600 HP
Water cooled VRV × 920 HP
EQUIPMENT
