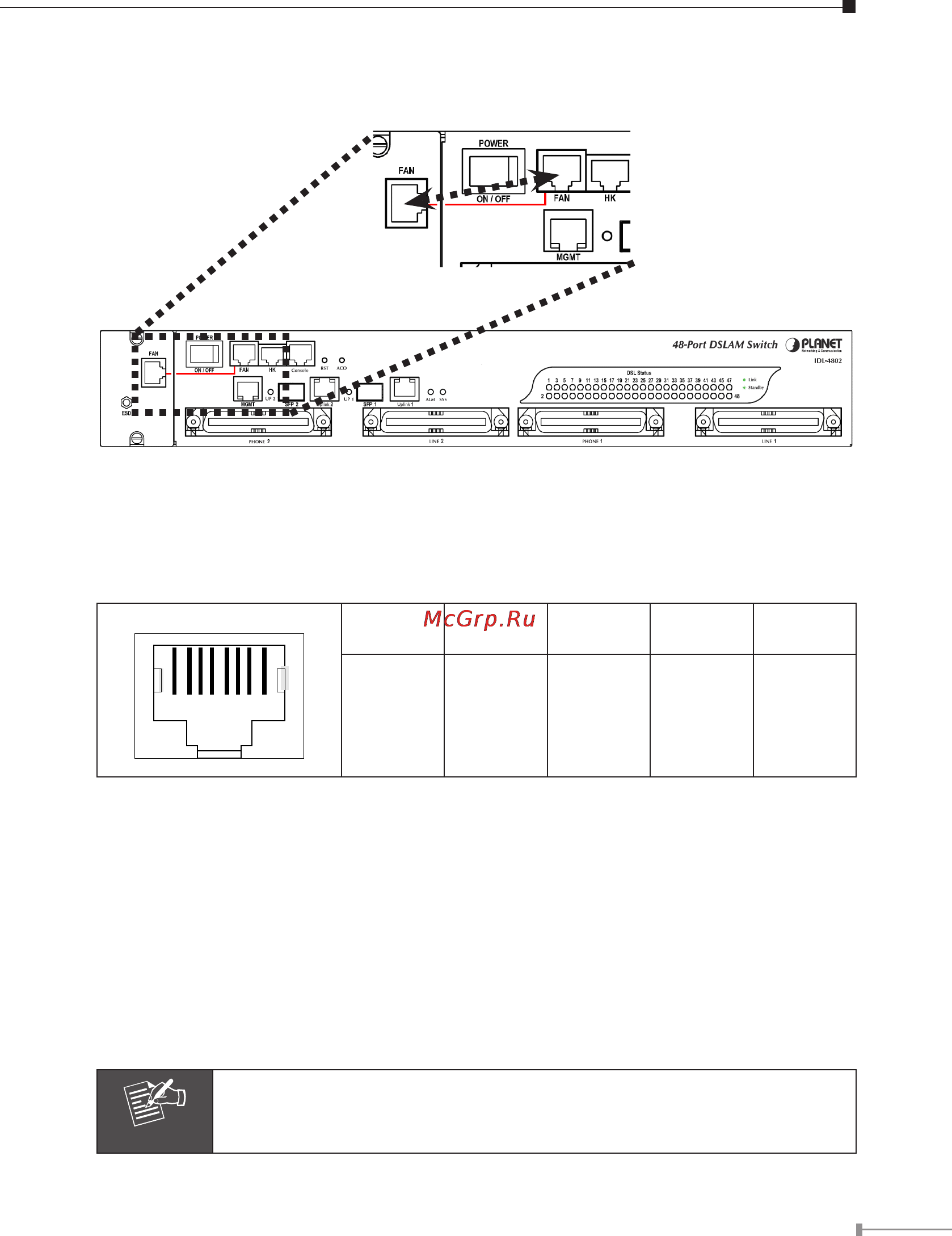

2. FAN Cable Connection

There are two FAN ports on the front panel. One is on the FAN card; the other

is beside the HK port. To make the fans work, you must use an RJ45-to-RJ45

connector cable to connect the two FAN ports.

FANPortRJ-45pinassignment:

1 2 3 4 5 6 7 8

3 , 4 5 6 7 8

GND

FAN

ERR1

FAN

ERR2

FAN

ERR3

FAN

Status

3. ADSL and POTS Connections

The IDL-4802 supports 48 ports ADSL subscribers per box. There are four RJ-21

50-pin female connectors on the front panel of the system. Two for ADSL lines and

two for POTS interfaces.

To connect the subscriber lines, use cables with the RJ-21 50-pin male connectors.

When installing, just plug the end of cable with connector into the LINE and PHONE

connectors on the front panel. The other end of the cable is generally tied to the

MDF (Main Distribution Frame).

Note

The MDF Patch panel is optional of standard package.
