User’s Manual of VC-810S / VC-810S48
26
4.2.2 IP Configuration
The IP Configuration includes the IP Address, Subnet Mask, Gateway and DNS server. Through the Web Switch Utility,
you can easily recognize the device by using the System Name. Fill up the IP Address, Subnet Mask and Gateway for the
device. The screen in Figure 4-3 appears.

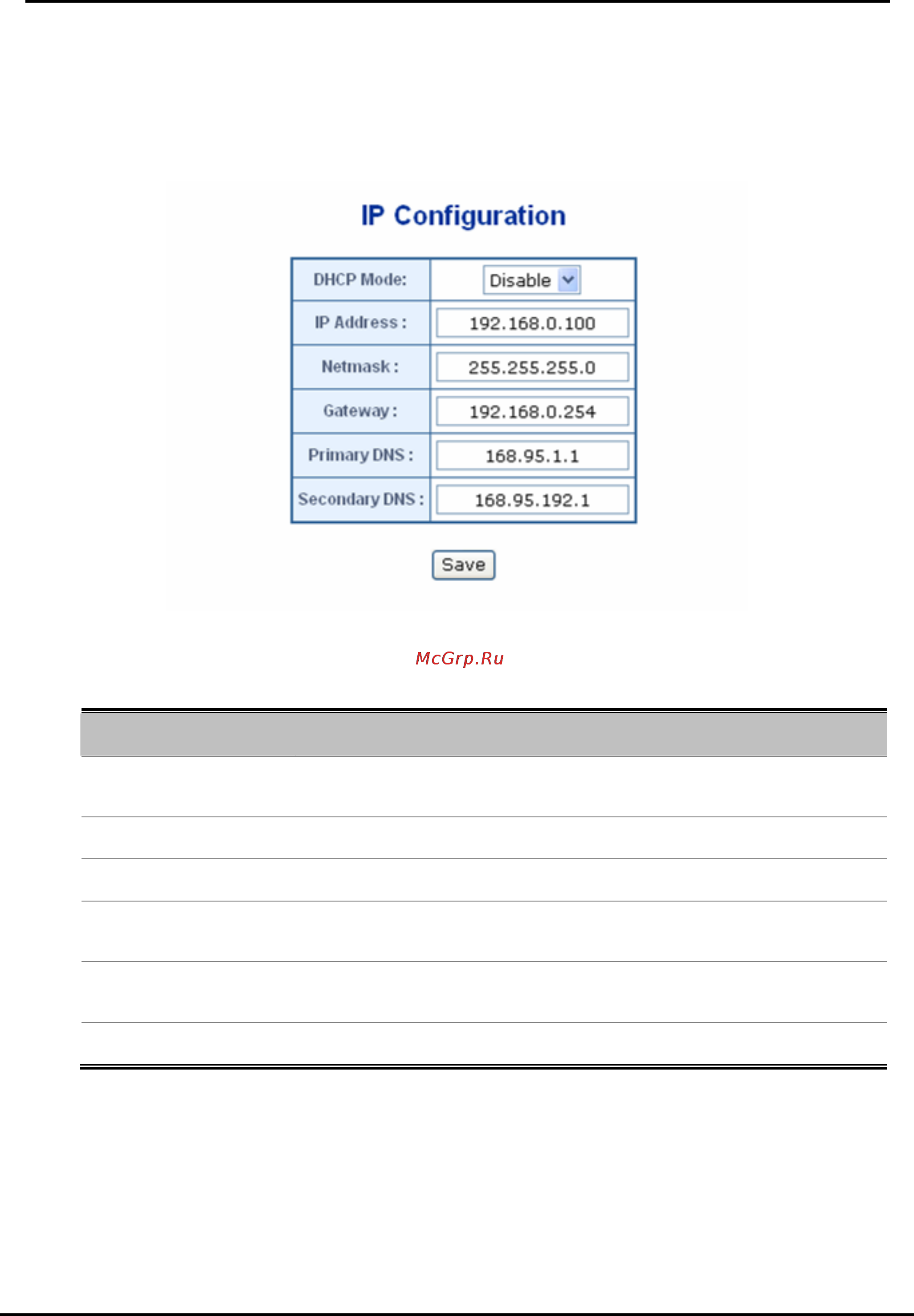

Figure 4-3 IP Configuration screen
The page includes the following configurable data:
Object Description
DHCP Mode
Choose what the switch should do following power-up: transmit a DHCP request,
or manual setting (Disable). The factory default is Disable.
IP Address The IP address of the interface. The factory default value is 192.168.0.100
Subnet Mask The IP subnet mask for the interface. The factory default value is 255.255.255.0
Gateway
The default gateway for the IP interface. The factory default value is
192.168.0.254.
Primary DNS Enter the IP Address of the Primary DNS Server. The Domain Name System
(DNS) converts user-defined domain names into IP addresses.
Secondary DNS
Enter the IP Address of the Secondary DNS Server.
