User’s Manual of VC-810S / VC-810S48

4.12 Logout

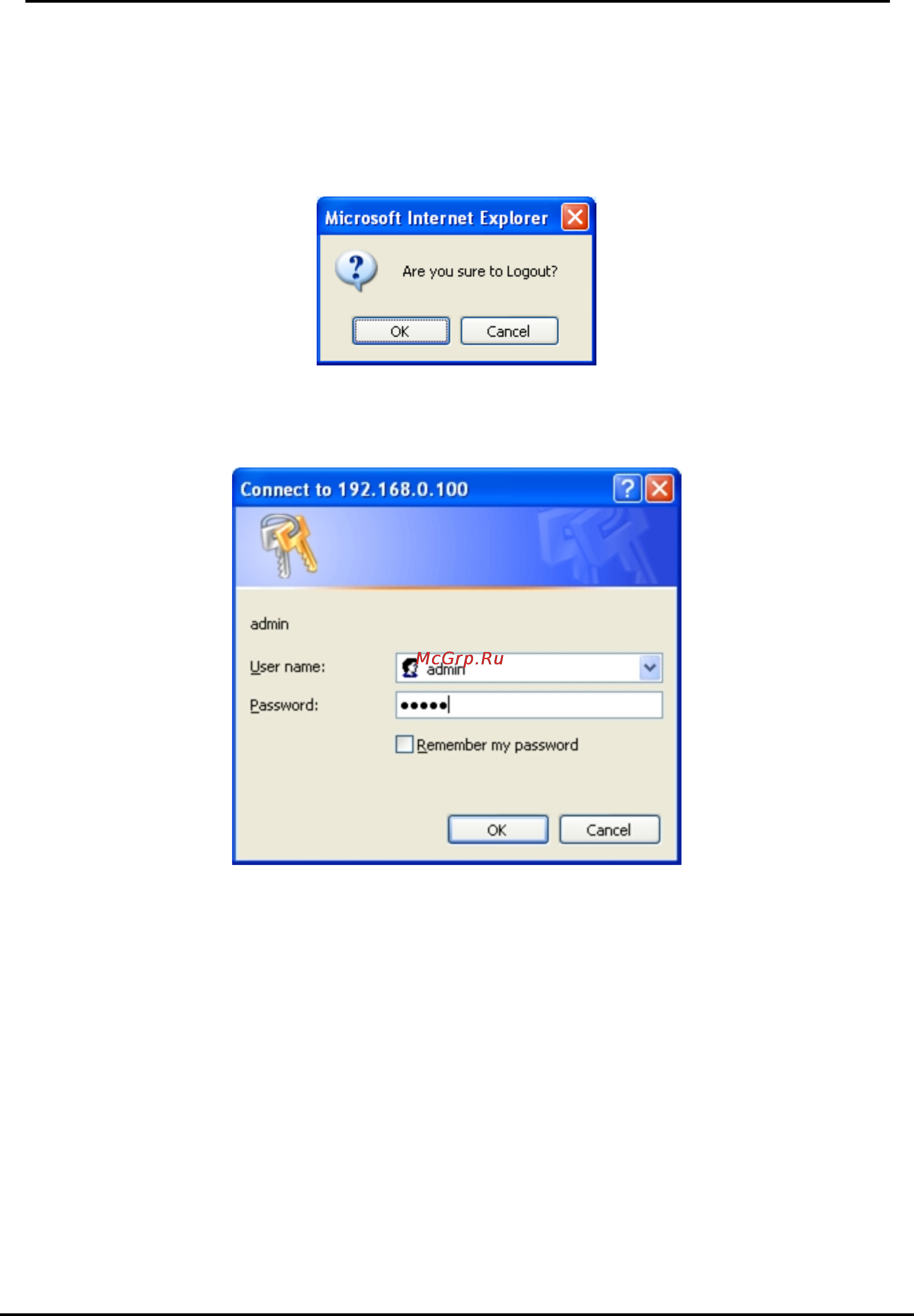

Press this function; the web interface will go back to login screen. The screen in Figure 4-48 and Figure 4-49 appears.

Figure 4-48 Logout screen

Figure 4-49 Login screen
