User’s Manual of VC-810S / VC-810S48
29
4.2.5 Firmware Upgrade
The Firmware Upgrade page provides the functions to allow a user to update the switch firmware from the TFTP server in
the network. Before updating, make sure you have your TFTP server ready and the firmware image is on the TFTP server.

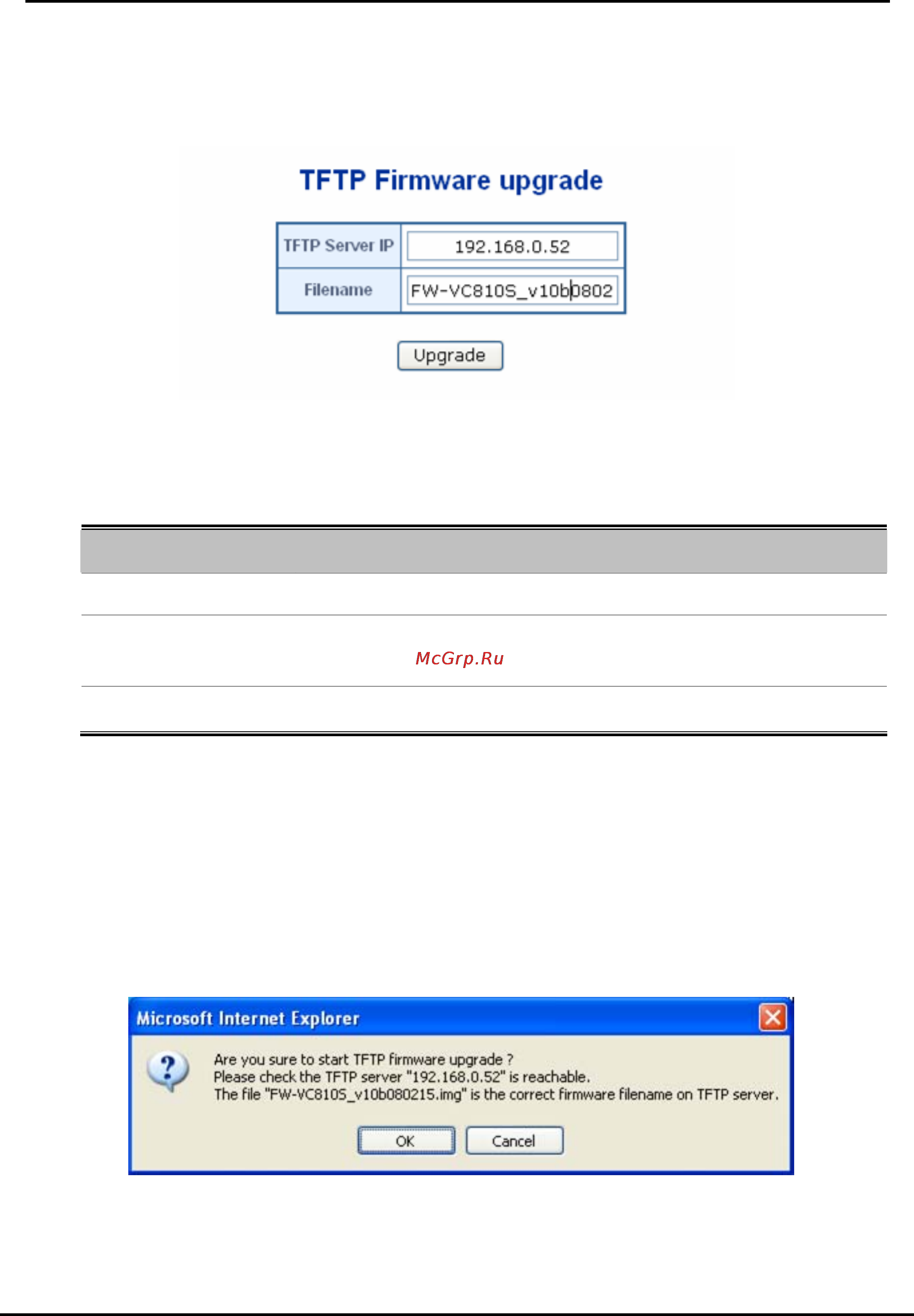

Figure 4-6 TFTP Update Firmware screen
The page includes the following fields:
Object Description
TFTP Server IP
Fill in your TFTP server IP address.
Filename
The name of firmware image.
(Maximum length : 24 characters)
Upgrade button
Press the button for upgrade the switch firmware.
To open Firmware Upgrade screen perform the folling:
1. Click System -> Firmware Upgrade.
2. The Firmware Upgrade screen is displayed as in Figure 4-6.
3. Fill in the TFTP server IP Address and the firmware file name, click the “Upgrade” button of the main page, the
system would pop up the confirm message
.
Figure 4-7 TFTP Firmware upgrade pop-up message
