User’s Manual of VC-810S / VC-810S48

1. Specify Port-9 on the device to connect to the server.

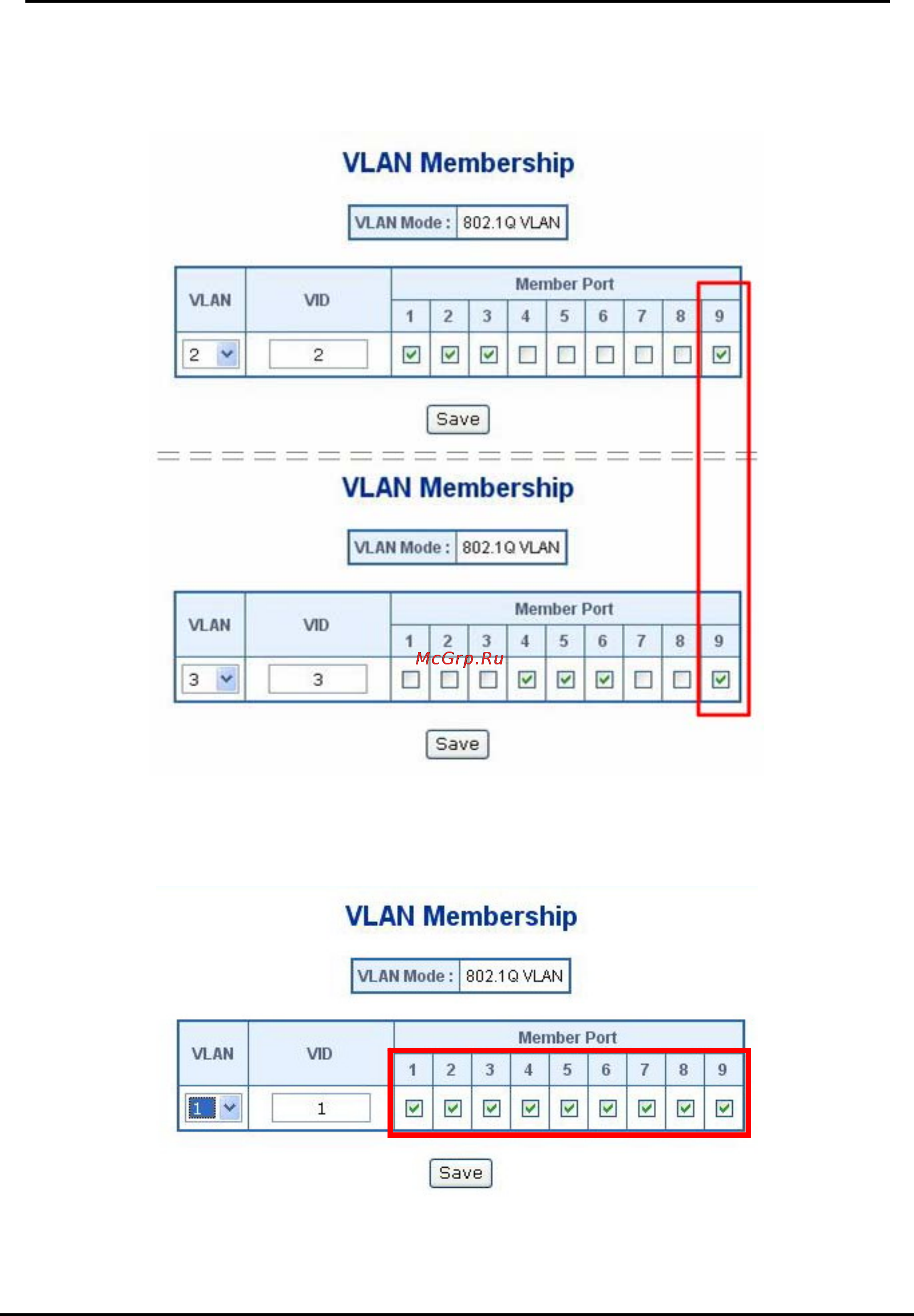

2. Assign Port-9 to both VLAN 2 and VLAN 3 at the VLAN Member configuration page. The screen in Figure 4-26

appears.

Figure 4-26 VLAN overlap port setting

3. Define a VLAN 1 as a “Public Area” that overlapping with both VLAN 2 members and VLAN 3 members.

Figure 4-27 VLAN 1 – The public area member assigning

4. Setup Port-9 with “PVID=1” at VLAN per Port Configuration page. The screen in Figure 4-28 appears.
