Idle Time Out The WAN "idle timeout" auto-disconnect function may not work
due to abnormal activities of some network application software,
computer virus or hacker attacks from the Internet. For example,
some software sends network packets to the Internet in the
background, even when you are not using the Internet. This
function also may not work with some ISP. So please make sure
this function can work properly when you use this function in the
first time, especially your ISP charge you by time used. Due to
the many uncontrollable issues, we do not guarantee the WAN
"idle timeout" auto-disconnect function will always work. In order
to prevent from extra fee charged by ISP, please TURN OFF
THE ROUTER WHEN YOU FINISHED USING THE INTERNET.
Click <OK> when you have finished the configuration above. Congratulations! You have
completed the configuration for the L2TP connection. You can start using the router now, if you
wish to use some of the advance features supported by this router see chapter 2, 3, 4.

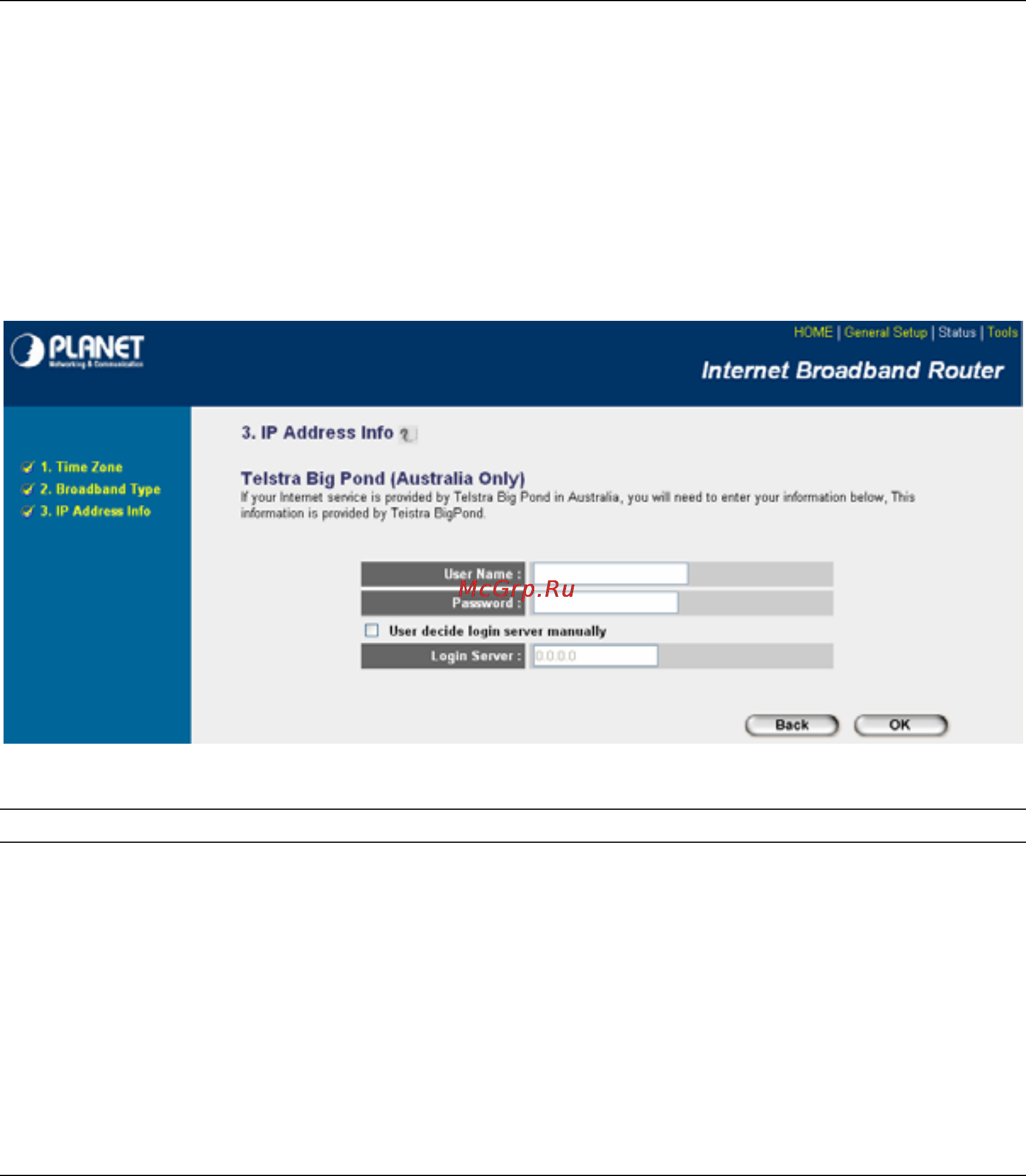

1.6 Telstra Big Pond
Select Telstra Big Pond if your ISP requires the Telstra Big Pond protocol to connect you to the
Internet. Your ISP should provide all the information required in this section. Telstra Big Pond
protocol is used by the ISP in Australia.
Parameter Description
User Name Enter the User Name provided by your ISP for the Telstra Big
Pond connection.
Password Enter the Password provided by your ISP for the Telstra Big
Pond connection.
User decide login server Select if you want to assign the IP of Telstra Big Pond’s login
manually server manually.
Login Server The IP of the Login Server.
25
