Planet VRT-401G [49/86] Edit qos rule

Add a QoS rule into the table Click “Add” then you will enter a form of the QoS

rule. Click “Apply” after filling out the form and

the rule will be added into the table.

Remove QoS rules from the table If you want to remove some QoS rules from the

table, select the QoS rules you want to remove

in the table and then click "Delete Selected". If

you want remove all QoS rules from the table,

just click "Delete All" button. Click "Reset" will

clear your current selections.

Edit a QoS rule Select the rule you want to edit and click “Edit”,

then you will enter the detail form of the QoS

rule. Click “Apply” after editing the form and the

rule will be saved.

Adjust QoS rule priority You can select the rule and click “Move Up” to

make its priority higher. You also can select the

rule and click “Move Down” to make its priority

lower.

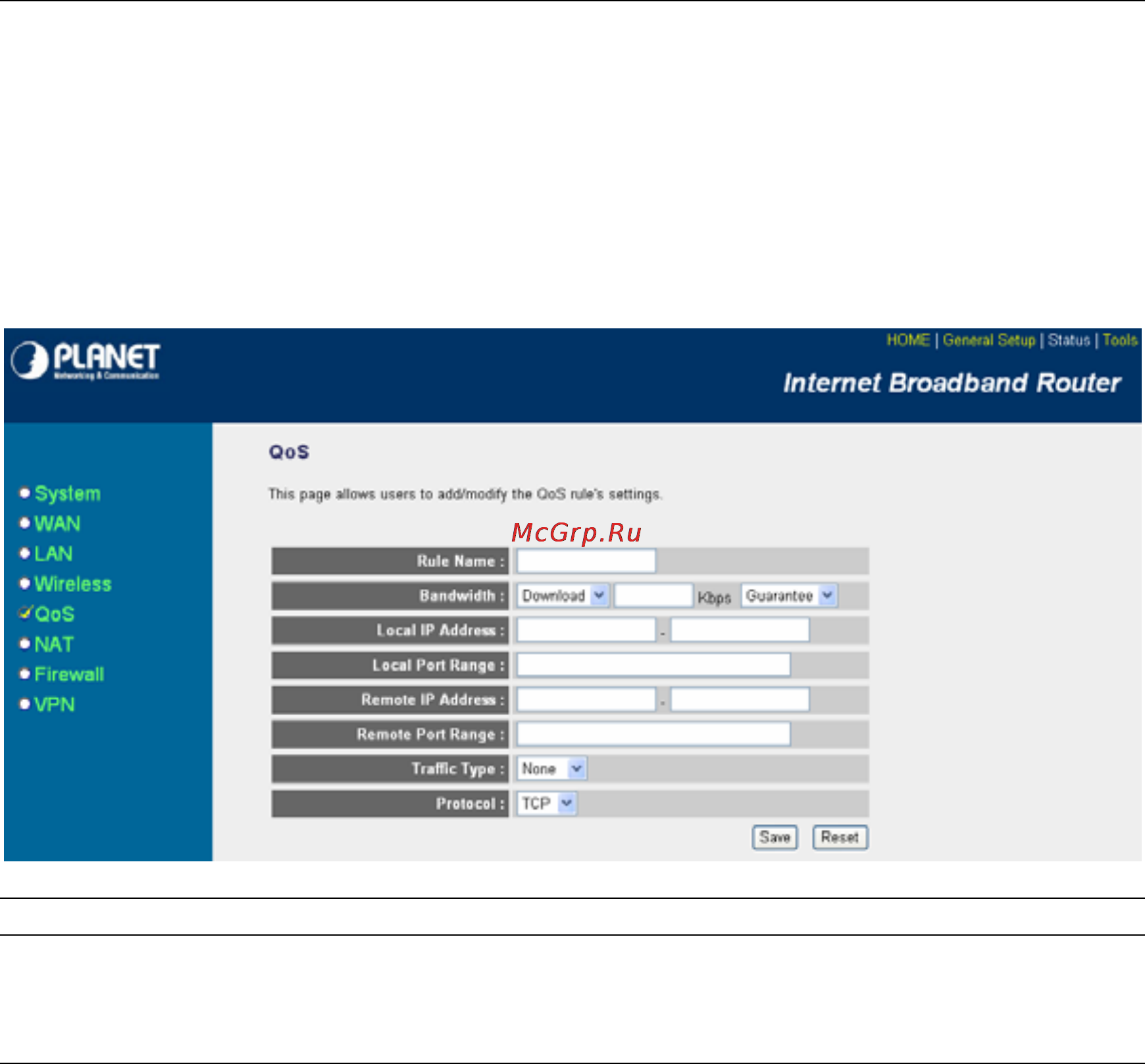

Edit QoS Rule:

You can assign packet classification criteria by its local IP range, remote IP range, traffic type,

protocol, local port range and remote port range parameters. The parameters that you leave as

blank will be ignored. The priority of this rule will be applied to packets that match classification

criteria of this rule. You can limit bandwidth consumed by packets that match this rule or

guarantee bandwidth required by packets that match this rule.

Parameters Description

Rule Name The name of this rule.
