Planet VRT-401G [7/86] Getting started

LAN 10/100M ON LAN port 100Mbps is connected

(Port 1-4) OFF LAN port 10Mbps is connected

LAN LNK/ACT ON LAN is connected

(Port 1-4) OFF No LAN connection

Flashing LAN port has Activity (ACT), data being sent

WLAN ON Wireless LAN has been activated

OFF Wireless LAN is disabled

Flashing Wireless LAN has Activity (ACT) data being sent

Setup Diagram

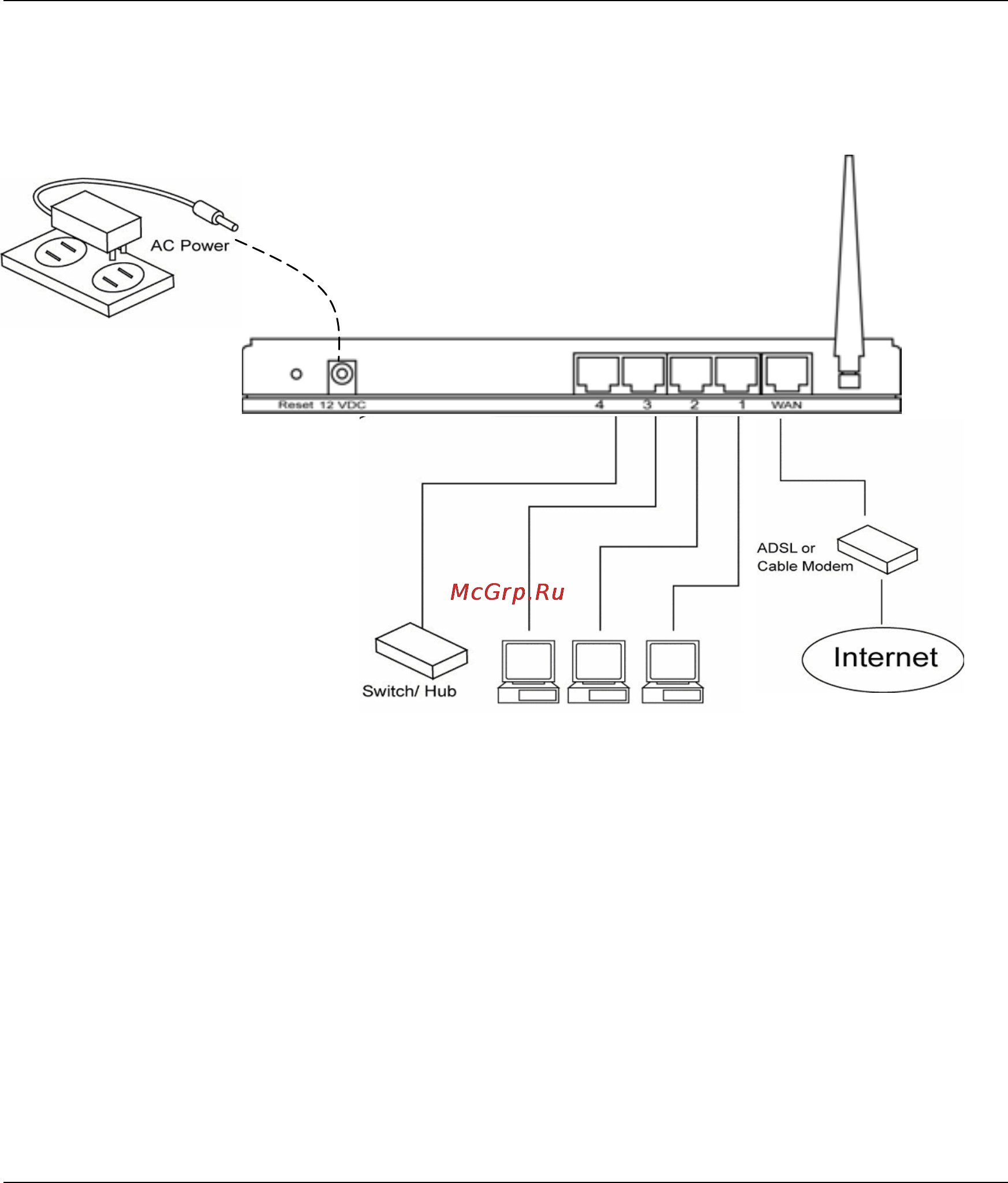

Figure 1.2 below shows a typical setup for a Local Area Network (LAN).

Figure 1.2

Getting started

This is a step-by-step instruction on how to start using the router and get connected to the

Internet.

1) Setup your network as shown in the setup diagram above (fig 1.2).

2) You then need to set your LAN PC clients so that it can obtain an IP address automatically.

All LAN clients require an IP address. Just like an address, it allows LAN clients to find one

another. (If you have already configured your PC to obtain an IP automatically then proceed

to step 3, page 13)
