Streacom DB1 Fanless Chassis [4/12] Remove all

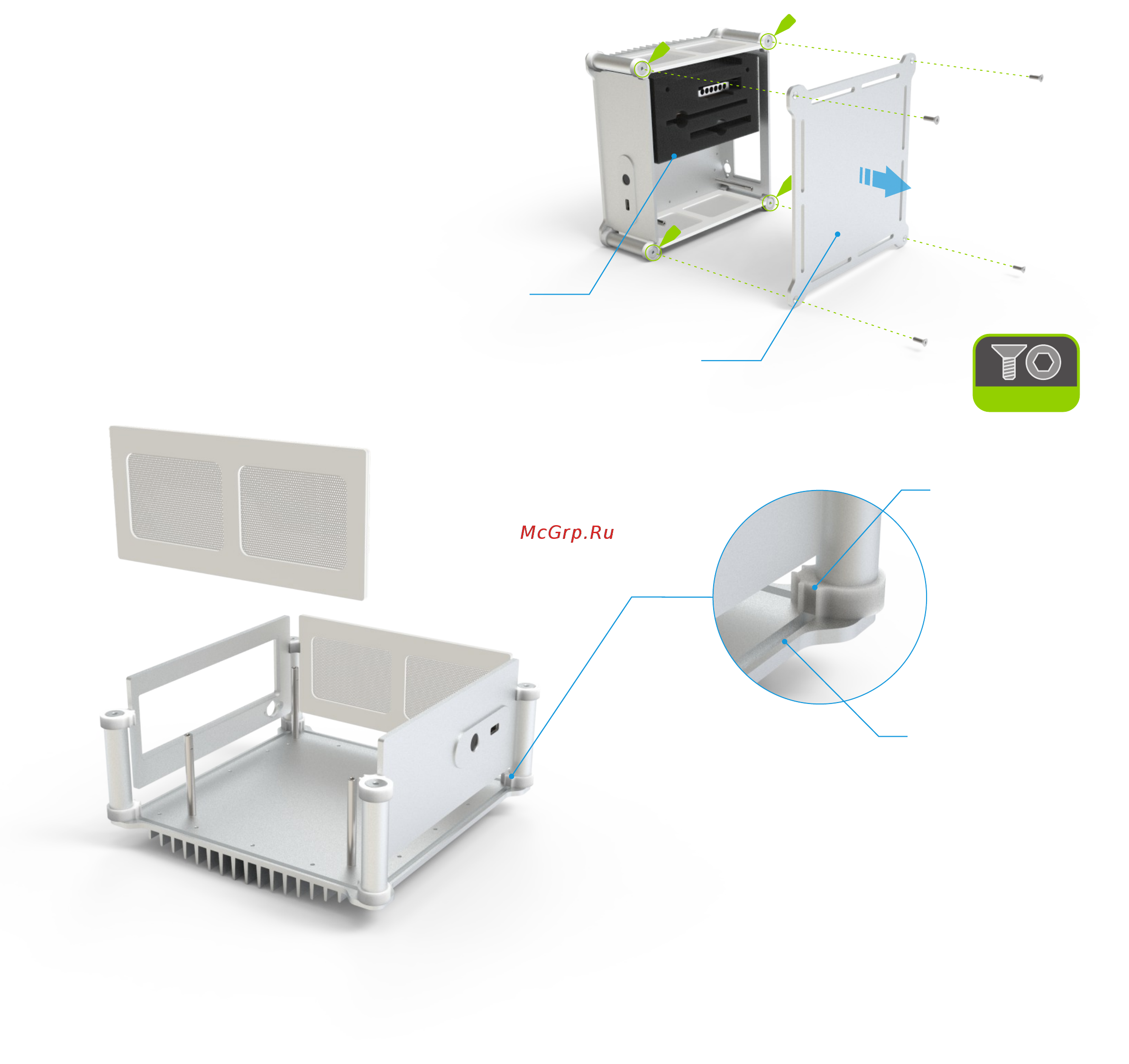

Remove the Side Panel

Using the provided HEX Allen key (or if you have your own HEX 2.5M

screwdriver), remove the 4 screws that secure the side panel to the case

pillars. Note that you dont need to remove the screws that secure the

pillars to the heat sink side of the case.

The CPU cooler hardware will be located inside the case within foam

packing for protection and should be removed at this time. This hardware

includes the heat pipes, so please handle them with care as they can be

easily deformed or damaged.

CPU Cooler Hardware

Side Panel

HCS-M4x12

2.5

Slot

Remove Other Panels

With the side panel off, all the other panels can be easily removed by

sliding them away from the heat sink. Note that there are slots cut along

the edge of the heat sink (also on the side panel) that the panels fit into and

that the silicon bumpers have tabs that also support the panels and secure

them in place. This is important to note as the panels must line up and fit

back into these slots when being replaced.

With all the panels removed, it will be easy to install the motherboard and

cooling hardware into the case.

Tabs
