SilverStone SST-SG08B(black) [3/31] Picture item purpose
![SilverStone SST-SG08B(black) [3/31] Picture item purpose](/views2/1718118/page3/bg3.png)
2

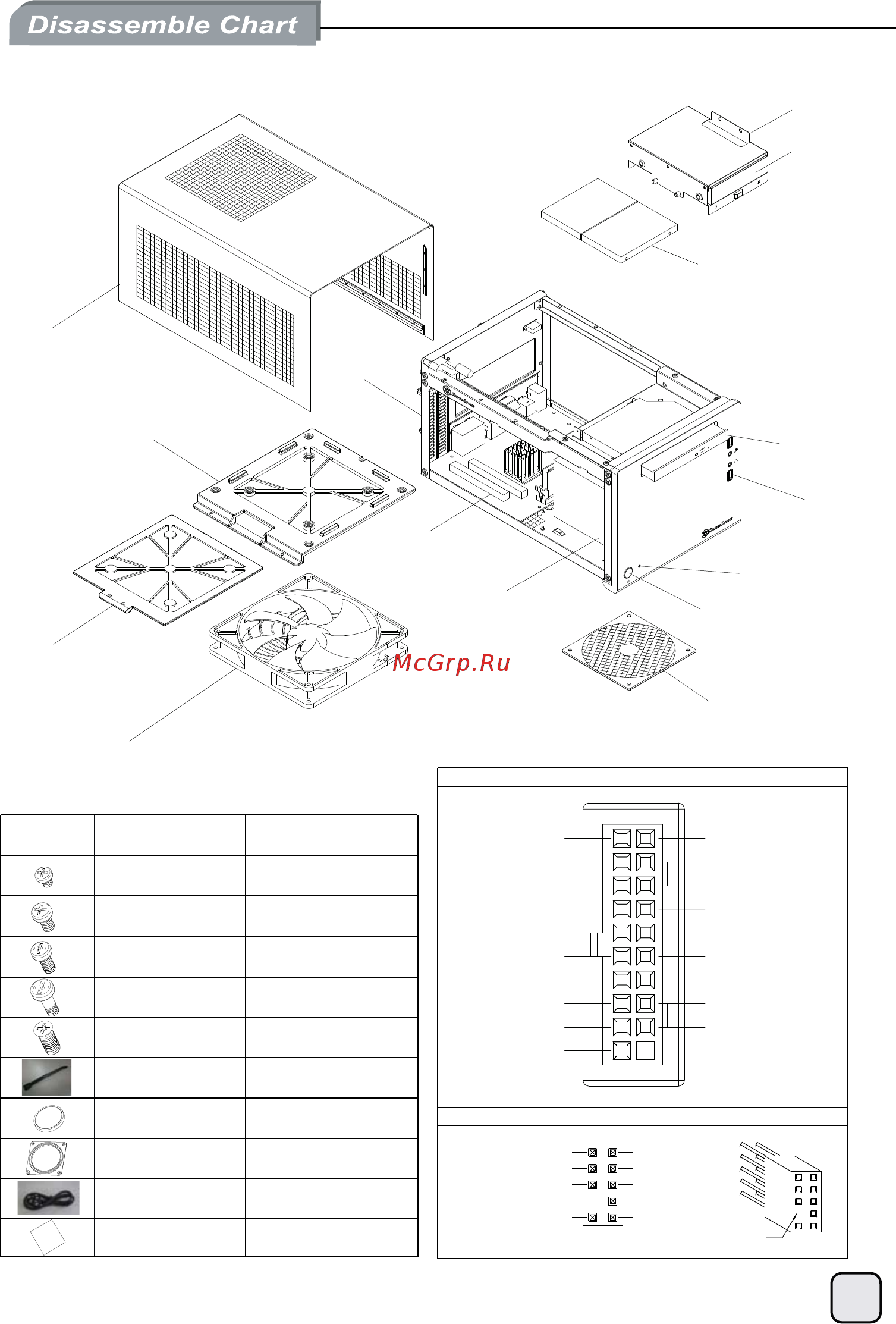

PICTURE ITEM PURPOSE
SCREW A M2*2
18032 FAN x 1
FAN FILTER
FAN BRACKET
EXPANSION
SLOT x 2
MINI-ATX (OPTION)
PSU
PSU FILTER
POWER BUTTON
POWER LED & HDD LED
USB 3.0 + SPK + MIC
SLIM OPTICAL DRIVE
(OPTION)
2.5” HDD x 2
3.5” HDD x 1
3.5” HDD CAGE
TOP COVER
SCREW B M3*4
SCREW C 632 x 6
SCREW D 632 x 10
WIRE-MOUNT
POWER CORD
INSTALLATION GUIDE
SECURE CD ROM
SECURE 2.5” HARD DEVICE
SECURE 3.5” HARD DEVICE
SCREW E M5 x 10
SECURE VGA COVER
-
-
-
-
-
SECURE MOTHERBOARD
EVA FOAM
VGA DUCT
USB 3.0 CONNECTOR
HD AUDIO CONNECTOR
PIN
AUD GND PORTIL
PORT1R
PORT2R
PORT2R
PIN
PRESENCE
SENSE1_RETURN
SENSE2_RETURN
SENSE_SEND
ID INTA_P2_D+
INTA_P2_D-
INTA_P2_SSTX+
INTA_P2_SSTX-
INTA_P2_SSRX+
INTA_P2_SSRX-
VBUS
GND
GND
INTA_P1_D+
INTA_P1_D-
INTA_P1_SSTX+
INTA_P1_SSTX-
INTA_P1_SSRX+
INTA_P1_SSRX-
VBUS
GND
GND
