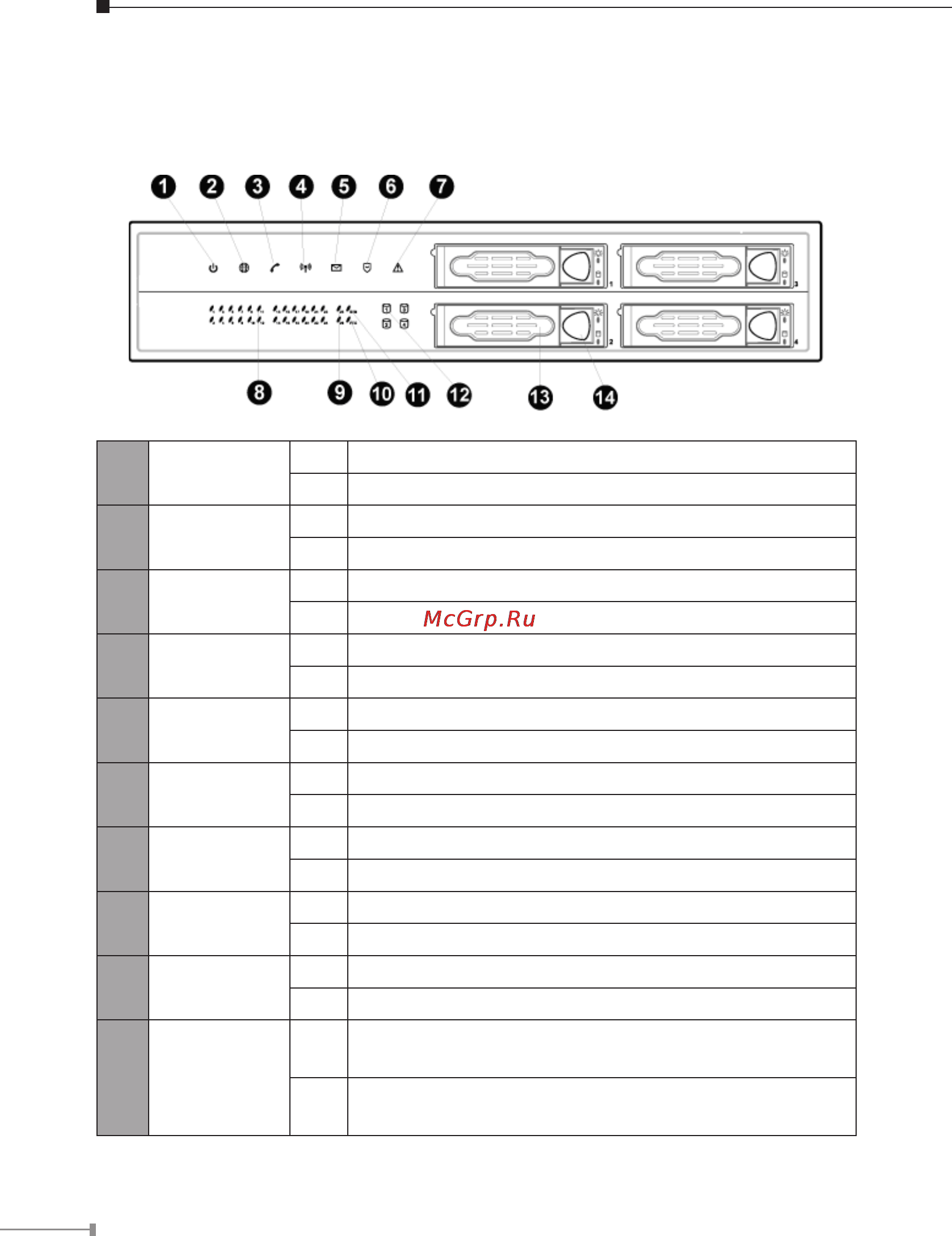

2. Overview
Front Panel
1 PWR LED
On Power On
Off Power Off
2 Internet LED
On Connect to Internet
Off Disconnect to Internet
3 PBX LED
On PBX function turn on
Off PBX function turn off
4 WLAN LED
On Wireless function turn on
Off Wireless function turn off
5 E-mail LED
On E-mail function turn on
Off E-mail function turn off
6 Firewall LED
On Firewall/Security function turn on
Off Firewall/Security function turn off
7 Alert LED
On Don’t insert or pull put hard disk
Off Normal status
8 1~24 LED
On Connect to 1~24 10/100Mbps LAN ports
Off Disconnect to 1~24 10/100Mbps LAN ports
9 25~26 LED
On Connect to 25~26 10/100/1000Mbps LAN ports
Off Disconnect to 25~26 10/100/1000Mbps LAN ports
10 FTX LED
On
Fault redundant UMG-2000 unit is connected and
activated (future feature)
Off
Fault redundant UMG-2000 unit is not available
(future feature)
