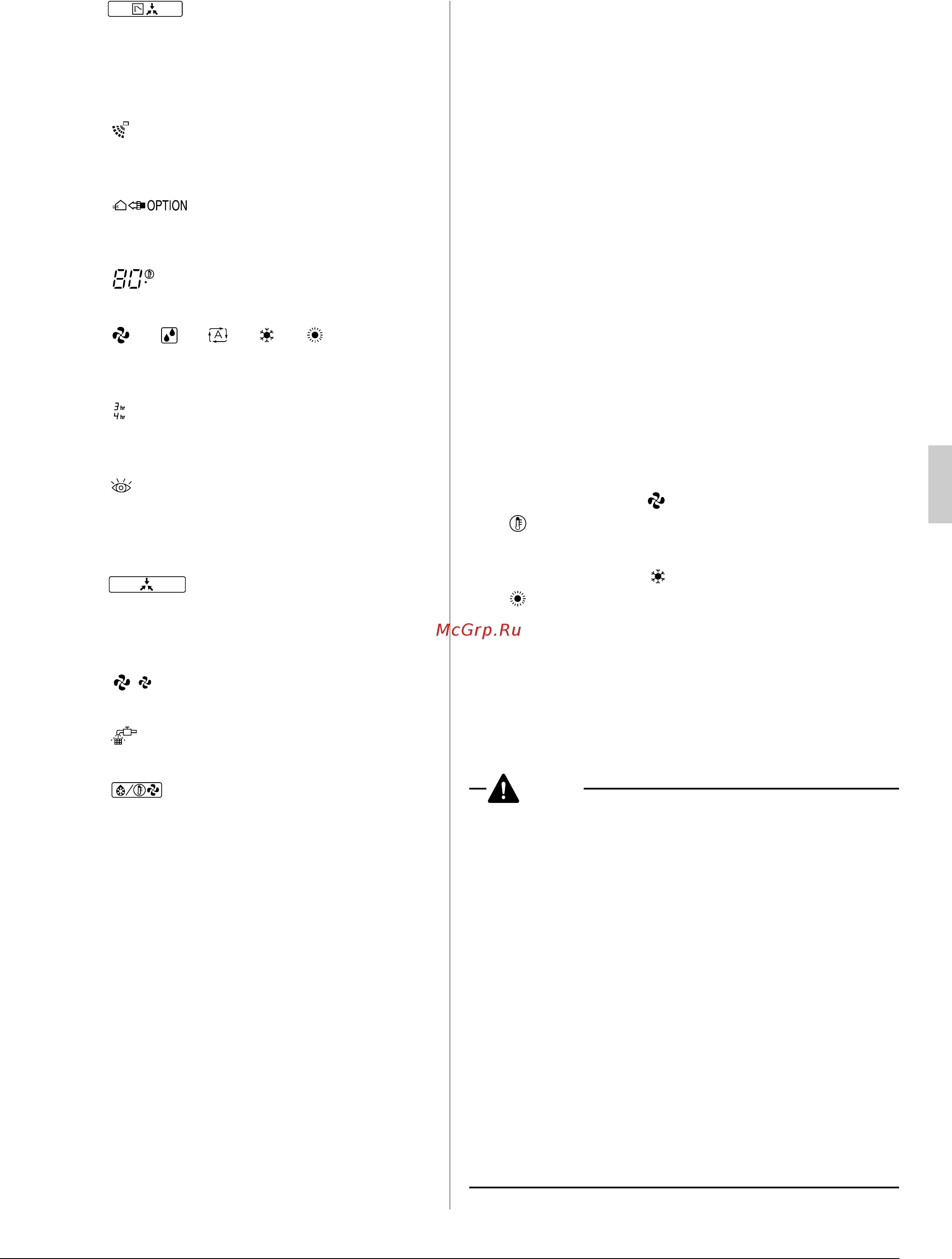

English 6
3.
Display
“”
(changeover under control)
It is impossible to changeover heat/cool with the
remote controller which display this icon.
Refer to the chapter “6-5 SETTING THE MAS-
TER REMOTE CONTROLLER”.
4.
Display
“”
(air flow flap)
Refer to the chapter “6-3 ADJUSTING THE AIR
FLOW DIRECTION”.
5.
Display “” (ventilation/air cleaning)
This display shows that the ventilation unit are in
operation. (these are optional accessories.)
6.
Display
“”
(set temperature)
This display shows the temperature you have set.
7.
Display
“”
“”
“”
“”
“”
(operation mode)
This display shows the current operation mode.
8.
Display
“”
(programmed time)
This display shows the programmed time of the
system start or stop.
9.
Display
“”
(inspection/test operation)
When the inspection/test operation button is
pressed, the display shows the mode in which
the system actually is.
10.
Display “” (under centralized control)
When this display shows, the system is under
centralized control. (This is not a standard spec-
ification.)
11.
Display
“”
(fan speed)
This display shows the fan speed you have selected.
12.
Display
“”
(time to clean air filter)
Refer to the operation manual of indoor unit.
13.
Display
“”
(defrost/hot start)
Refer to the “EXPLANATION OF HEATING
OPERATION” in chapter 6-1.
14.
Timer mode start/stop button
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
15.
Timer on/off button
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
16.
Inspection/test operation button
This button is only used by qualified service
persons for maintenance purposes.
17.
Programming time button
Use this button for setting the programming start
and/or stop time.
Refer to the chapter “6-4 PROGRAMMING START
AND STOP OF THE SYSTEM WITH TIMER”.
18.
Temperature setting button
Use this button for setting the desired temperature.
Refer to the chapter “6-1 COOLING, HEATING,
AUTOMATIC AND FAN ONLY OPERATION”.
19.
Filter sign reset button
Refer to the operation manual of indoor unit.
20.
Fan speed control button
Press this button to select the fan speed of your
preference.
21.
Operation mode selector button
• Press this button to select the operation mode of
your preference.
• Press this button to designate the master remote
controller.
Refer to the chapter “6-5 SETTING THE MAS-
TER REMOTE CONTROLLER”.
22.
Air flow direction adjust button
Refer to the chapter “6-3 ADJUSTING THE AIR
FLOW DIRECTION”.
23.
Fan only/air conditioning selector switch
Set the switch to
“”
for fan only operation or to
“”
for heating or cooling operation.
24.
Cool/heat changeover switch
Set the switch to
“”
for cooling operation or to
“”
for heating operation.
25.
Thermistor
It senses the room temperature around the
remote controller.
26.
These buttons are used when the ventilation unit
are installed (These are optional accessories.)
Refer to the operation manual of the ventilation unit.
NOTE
•
Do not place the controller exposed to direct sunlight.
The LCD display may get discolored, failing to dis-
play the data.
• Never pull or twist the electric wire of a remote
controller.
It may cause the unit to malfunction.
• Do not allow sharp or hard items to touch the but-
tons of the remote controller.
The remote controller may be damaged or break-
down may occur.
• Contrary to actual operating situations, the dis-
play in figure 2 shows all possible indications.
• Figure 2 shows the remote controller with its
cover open.
• For FXS, FXM, FXL and FXN, the air flow direc-
tion ajust button (22) is not available and the dis-
play (4) shows “NOT AVAILABLE” when pressed.
F
TEST
01_EN_3P215731-1D.fm Page 6 Tuesday, February 5, 2008 6:35 PM
