p. 10

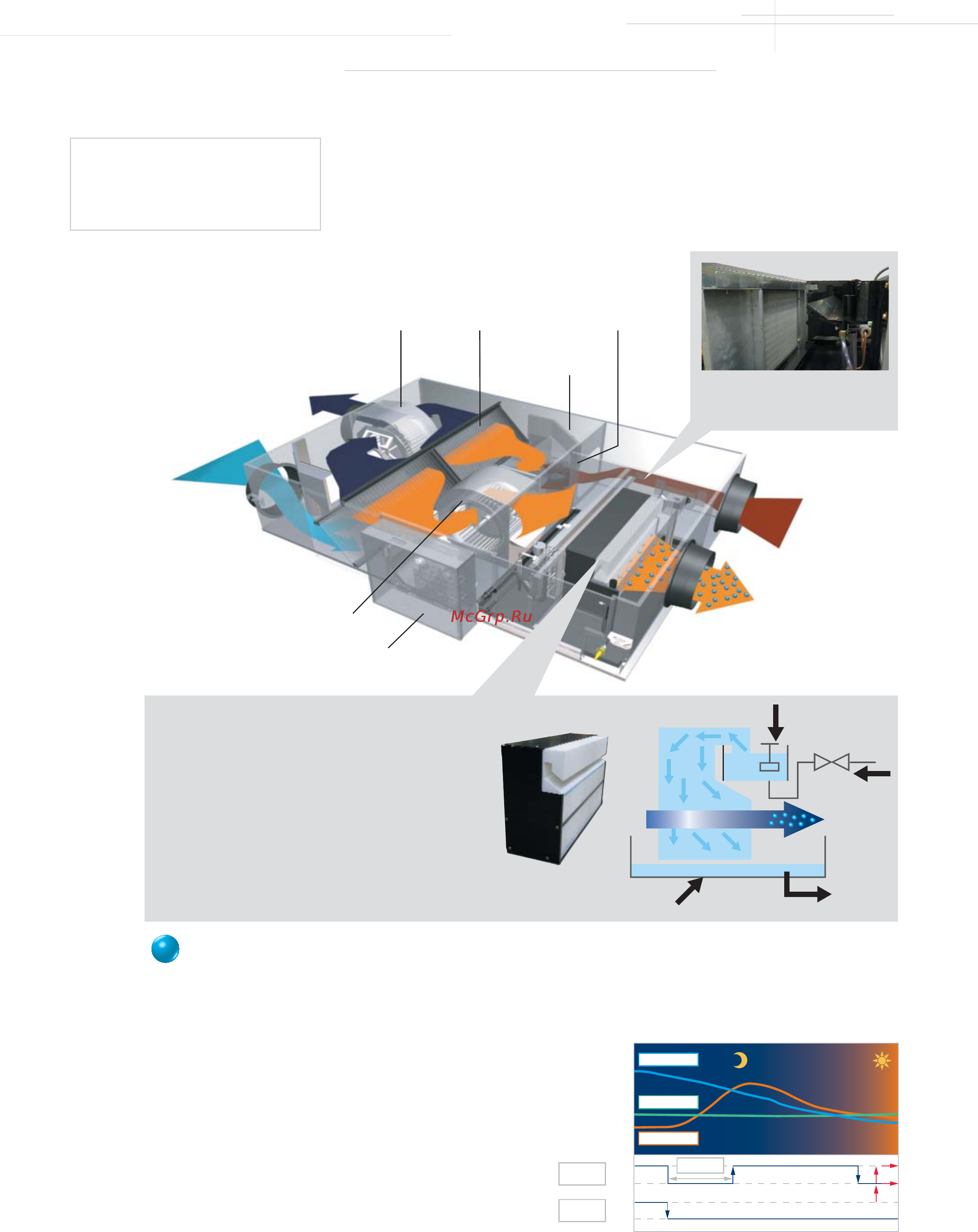

III. VKM Features
Exhaust Fan
Heat Exchanger
Elements
Damper Motor
Damper
EA
(Exhaust air to outdours)
OA
(Fresh air from outdoors)
Air Supply Fan
Electronics Box (Control box)
SA (Supply air to room)
RA
(Return air from room)
DX coil
(Direct expansion coil)
energy efficiency
Humidifier element:
Utilizing the principle of capillary action,
water is permeated throughout the
humidifier element. The heated air from
the DX coil passes through the humidifier
and absorbs the moisture
1. ENERGY EFFICIENCY
• Night time Free Cooling Operation
Night time free Cooling Operation is an energy
conserving function operating at night when the
air conditioning is switched off. By ventilating
rooms containing office equipment that increases
room temperature, night purge reduces the
cooling load when air conditioning is switched
on in the morning.
• Night time free cooling operation works only if
connected to Multi or VRV systems.
• Night time free cooling operation is factory set
to “off” but can be activated by your Daikin
dealer on request.
1
Float switch
Solenoid
valve
water
SA
Drain pan Drain
AIRFLOW
40
30
20
ON
OFF
ON
OFF
Temp.
2 Hours
auto start
start
VKM
Air
Conditioner
Indoor Temp.
Outdoor Temp.
Setting Temp.
375 EPCE05-44B UK artwork 26/6/06 12:26 pm Page 10
