1. ENERGY EFFICIENCY
• Over 30 % Size Reduction
Use of the high efficiency paper (HEP) element and optimized design of the fan and airflow
passages have resulted in matchless compactness without detriment to the 28% or so reduction
in air conditioning load achieved by previous models. A reduction of up to 40mm in height
allows the main unit to fit easily into limited spaces such as ceilings
On average 28 % air conditioning load reduction (maximum 40 %):
- 20% by operating in total heat exchange mode (in comparison with normal ventilation fans)
- a further 6 % by auto-ventilation mode changeover switching
- a further 2 % by pre-cool, pre-heat control (reduces air conditioning load by not running the
HRV while air is still clean soon after the air conditioner is switched on.)
Note: the values mentioned above may vary according to weather and other environmental conditions at the location of the unit’s
installation
• Proprietary Developed HEP Element
The heat exchange element uses a high efficiency paper (HEP) possessing
superior moisture absorption and humidifying properties.
The heat exchange unit speedily recovers heat contained in latent heat
(vapour). The element is made of a material with flame resistant properties
and is treated with an anti-moulding agent.

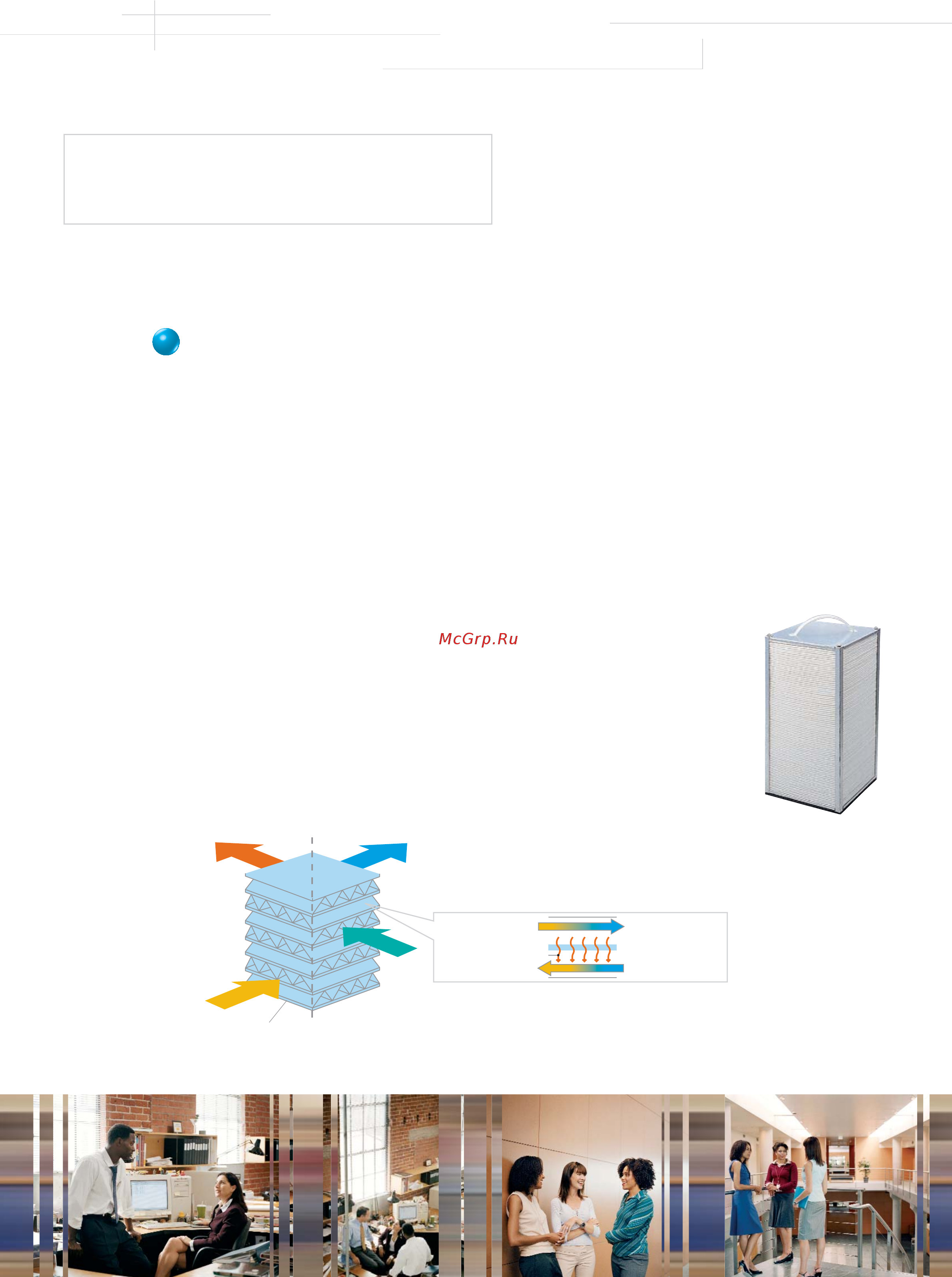

Operation of the heat exchanger element
p. 6
II. General HRV (VAM+VKM)
Features
general HRV features
1
Outdoor Indoor
SA
27.4°C
63% RH
RA
26°C
50% RH
30.6°C
62% RH
32°C
70% RH
Integrally-formed liner
Temperature
and humidity
SA
Integrally-
formed liner
RA
375 EPCE05-44B UK artwork 26/6/06 12:25 pm Page 6
