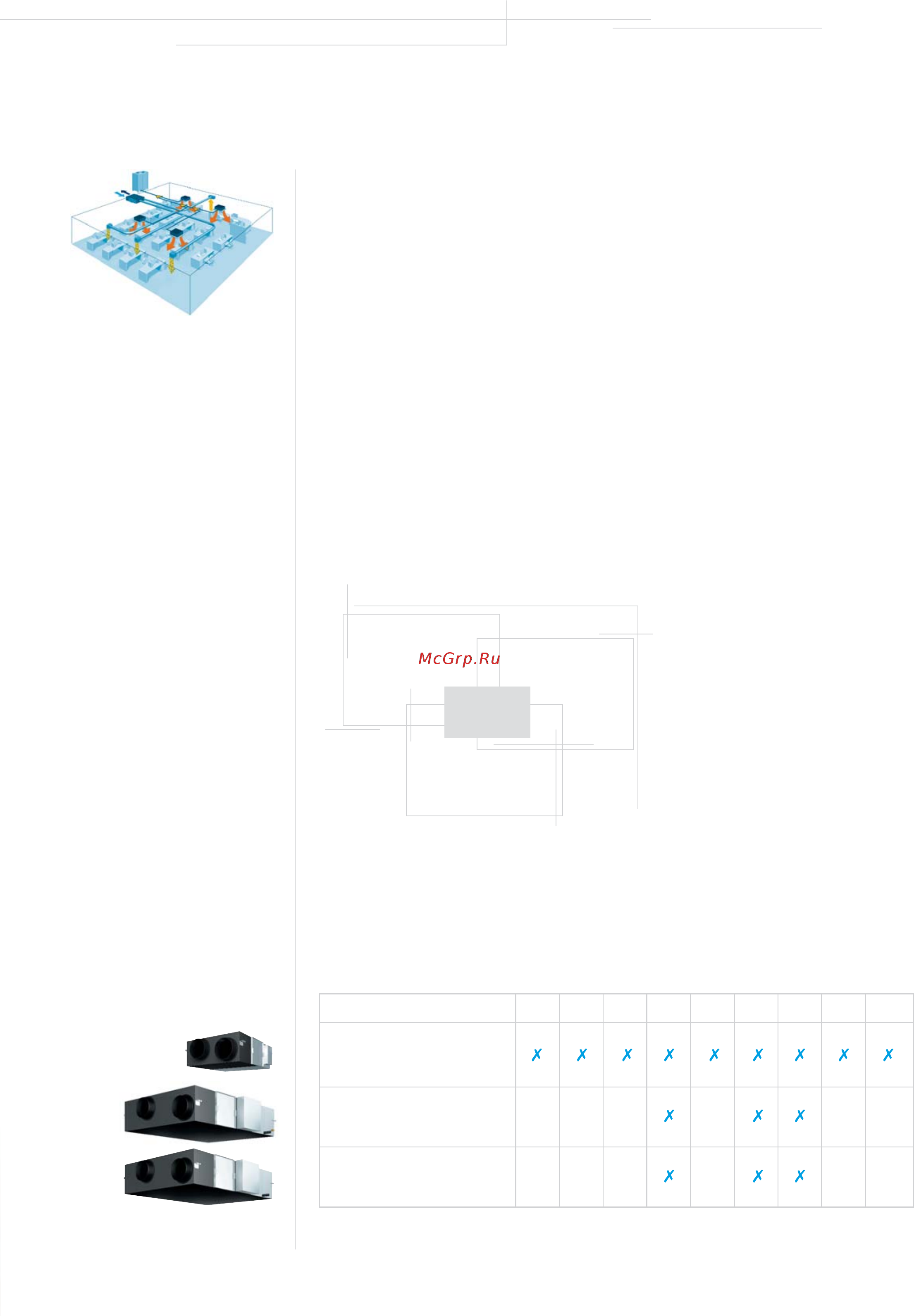

p. 5
HRV helps create a high quality environment by interlocking with the air
conditioning system
The Daikin HRV (Heat Reclaim Ventilation) recovers heat energy lost through
ventilation and holds down room temperature changes caused by
ventilation, thereby maintaining a comfortable and clean environment. This
also reduces the load on the air conditioning system and conserves energy.
In addition, the HRV interlocks with Daikin’s VRV system, Sky Air and other air
conditioning systems and automatically switches over ventilation mode,
further increasing the effects of energy conservation. HRV operation has
been centralised on the air conditioner remote control allowing total
control over air conditioning and ventilation via a simple configuration.
The current line-up includes models with DX coil and/or humidifier - the DX
coil helps prevent the direct impact of cold airflow upon personnel during
the heating cycle and vice versa. High static pressure enhances design
flexibility.
Components of Indoor Air Quality
New Features VKM unit
• Humidifier
• DX coil
• High static pressure
Line-up
Air flow rate (m
3
/h) 150 250 350 500 650 800 1000 1500 2000
VAM-FA
Ventilation
VKM-GM:
Ventilation, DX coil
& humidifier
VKM-G:
Ventilation & DX coil
Ventilation
Humidi-
fication
Airflow
HRV
375 EPCE05-44B UK artwork 26/6/06 12:25 pm Page 5
