• Split Sky Air • Indoor Units
5
• Indoor Units • R-410A • FTKS-FV1B

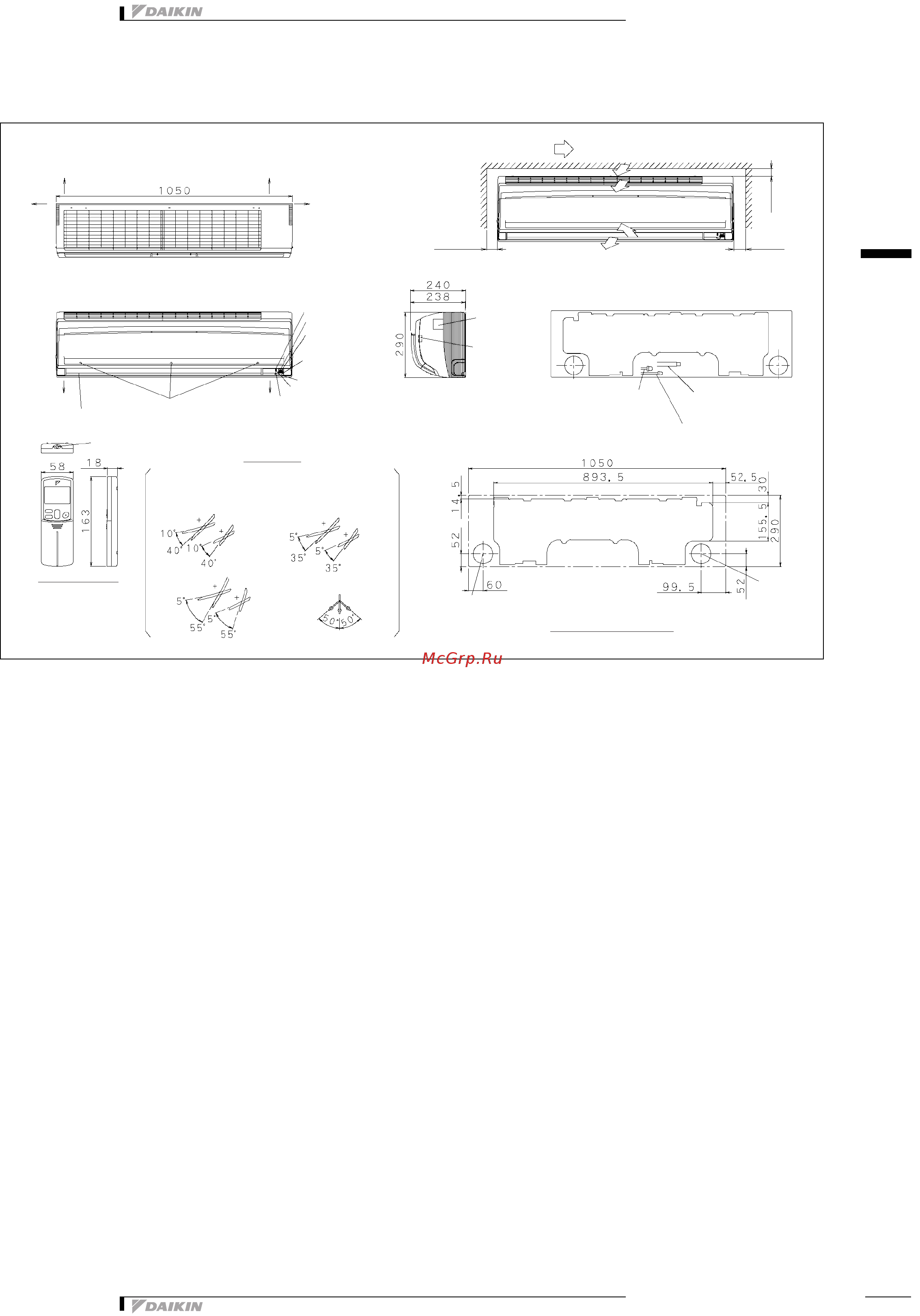

3 Dimensional drawing & centre of gravity
3 - 1 Dimensional drawing
3D055868
FTKS50-60F
unit (mm)
Left
Rear
Right
The mark (Y) shows piping direction
Signal receiver
Flaps
Front grille fixing screws
(inside)
Timer lamp
Operation lamp
Signal
transmitter
Infrared remote control
Horizontal blade
(Automatic)
Blade angles
Vertical blade (Automatic)
Air flow (indoor)
(for performance and maintenance)
(space for
maintenance)
(Including mounting plate)
Model name plate
Terminal block
with earth
terminal (inside)
(space for
performance)
(space for
maintenance)
Liquid pipe J6.4 CuT (the length of pipe outside
the unit: about 480)
Gas pipe 12.7Cut (The length of pipe
outside the unit: about 430)
Drain hose for VP13 (connecting part
I.D.14.0, O.D.18.0)
(The hose length on the outside of
the unit is approx. 530)
Wall hole for embedded piping
J 80 hole
Wall hole J
80 hole
Standard locations of wall holes
Cooling
Indoor unit ON/OFF
switch
Dry
Home leave lamp
Room temp.
thermistor (Inside)
(ARC433B71)
Intelligent eye sensor
50 Min.
50 Min.
30 Min.
Required space
Rear
Fan
