• Indoor Units • R-410A • FTKS-FV1B
5
• Split Sky Air • Indoor Units
8

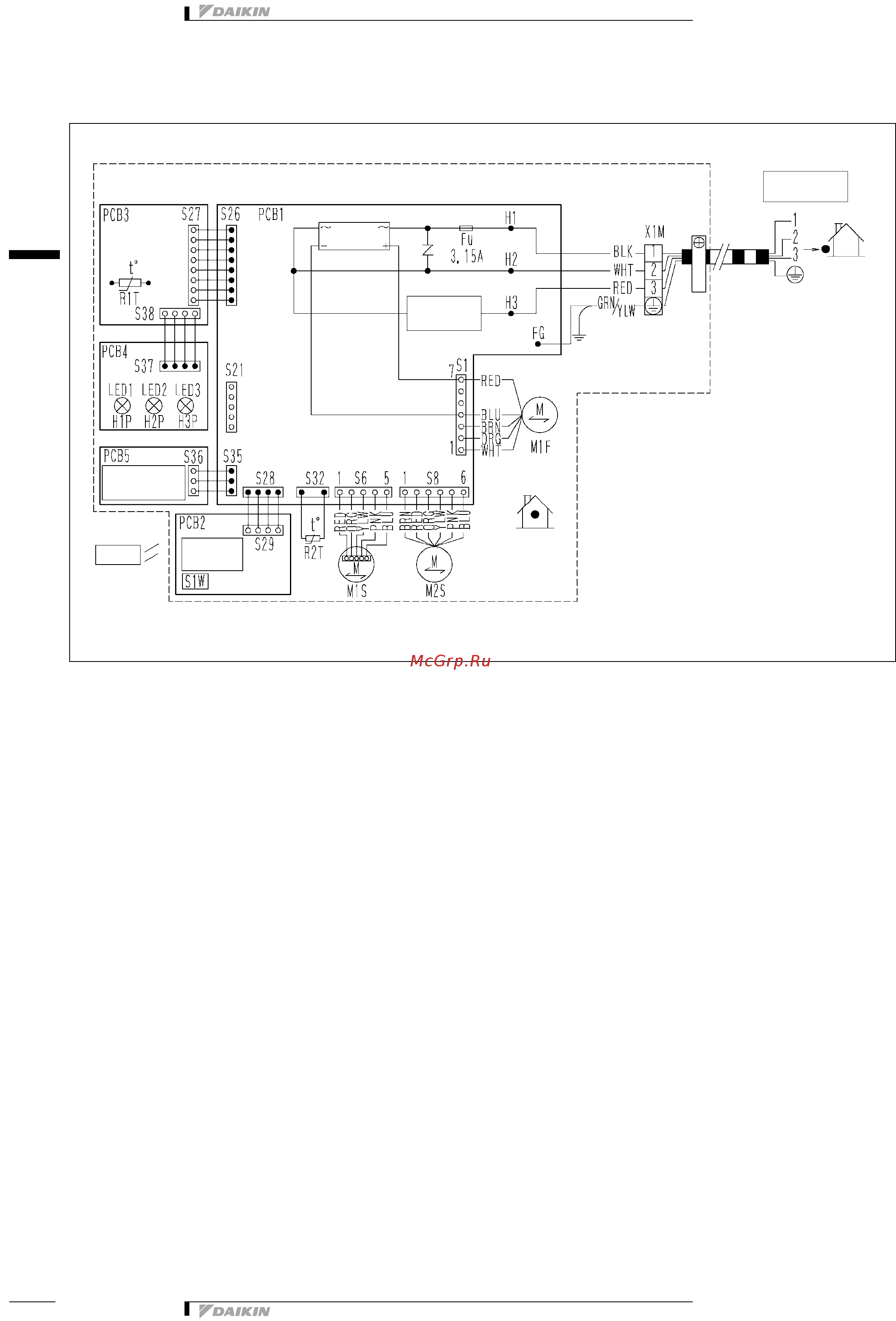

5 Wiring diagram
5 - 1 Wiring diagram
3D038530N
FTKS50-71F
g
Field wiring
Outdoor
Indoor
Infrared remote
control
R
: Protective earth
FG : Frame ground
FU : Fuse
H1∼H3 : Harness
H1P∼H3P : Pilot lamp
M1F : Fan motor
M1S,M2S : Swing motor
PCB1∼PCB5 : Printed circuit board
R1T,R2T : Thermistor
S1∼S38 : Connector
S1W : Operation switch
X1M : Terminal strip
Signal receiver
CAUTION
Note that operation will restart
automatically if the main power
supply is turned off and then back
on again.
Rectifier
Transmission circuit
Intelligent eye sensor
