14

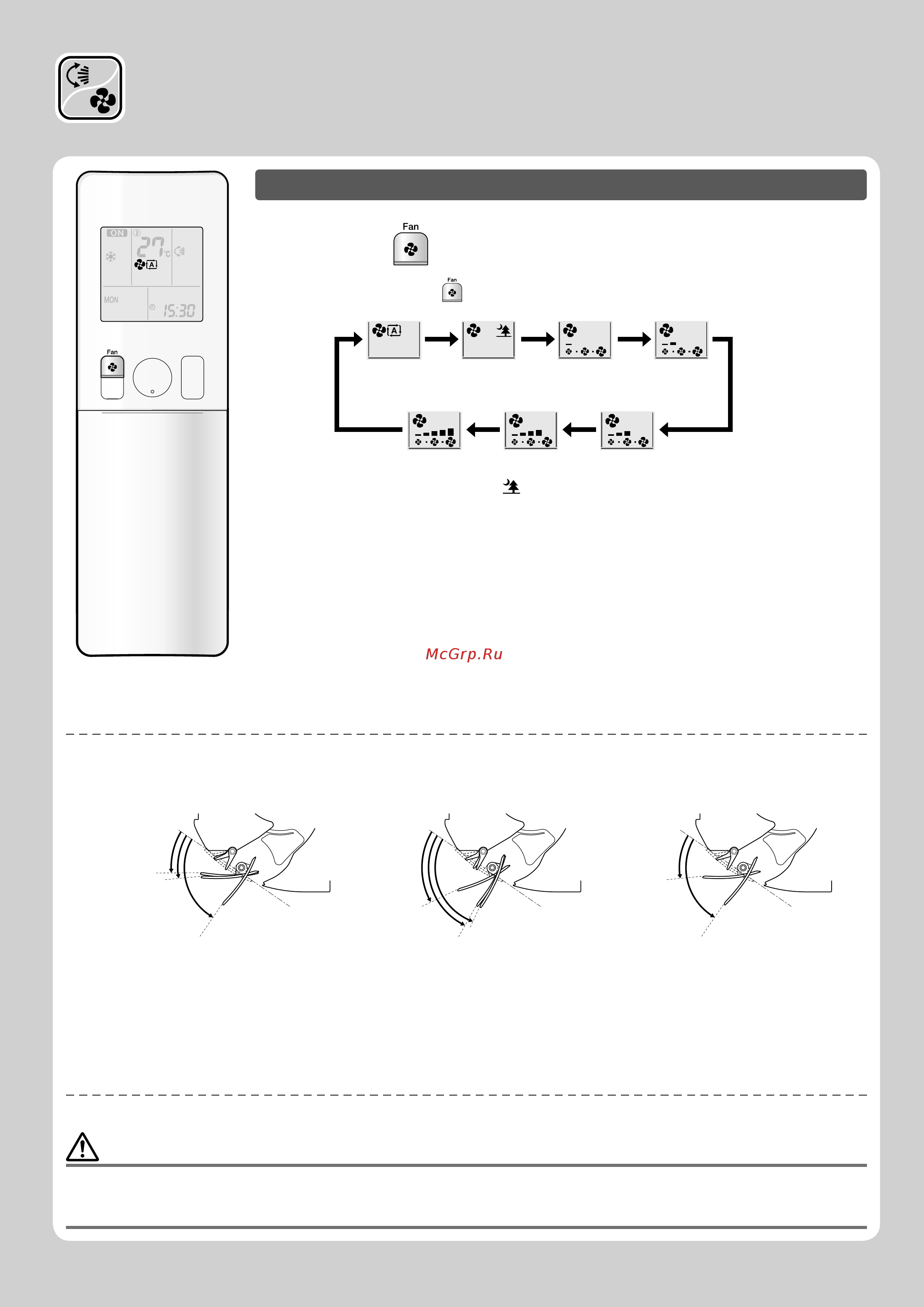

Adjusting the Airfl ow Direction
and Rate
■
To adjust the airfl ow rate setting
Press .
• Each pressing of advances the airfl ow rate setting in sequence.
Auto Indoor unit quiet Low Middle low
MiddleMiddle highHigh
• When the airfl ow is set to “ ”, indoor unit quiet operation will start and the noise
from the unit will become quieter.
• In indoor unit quiet operation, the airfl ow rate is set to a weak level.
• If the temperature does not reach the desired point, change the airfl ow rate setting.
• In DRY mode, the airfl ow rate setting is not variable.
NOTE
■
Notes on the angles of the fl aps
• The fl ap swinging range depends on the operation. (See the fi gure.)
COOL and
DRY operation
FAN operationHEAT operation
Upper limit
Lower limit
Stop operation Stop operation
Upper limit
Lower limit
COMFORT
AIRFLOW
COMFORT AIRFLOW
35°
60°
95°
100°
40°
90°
Upper limit
Lower limit
Stop operation
40°
90°
• In swing operation during cooling operation, the upper fl ap does not move. This is not malfunction.
When swing operation is stopped, the upper fl ap angle changes according to the lower fl ap angle.
■
Note on the angles of the fl aps
• Using 3-D airfl ow circulates cold air, which tends to collect at the bottom of the room, and hot air, which tends to collect near the ceiling,
throughout the room, preventing areas of cold and hot developing.
■
Note on airfl ow rate setting
• At smaller airfl ow rates, the cooling (heating) effect is also smaller.
CAUTION
• Always use a remote controller to adjust the angles of the fl aps and louvers. If you attempt to move the fl aps and louvers forcibly with hand
when they are swinging, the mechanism may be broken.
• Always use a remote controller to adjust the louvers angles. Inside the air outlet, a fan is rotating at a high speed.
