Display
5
Name of Parts

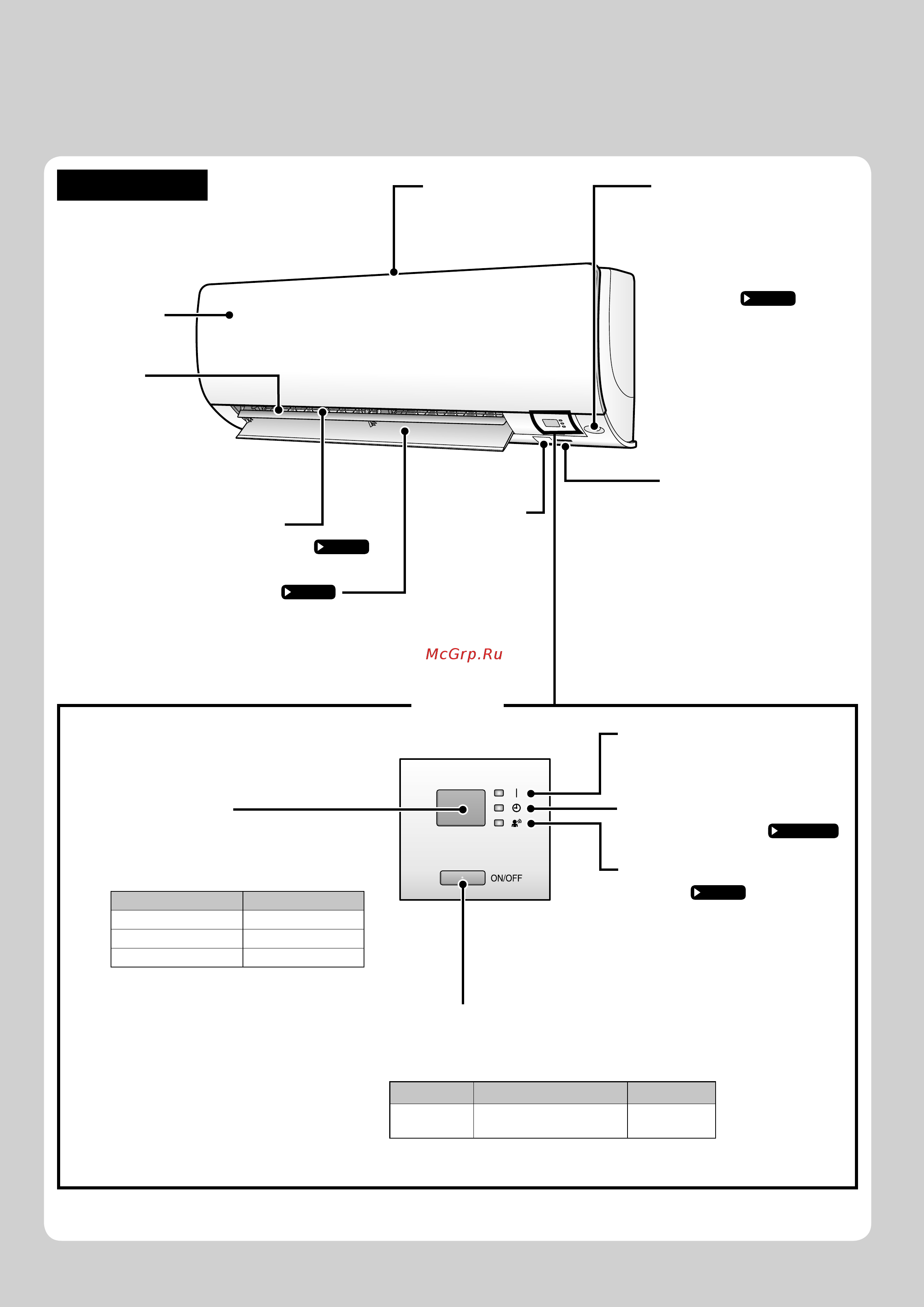

Indoor Unit
Air inlet
Front panel
Air outlet
Louvers (vertical blades)
• The louvers are inside of the air outlet.
Page 13
INTELLIGENT EYE
sensor
• It detects the movements of
people and automatically
switches between normal
operation and energy saving
operation.
Page 15
Flaps (horizontal blades)
Page 13
INTELLIGENT EYE lamp
(green)
Page 16
Signal receiver
• It receives signals from the remote
controller.
• When the unit receives a signal, you will
hear a beep sound.
Case Sound type
Operation start beep-beep
Setting changed beep
Operation stop long beep
Indoor unit ON/OFF switch
• Press this switch once to start operation.
Press once again to stop it.
• For the operation mode setting, refer to the following table.
Mode Temperature setting Airfl ow rate
AUTO 25°C AUTO
• This switch can be used when the remote controller is missing.
Model name
plate
Room temperature
sensor
• It detects the air temperature
around the unit.
TIMER lamp (yellow)
Page 21,22
OPERATION lamp
(green)
