• Indoor Units • R410A • FLKS-BAVMB
8
• Split Sky Air • Indoor Units
12
8 Sound data

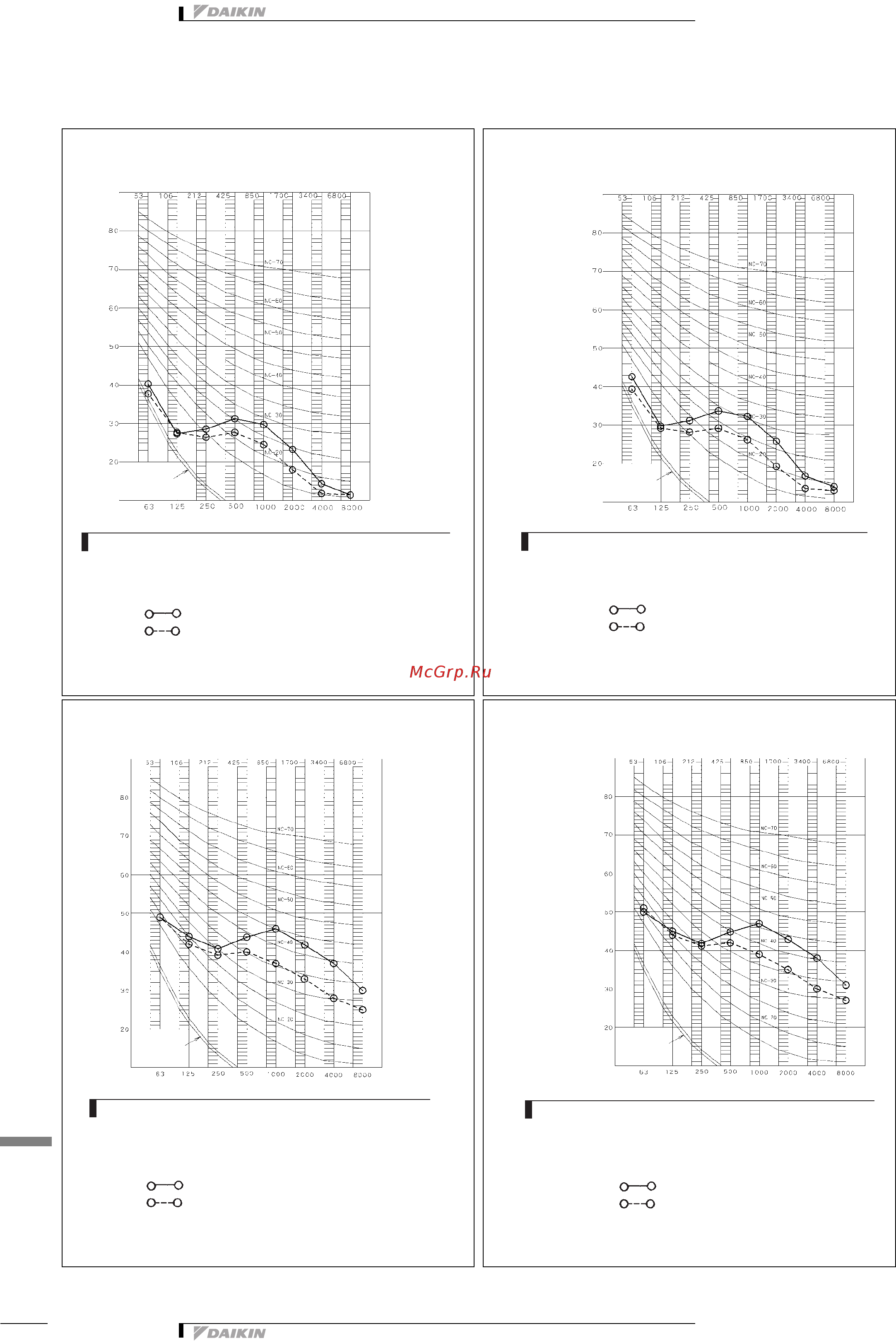

8 - 2 Sound pressure spectrum
4D035260A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLKS25B
approximate threshold
hearing for continuous
noise
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035261A
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
Octave band center frequency (Hz)
FLKS35B
approximate threshold
hearing for continuous
noise
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035262A
FLKS50B
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate threshold
hearing for continuous
noise
Octave band center frequency (Hz)
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
4D035263A
FLKS60B
Octave band sound pressure level
dB:(0dB = 0.0002 µ bar)
approximate threshold
hearing for continuous
noise
Octave band center frequency (Hz)
Legend
50/60Hz 220-240/220-230V(H)
50/60Hz 220-240/220-230V(L)
NOTE
1 Operation noise differs with operation and ambient
conditions.
