• Split Sky Air • Indoor Units
13
• Indoor Units • R410A • FLKS-BAVMB

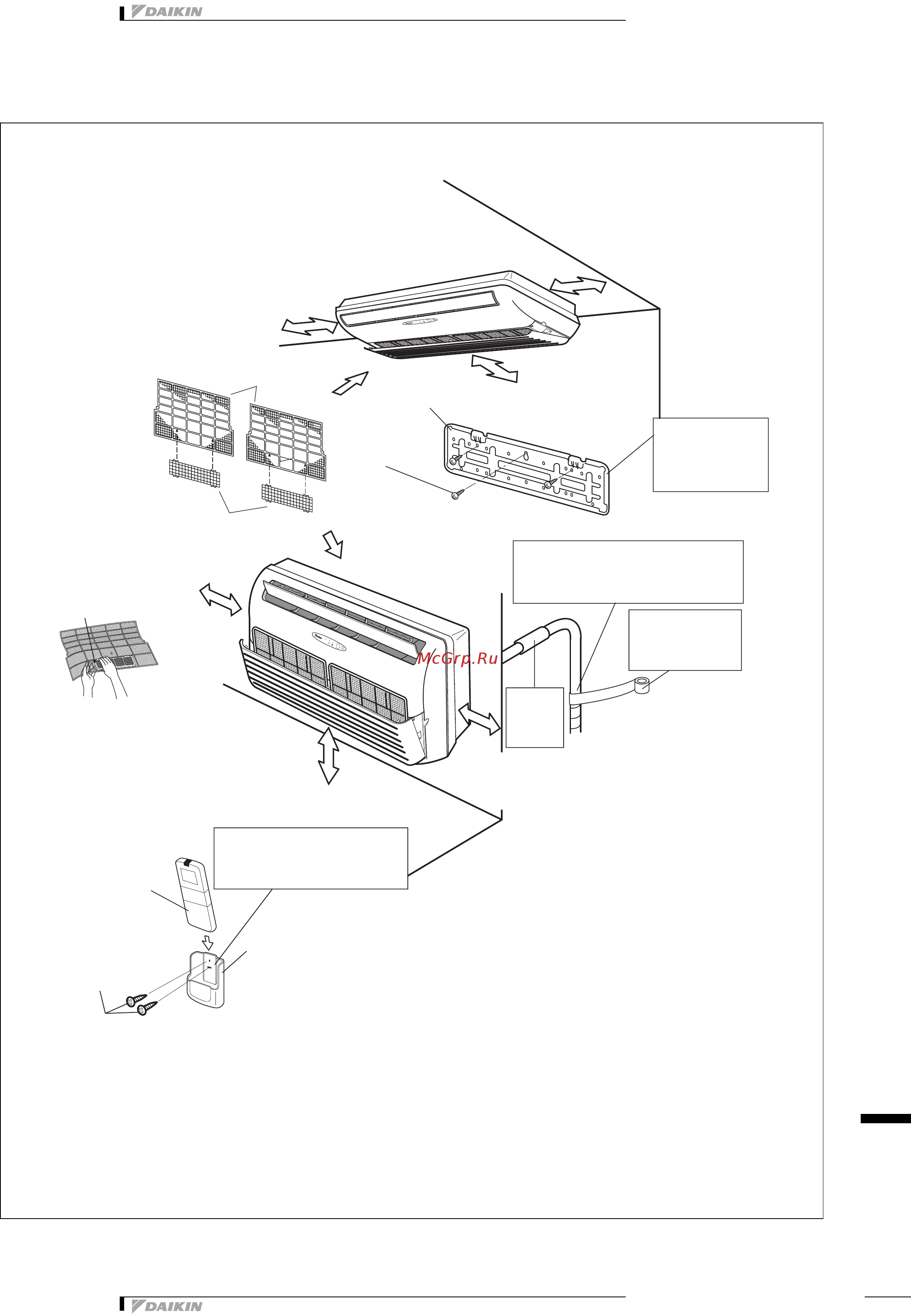

9 Installation
9 - 1 Installation method
j
A
Mounting plate
The mounting plate
should be installed on a
wall which can support
the weight of the indoor
unit.
Caulk pipe hole
gap with putty.
Cut thermal insulation pipe to an appropriate length
and wrap it with tape, making sure that no gap is left in
the insulation pipe’s cut line.
Wrap the installation pipe
with the finishing tape
from bottom to top
j
B
Photocatalytic deodorising filter
j
C
Air purification filter
j
D
Infrared remote control
Before screwing the remote control holder to
the wall, make sure that control signals are
properly received by indoor unit.
Space for
installation work.
Min. (200mm)
Air filters
j
E
Remote
control holder
There should be no space between
ceiling and the unit.
Space for installation work. Min.
(200mm)
Space for installation work.
Min. (200mm)
50 mm or more from walls (on
both side)
j
B
Photocatalytic deodorising filter
j
C
Air purification filter
Space for installation
work. Min. (200mm)
50 mm or more from floor
Hold the recessed parts of the
frame and unhook the four
claws.
M4 x 25L
(M3x20L)
