• Indoor Units • R410A • FLKS-BAVMB
9
• Split Sky Air • Indoor Units
14

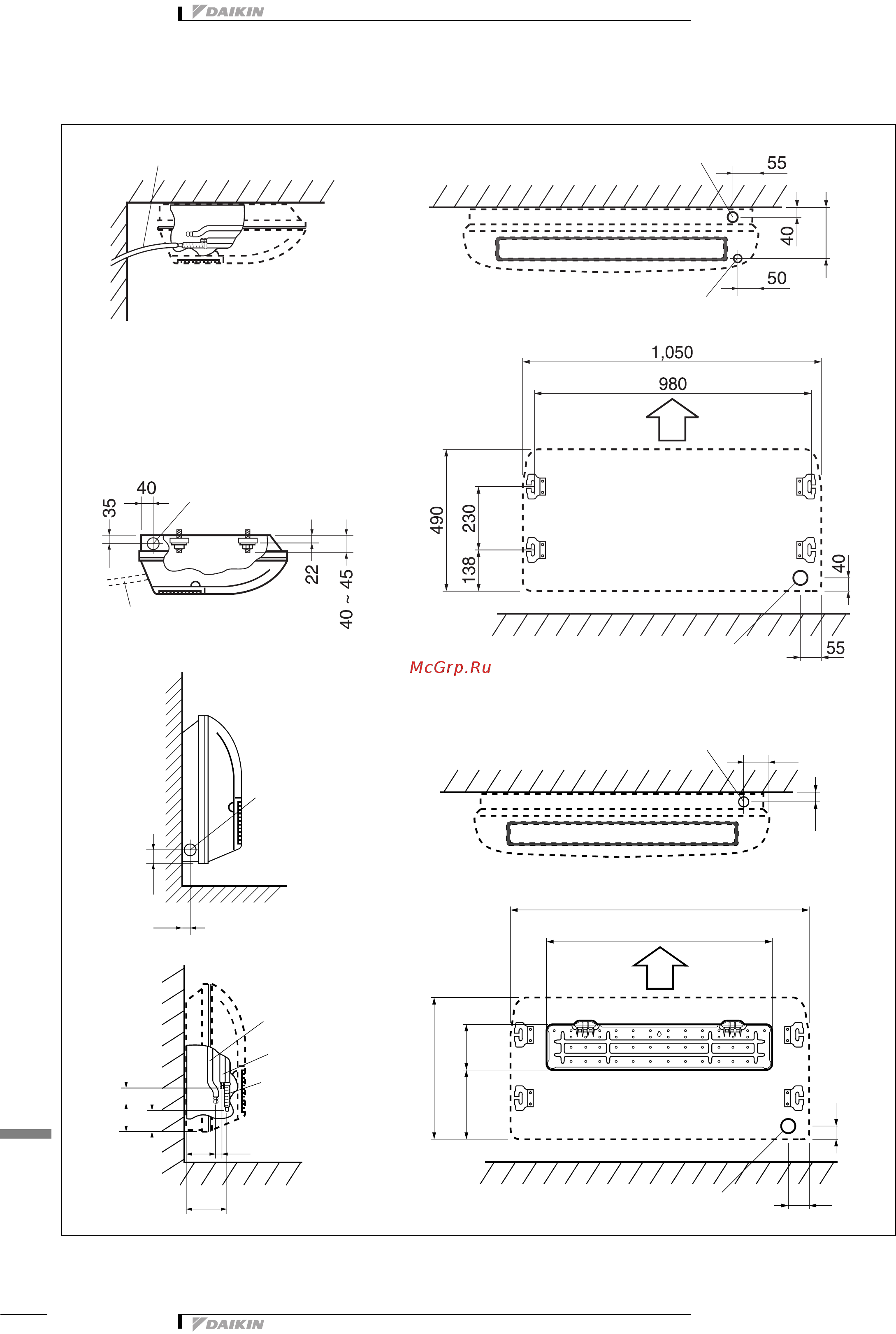

9 Installation
9 - 1 Installation method
Ceiling mounting
Wall mounting
Top side piping hole J65 mm
Local drain pipe
Rear side piping hole J65 mm
Ceiling
Right side piping hole J65 mm
Rear side drain hose hole J40 mm
Ceiling
Drain hose
Wall
Right side piping hole J80 mm
Wall
Wall
Liquid pipe
Floor
Gas pipe
Floor
Drain pipe
Wall
*1 Determine the position of the feed-through
hole so that the local piping is placed in a
downward sloping direction.
*1 More than 170
35
40
40
55
30
97 48
102
26
150
Wall
55
40
1,050
800
162255
490
Floor
Rear side piping hole J80 mm
Connection position
Under side piping hole J80 mm
Wall
