Содержание
- Manual st50fp st40f p st35f p 封面 1
- Strider plus 1
- Unparalleled combination of power efficiency and flexibility 1
- Atx12v eps 12v switching power supply with active pfc ps 2 2
- General requirements 2
- Input requirements 2
- Manual st50fp st40f p st35f p 1 2
- Silverstone strider plus st50f p st40f p st35f p 2
- 1 3 v 5v total output not exceed 120w when 5v is load to 20a the 3 v maximum load is 6a when 3 v is load to 24a the 5v maximum load is 8a 2 all outputs shall be safety isolated from the ac mains and share a common return this common return must be connected to supply chassis 3 voltages and ripple are measured at the load side of mating connectors with a 0 uf monolithic ceramic capacitor paralleled by a 10uf electrolytic capacitor across the measuring terminals 3
- Load regulation characteristics 3
- Manual st50fp st40f p st35f p 2 3
- Output requirements 3
- Output voltage and current 3
- St50f p 3
- 1 3 v 5v total output not exceed 120w when 5v is load to 15a the 3 v maximum load is 13 a when 3 v is load to 24a the 5v maximum load is 8a 2 all outputs shall be safety isolated from the ac mains and share a common return this common return must be connected to supply chassis 3 voltages and ripple are measured at the load side of mating connectors with a 0 uf monolithic ceramic capacitor paralleled by a 10uf electrolytic capacitor across the measuring terminals 4
- Load regulation characteristics 4
- Manual st50fp st40f p st35f p 3 4
- St40f p 4
- 1 3 v 5v total output not exceed 103w when 5v is load to 15a the 3 v maximum load is 8 8a when 3 v is load to 21a the 5v maximum load is 6 4a 2 all outputs shall be safety isolated from the ac mains and share a common return this common return must be connected to supply chassis 4 voltages and ripple are measured at the load side of mating connectors with a 0 uf monolithic ceramic capacitor paralleled by a 10uf electrolytic capacitor across the measuring terminals 5
- Load regulation characteristics 5
- Manual st50fp st40f p st35f p 4 5
- St35f p 5
- Manual st50fp st40f p st35f p 5 6
- Operation at no load 6
- Output voltage hold up time 6
- Protection 6
- Remote on off control 6
- St40f p 6
- St50f p 6
- An o p short circuit is defined as any o p impedance of less then 0 ohms the power supply shall shutdown and latch off for shorting 3 v 5v or 12v rail to return or any other rail and 5vsb shall not cause any damage to the power supply the power supply shall either shutdown and latch off or fold back for shorting negative rail 5vsb must be capable of being shorted indefinitely but when the short is removed the power supply shall recover a utomatically or by cycling ps_on the power supply shall be capable withstanding a continuous short circuit to the o p without damage or overstress to the unit for example to components pcb traces connectors under the i p conditions specified 7
- Manual st50fp st40f p st35f p 6 7
- No output voltage shall overshoot undershoot or generate spikes at turn on or turn off during momentary power loss output short or realistic input voltage or output load hanges overshoot undershoot is defined as any output that exceeds the voltage tolerance plus or minus an additional 5 all outputs shall be measured with minimum load cond 7
- Output overshoot undershoot 7
- Output risetime 7
- Short current protection 7
- St35f p 7
- The cold start enable main output voltage rise time of all outputs shall be measured with maximum load on all outputs with cond 1 rise time 3 v 20ms maximum 10 90 5v 20ms maximum 12 v 20ms maximum 12 v 20ms maximum the test condition 115vac 60hz 7
- Adding external capactor 8
- Efficiency requirement of main output 8
- Efficiency requirement of standby output 8
- Expected output transient step sizes for each output the transient load slew rate is 1 a µs 8
- Input power has to be under 1w when output current is set up at 100ma and input voltage is set up at 115vac 60hz both condition remote off ps_on high state 8
- Manual st50fp st40f p st35f p 7 8
- Output transient response 8
- Power good signal time sequence 8
- Table of dc output transient step sizes 8
- The psu should be a minimum of 82 efficiency under 100 of full load and 50 of full load and 20 of full load in a light load or ideal condition that should be tested at nominal input voltage is 115v 60hz and oad conditions defined in below table 8
- Altitude 9
- Capacitive load 9
- Closed loop stability 9
- Humidity 9
- Manual st50fp st40f p st35f p 8 9
- Physical environment 9
- Temperature 9
- The power supply shall be unconditionally stable under all line load transient load conditions including capacitive loads specified in section 3 3 a minimum of 45 degrees phase margin and 10 db gain margin is recommended at both the maximum and minimum loads 9
- Connectors 10
- Input connections 10
- M b 24pin connector 10
- Manual st50fp st40f p st35f p 9 10
- Mechanical requirements 10
- Mm w 86 mm h 140mm d 10
- Other requirements 10
- Physical dimension 10
- Refer to mechanical specifications for placement the ac mains input are through a three circuit iec type connector mounted on the rear of the power supply chassis 10
- Reliability 10
- The power supply reliability when calculated by bellcore latest revision are exceed 100 000 hours with all output at maximum load and an ambient temperature of 25c the special requirement is for cooling fan that mttf be guarantee over 30 000 hours at 25c ambient temperature 10
- Atx 12v 4pin 4 4pin eps 12v in split mode 11
- Eps 12v 8pin connector 11
- Manual st50fp st40f p st35f p 10 11
- Pin pci express connector 11
- Pin peripheral connector hdd 4pin floppy connector fdd 11
- Sata connector 11

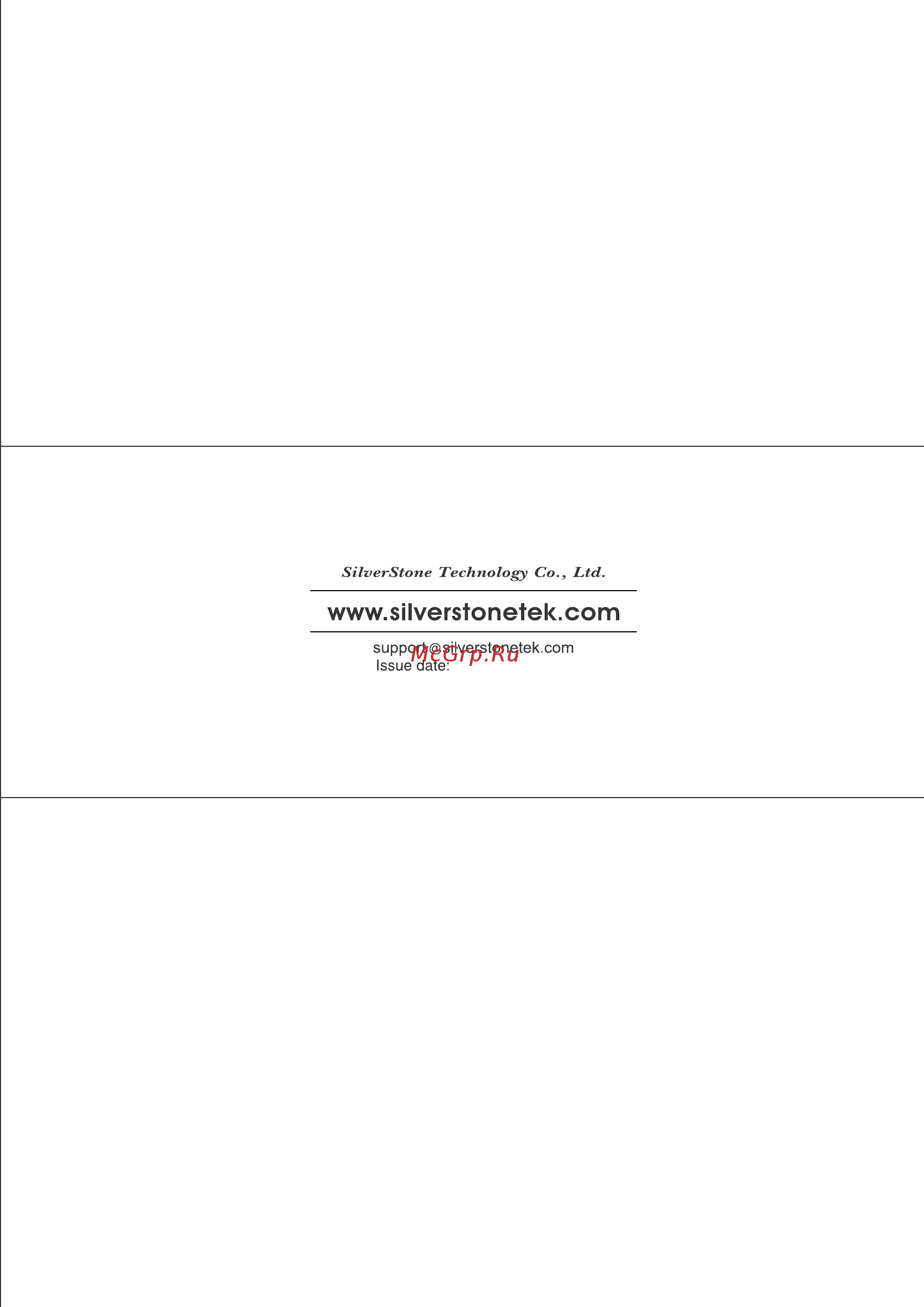

- Manual st50fp st40f p st35f p 封底 12
- No g1121 12
