SilverStone ST75F-G [5/6] Strider gold series
![SilverStone ST75F-G [5/6] Strider gold series](/views2/1720129/page5/bg5.png)
07
4. TIMING

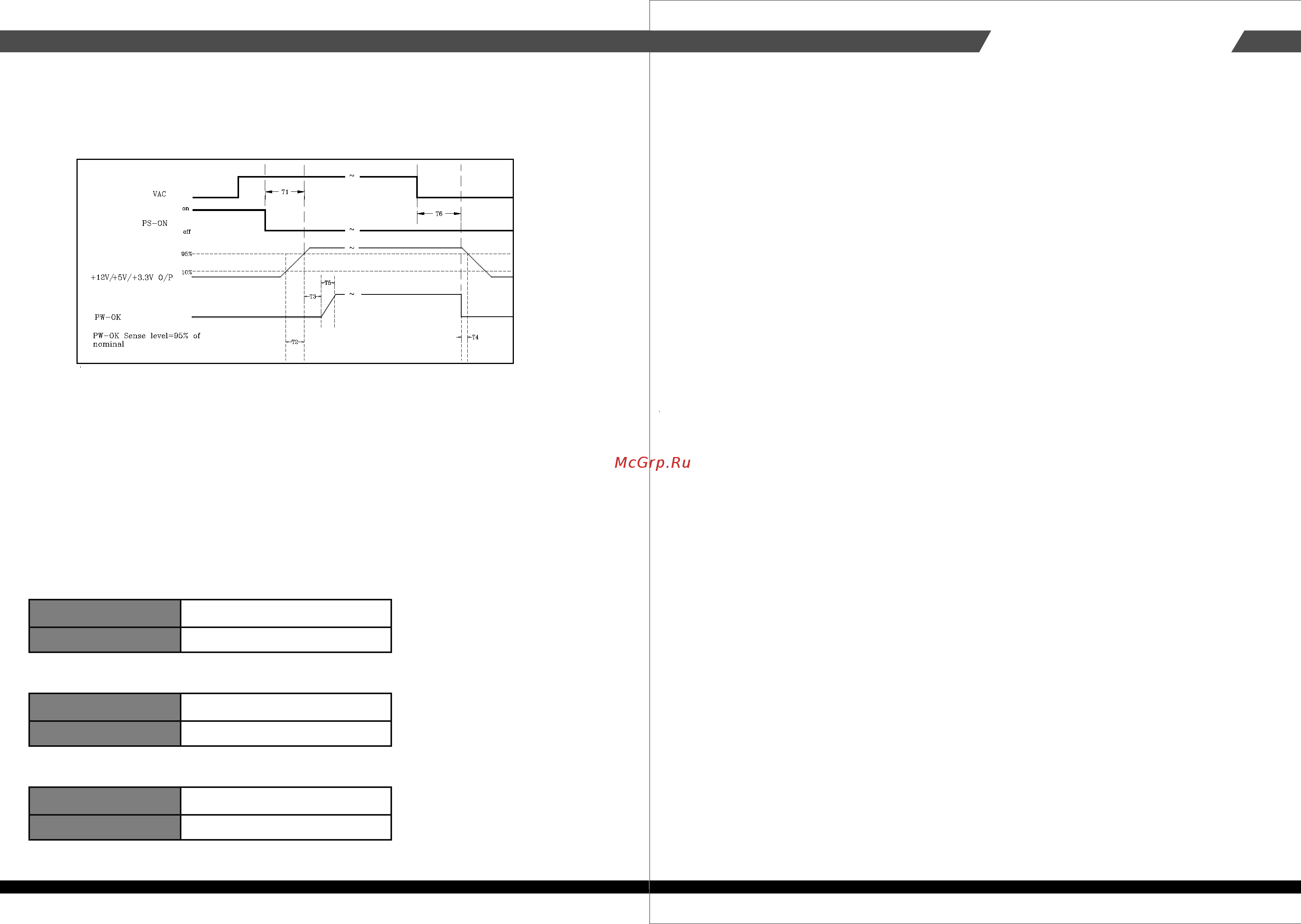

Figure 2. is a reference for signal timing for main power connector signals and rails.
(1) T3: Power good signal turn on delay time (100ms~500ms)
(2) T4: Power good signal turn off delay time (1ms min)
(3) T2: Rise time (0.1~70ms)
(4) T6: Hold up time (17ms min) Tested at 75% of maximum load at 100-240VAC input.
4.1 Signal timing drawing
5. ENVIRONMENT
5.1 Operation
When the power loss its input power, it shall maintain 17ms in regulation limit at normal
input voltage. (AC: 115V/60Hz or 230V/50Hz)
4.2 Hold up time
Temperature
Relative Humidity
0 C to 40 C
10% to 90%, non-condensing
OO
5.2 Shipping and Storage
Temperature
Relative Humidity
-20 C to 60 C
5% to 95%, non-condensing
OO
5.3 Altitude
Operating
Storage
10,000FT max
50,000FT max
08
STRIDER GOLD SERIES
6. SAFETY
7. ELECTROMAGNETIC COMPATIBILITY (EMC)
8. MTBF
9. MECHANICAL REQUIREMENTS
The power supply designed to meet UL 1950.
If applicable to sales in Japan or Europe, the power supply shall meet the
requirements of EN 61000-3-2 class D and the guidelines for the suppression
of harmonics in appliances and general use equipment class D for harmonic
line current content at full-rated power.
6.1 Underwriters Laboratory (UL) recognition.
The demonstrated MTBF shall be 100,000 hours of continuous operation at
25 C, full load, and nominal line. The MTBF of the power supply be calculated
in accordance with MIL-HDBK-217F. The DC FAN is not included.
8.1 MTBF (mean time between failures) calculation
150 mm (W) × 86 mm (H) × 180mm (D)
9.1 Physical Dimension
7.1 IEC 61000-4-2 ESD LEVEL X20KV4.
7.2 IEC 61000-4-3 radiated electrical field requirement.
7.3 IEC 61000-4-4 BURST .
7.4 IEC 61000-4-5 surge Voltages
7.5 EN61000-3-2 harmonic current emissions.
7.6 EN55024 class B radio interference (CISPR 22)
7.7 FCC part 15, subpart J class B 115VAC operation.
6.2 The power supply must bear the German Bauart Mark from TUV.
O
