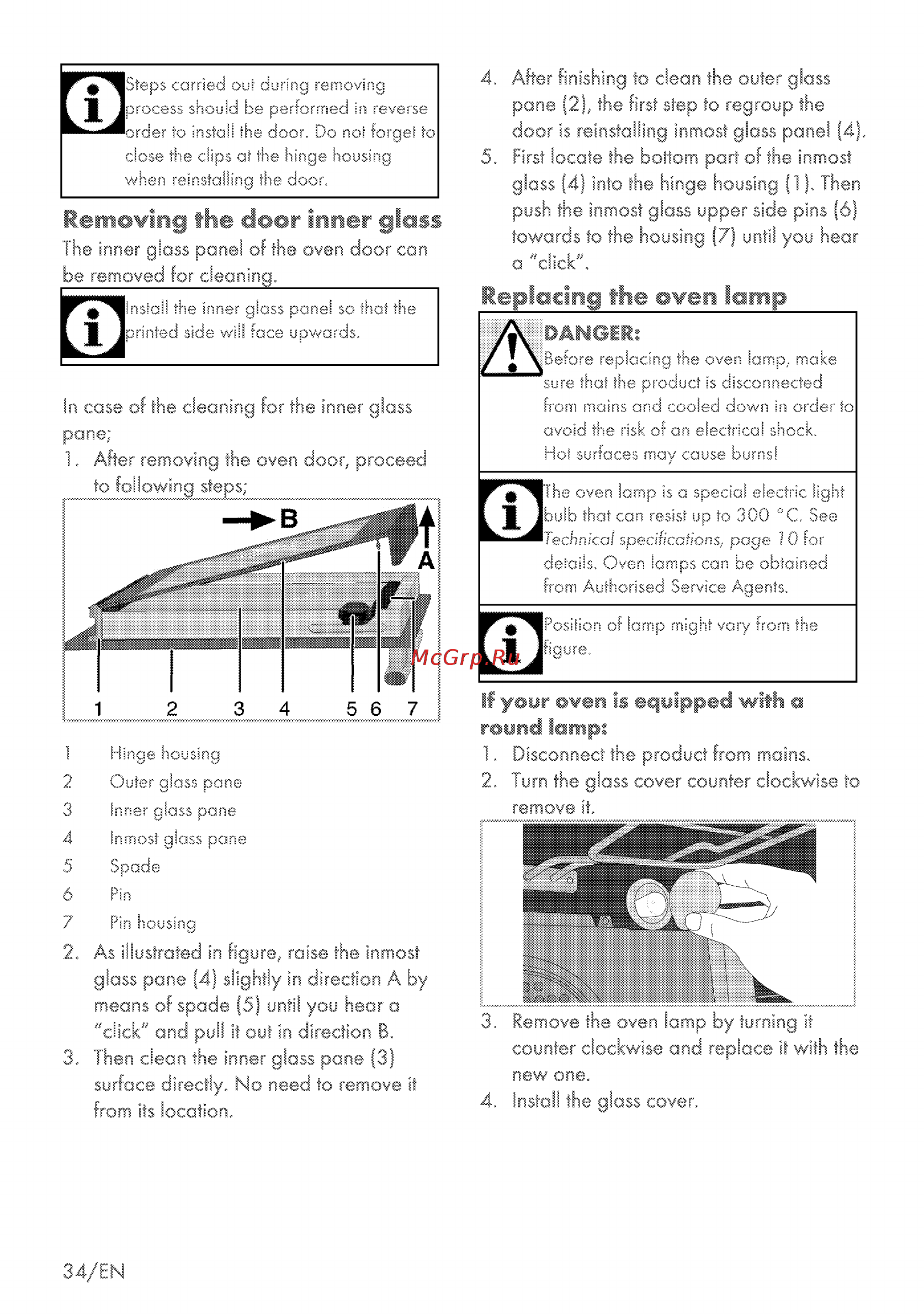

Steps carried out during removing I Jproccsr should be performed in reverse border to install ihe door Do noi forgei to dose the dips at the hinge housing when reinstalling the door Removing the door inner gtass Ths inner glass panel of th oven door con be removed for cleaning Install rhe inner glass panel so that the printed side will face upwards 4 After finishing to clean the outer glass pane 2 the first step to regroup the door is reinstalling inmost glass panel 4 5 First locate the bottom part of the inmost glass 4 Ato the hinge housing 1 Then push the inmost glass upper side pins 6 towards to the housing 7 until you hear a dlckA Replacing the oven lamp DANGER Before replacing the oven lamp make sure that the product is disconnected from mains and cooled down in order to avoid the risk of an electrical shock Hoi surfaces mav cause bums fa case of th cleaning for the inner glass pone 1 After removing the oven door proceed to following steps 1 2 1 Hinge housing 2 Outer glass pane 3 inner glass pane 3 4 inmost gloss pane 5 Spade 6 Pin 7 Pin housing 4 567 2 As illustrated in figure raise the inmost glass pane 4 slightly in direction A by means of spade 5 until you hear o click end pull it out in direction B 3 Then chan the inner glass pan 3 surface directly Na need to remove it from Rs location 34 EN The oven lamp is a special electric light bulb that can resist up to 300 C See Technical spmncaRons poge 10 for derails Oven lamps con be obtained from Authorised Service Agents E Position of lamp might vary from the figure If yaw awn is equipped with a mend iamp 1 Disconnect th product from mains 2 Turn the glass cover counter clockwise to 3 Remove the oven lamp by turning It counter clockwise and replace it with the new one 4 Install the glass caver
