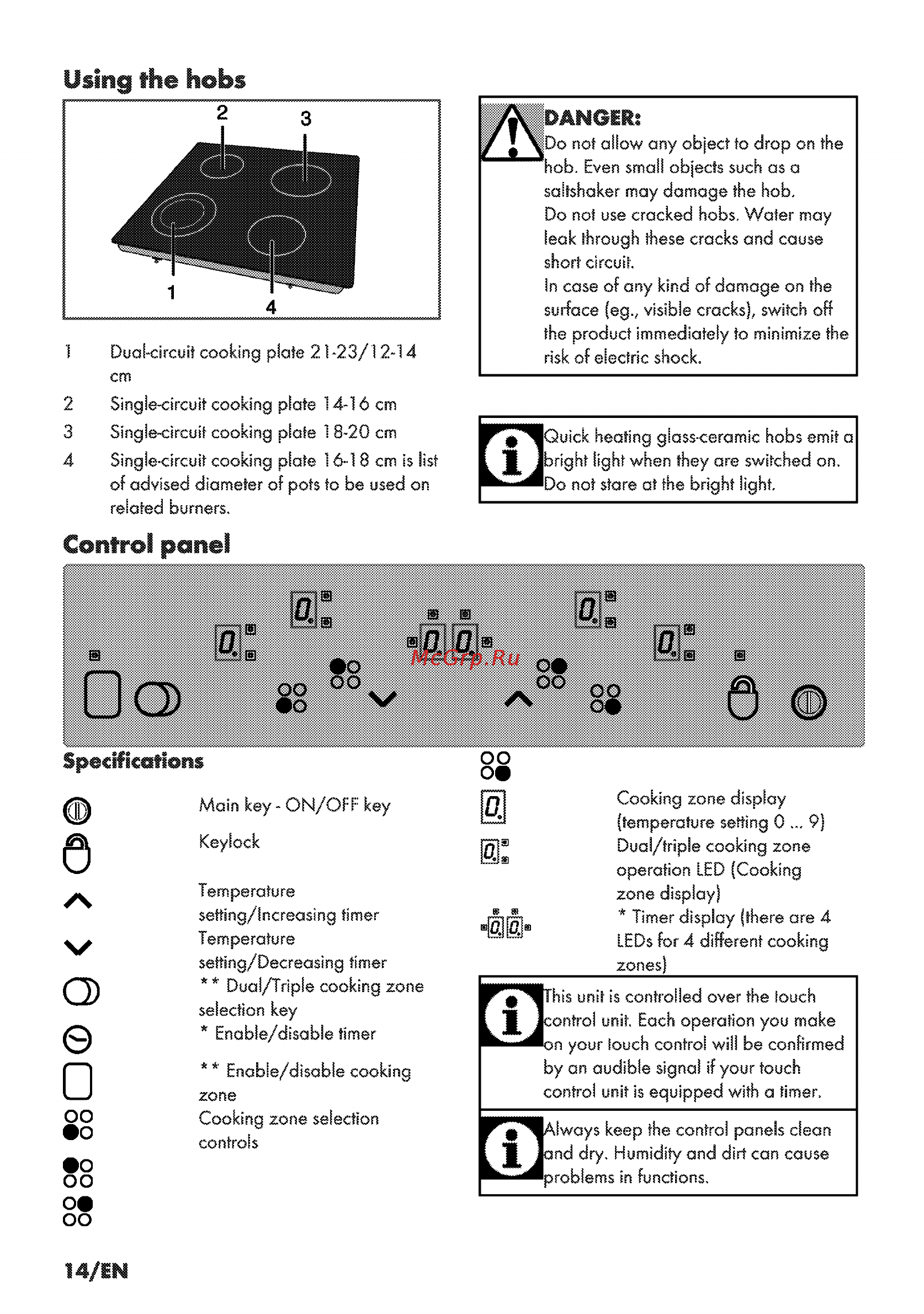

Using the hobs Do not allow any object to drop on the hob Even small objects such as a saltshaker may damage the hob Do not use cracked hobs Water may leak through these cracks and cause short circuit In case of any kind of damage on the surface eg z visible cracks switch off the product immediately to minimize the risk of electric shock 1 Dual circuit cooking plate 21 23 12 14 cm 2 Single circuit cooking plate14 16 cm 3 Single circuit cooking plate1 8 20 cm 4 Single circuit cooking plate 16 18 cmis list of advised diameter of pots to be used on related burners Quick heating glass ceramic hobs emit a bright light when they are switched on Da not stare at the bright light Control panel OO Specifications oo Main key ON OFF key Keylock Temperature setting lncreasing timer Temperature setting Decreasing timer Dual Triple cooking zone selection key Enable disable timer oo o o oo oo oo 14 EN Enable disable cooking zone Cooking zone selection controls B K 8 Cooking zone display temperature setting 0 9 Dual triple cooking zone operation LED Cooking zone display Timer display there are 4 LEDs for 4 different cooking zones II Blhis unit is controlled over the iouch jcontrol unit Each operation you make on your Iouch control will be confirmed by an audible signal if your touch control unit is equipped with a timer II AIways keep the control panels clean land dry Humidity and dirt can cause problems in functions
