17
ENGLISH

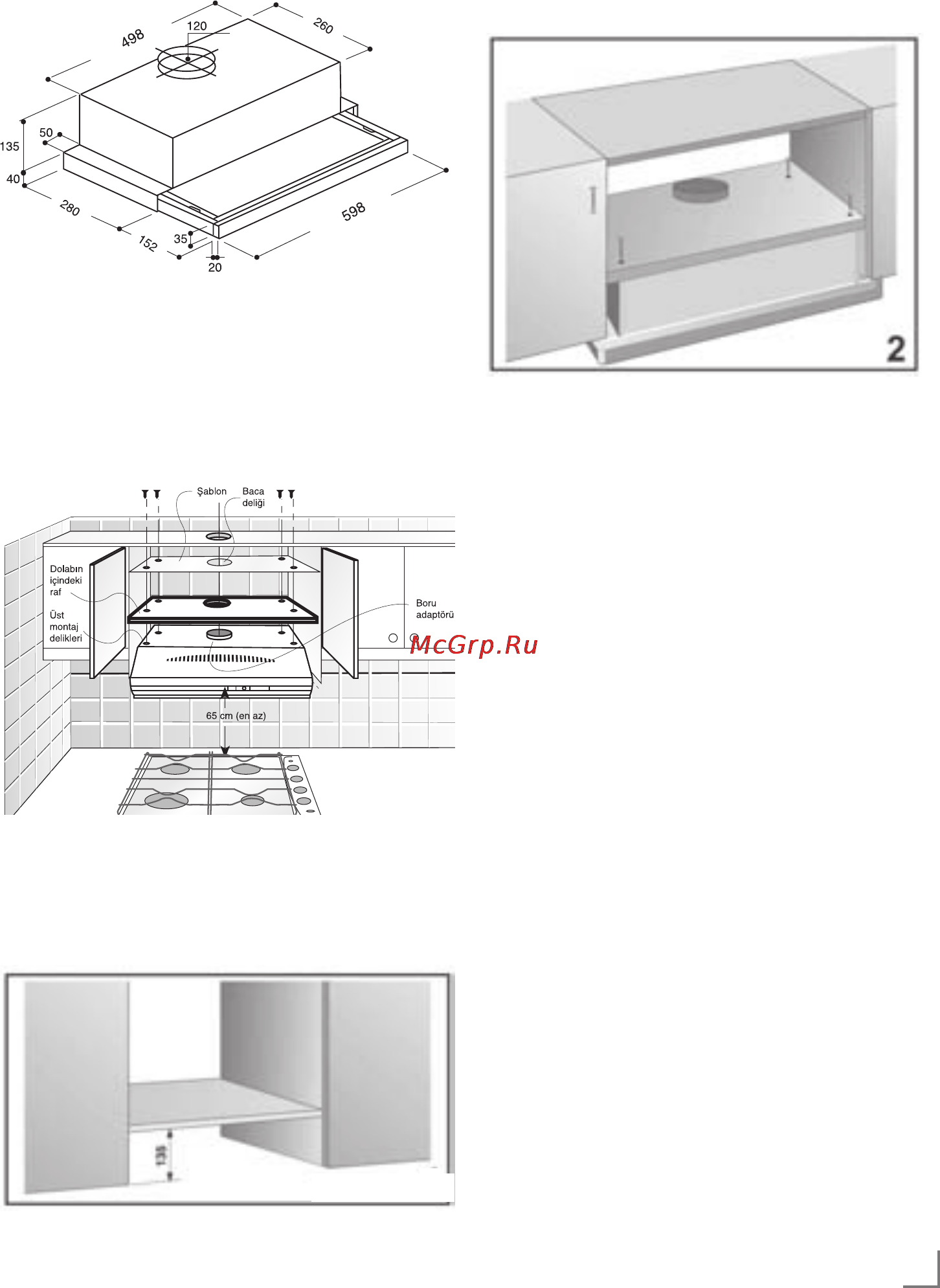

Product dimensions required for the installation
of your hood is given in mm in the figure below.
Installation of your hood
You may install your hood on your kitchen fur-
niture from the top or the sides.
The height between the lower surface of the
hood and upper surface of the oven/hob
should not be less than 65 cm.
Installation from top
The base of the cupboard that the hood shall
be installed must be 135 mm over the cook
tops as shown in (Figure 1).
Place your hood as shown in Figure 2.
Secure it to the base of the cupboard with a
4.2 x 44.5 mm screw.
If the installation holes are not drilled on the
base of the cupboard, hood is placed on its
housing and secured on the base of the cup-
board with 3.5 x 16mm screws inside the
body.
Note:
7
Front face of your hood shall be aligned
with the front face of the cupboard.
INSTALLATION _____________________________________
(Figure 1)
