18 ENGLISH
INSTALLATION _____________________________________
Installation from sides
(Optional):
In this connection method, the base of the
cupboard is level with the bases of other cup-
boards.
Installation:

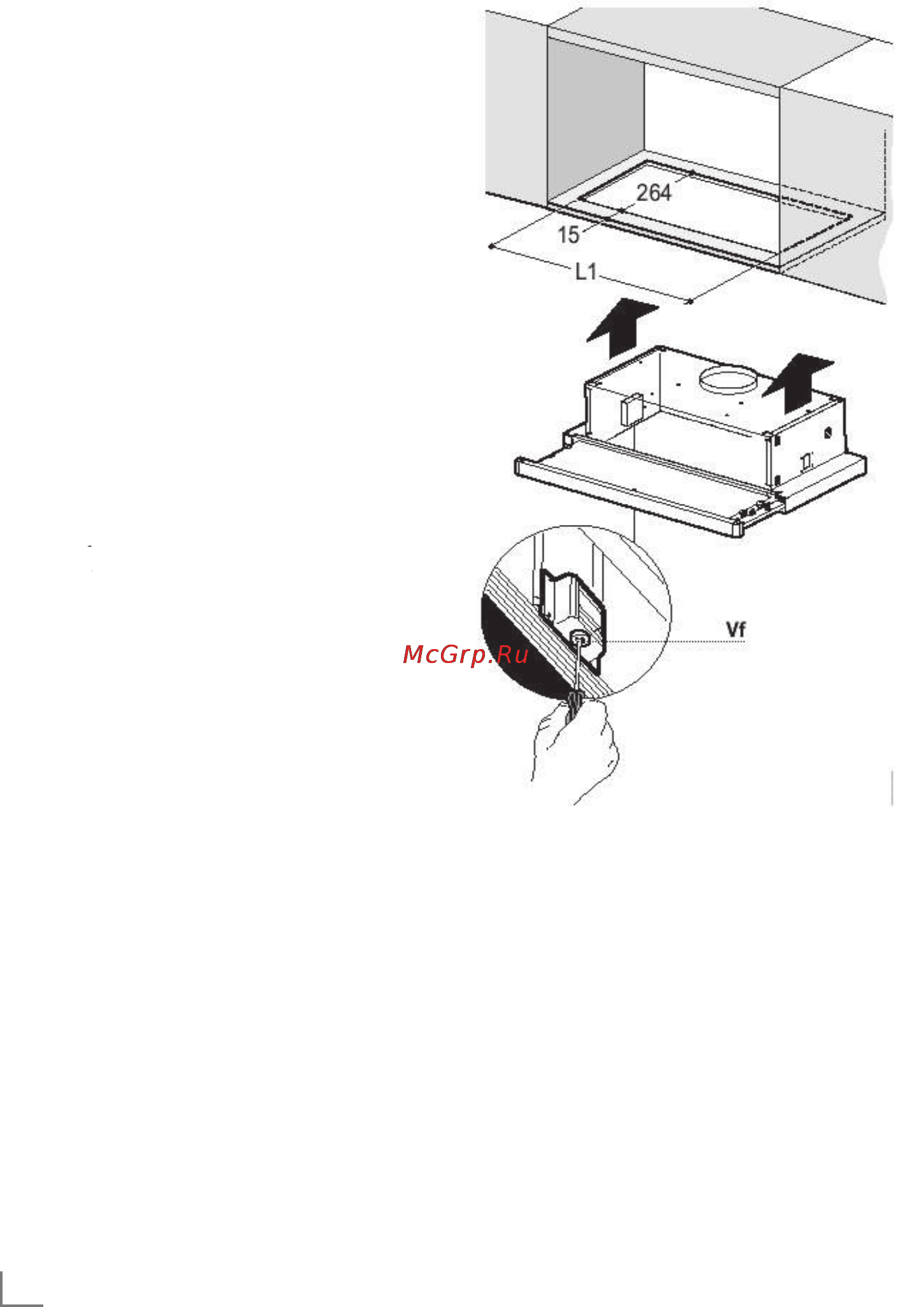

Mark and cut the area on the cupboard base
that shall be removed as per the dimensions
given in Figure 3.
Remove the protrusions on both sides of the
hood body. Install the wing screws from the
inside of the body. Place the upper side of the
hood inside the furniture from the base of the
cupboard. Ensure that the wing screws are
loosened; otherwise the hood shall not fit into
its seating.
(Figure 4)
Pull the sliding part forwards, remove the fil-
ters and tighten the wing screws to secure the
hood on the base of the cupboard (Figure 5).
Screws shall be fully tightened clockwise.
Note:
7
You may procure the wing screws from the
authorized dealers when it is required to
install the hood with wing screws from the
sides.
(Șekil 4)
(Șekil 3)
(Figure 3)
(Figure 4)
(Figure 5)
